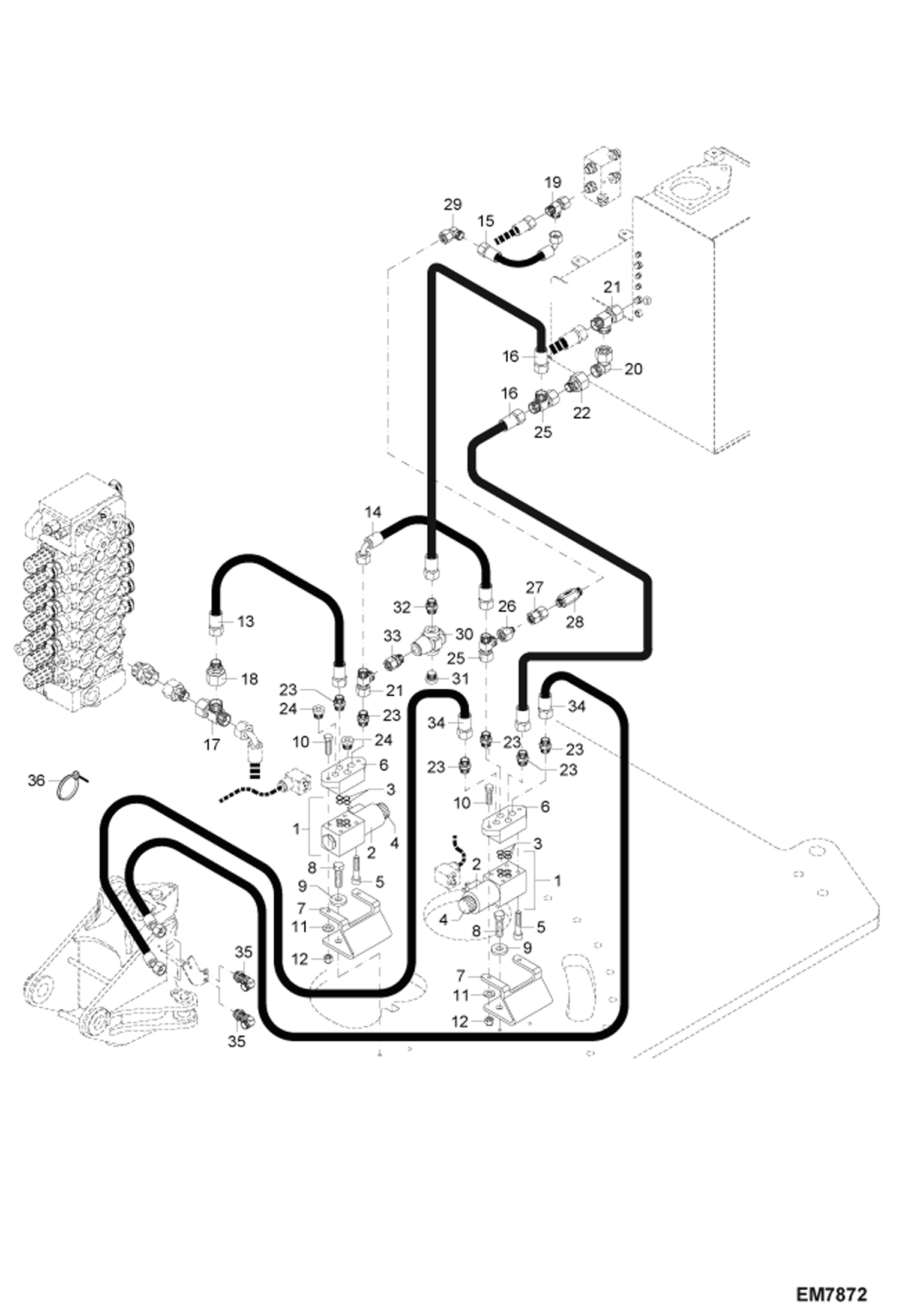

Запчасти Bobcat 442 HYDRAULIC QUICK MOUNT HITCH HS08 - PART 1 (Circular Boom) HYDRAULIC SYSTEM

1

5003700013

DIRECT CONTR VALVE W/Ref. 2-4

2

5003700025

COIL

3

5003700026

NUT W/SEAL

4

5003700027

SEAL KIT

5

1045907011

BOLT

6

5003700003

CONNECTING PLATE

7

0209248026

VALVE BRACKET

8

1008707018

BOLT

9

1343707057

WASHER

10

1008707513

BOLT

11

1290707014

WASHER

12

1212251009

NUT

13

4158145240

HOSE

14

4158046351

HOSE

15

4506140371

HOSE

16

4158070240

HOSE

17

1919060355

FITTING

18

1934060162

FITTING

19

1919060351

FITTING

20

1924060153

FITTING serial number listed is the vendor serial number

21

1919060353

FITTING

22

1934060155

FITTING

23

1915060257

FITTING

24

1912060452

PLUG

25

1919060352

FITTING

26

1934060152

FITTING

27

1915060157

FITTING

28

1915991752

ONE-WAY VALVE

29

1924060151

FITTING

30

5050165400

VALVE, LIMITATION PRESSURE

31

1912060105

PLUG

32

1915060558

FITTING

33

1938060452

FITTING

34

4158215366

HOSE

35

1931060152

FITTING

36

5653093560

BINDER
