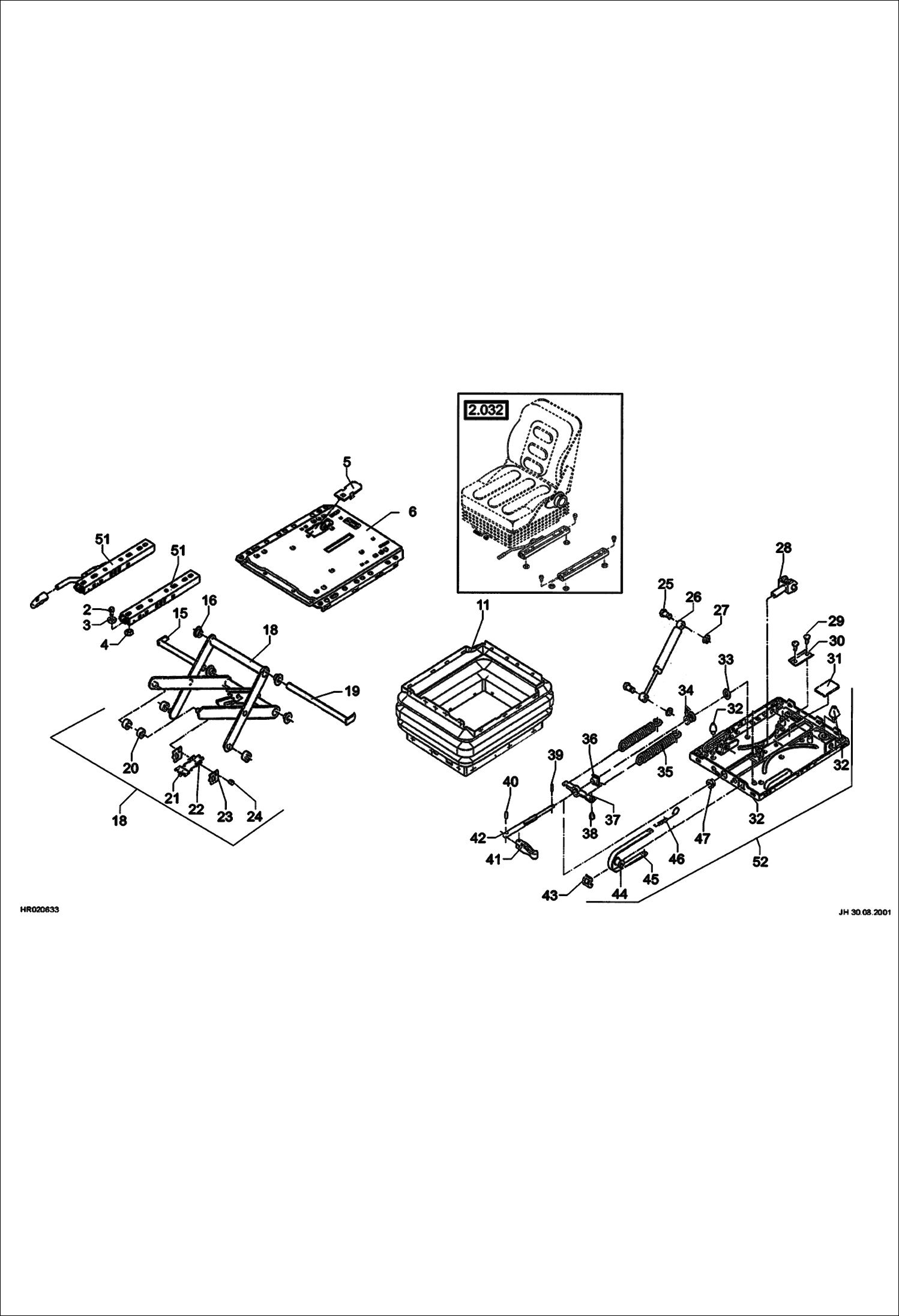

Запчасти Bobcat 442 OPERATORS SEAT - SUSPENSION - MSG85 MAIN FRAME

2

1045707018

BOLT

3

5305670200

WASHER

4

5305670106

NUT

5

5305670115

COVER

6

5305670196

SEAT PAN W/Ref. 5

11

5305670197

BELLOW

15

5305639625

PIN

16

5305655444

BUSHING

18

5305670198

ROCKER ARM ASSY Includes Refs. 15, 16, 19-24

19

5305670010

PIN Was 5305670199 - A

20

5305655433

BUSHING

21

5305670015

PLATE

22

5305655439

SPRING

23

5305670017

LOCKING PLATE

24

5305670016

PIN

25

5305639675

PIN

26

5305670004

GAS-FILLED DAMPER W/Ref. 25 & 27

27

5305639674

CIRCLIP

28

5305670088

FORK CPL

29

5305670120

RIVET

30

5305670121

PLATE W/Ref. 29

31

5305670185

RUBBER PLATE

32

5305670123

BUFFER SET

33

5305670087

WASHER

34

5305670086

BALL BEARING

35

5305655443

SPRING

36

5305670085

NUT

37

5305670124

SPRING HOLDER

38

5305670128

PLUG

39

5305670090

PIN

40

5305670091

PIN

41

5305670084

LEVER W/Ref. 40

42

5305661646

ADJUSTING SPINDLE Includes Refs. 34, 36, 39 & 47

43

5305670125

GUIDE

44

5305659708

ROLLER

45

5305670126

WEIGHT INDICATOR

46

5305655448

SPRING

47

5305670089

RING

51

5305670186

ADJUSTING RAIL

52

5305670187

OPERATOR SEAT - BOT Includes Refs. 30, 31 & 32
