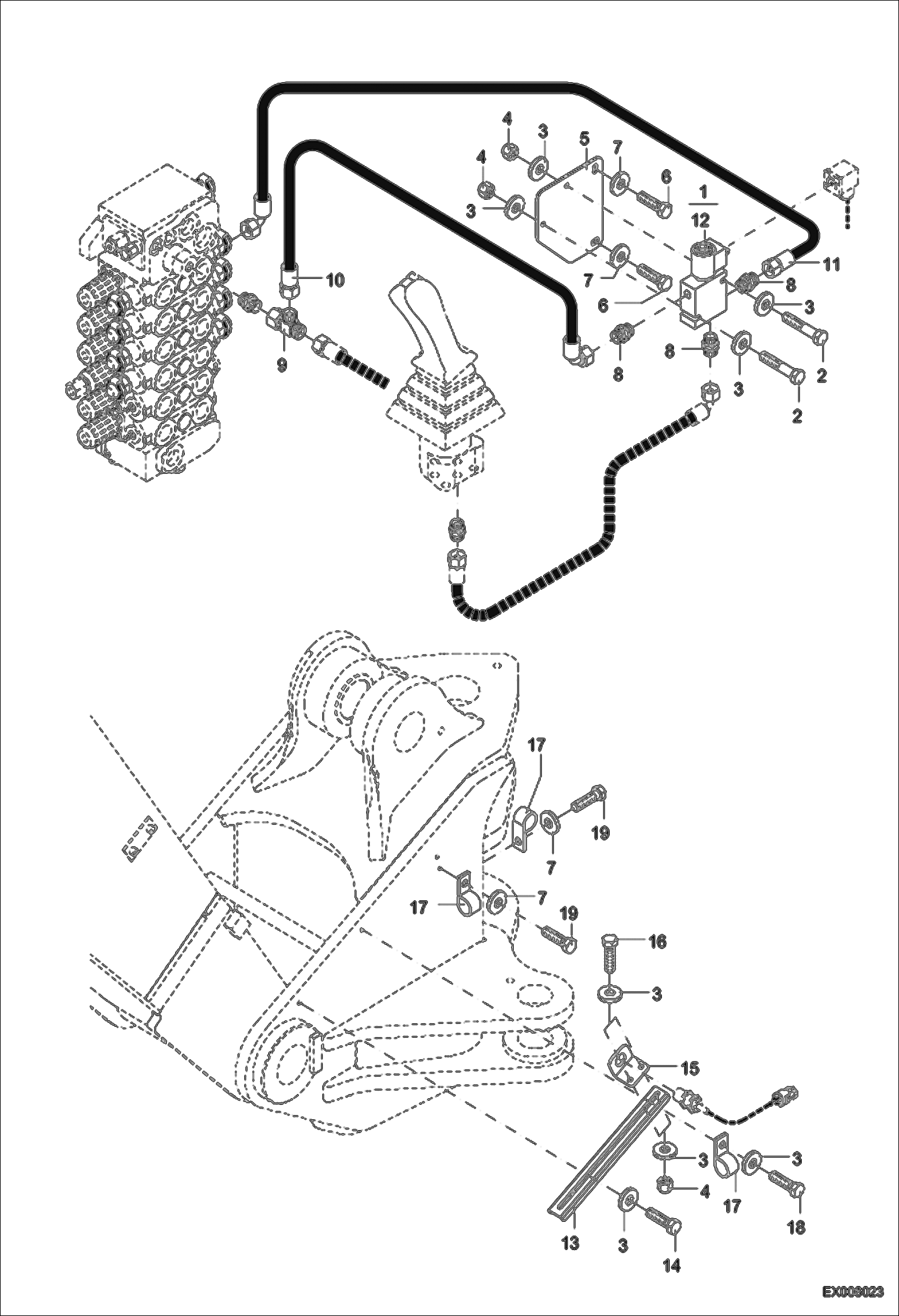

Запчасти Bobcat 442 BOOM HEIGHT LIMITATION - MONO BOOM HYDRAULIC SYSTEM

1

5320001001

CONTROL VALVE W/Ref. 12

2

1007707514

BOLT

3

1343707055

WASHER

4

1212251009

NUT

5

6190241017

MOUNTING PLATE

6

1008707018

BOLT

7

1343707057

WASHER

8

1915060255

FITTING

9

1919060351

FITTING

10

4256033371

HOSE, HYD Was 4506033351 - A

11

4506115351

HOSE ASSEMBLY CPL.

12

5320001002

SOLENOID CARTRIDGE

13

6190241015

BRACKET

14

1008707612

BOLT

15

6190241016

ANGLE

16

1008707213

BOLT

17

5000136710

HOSE CLIP

18

1008707912

BOLT

19

1008707517

BOLT
