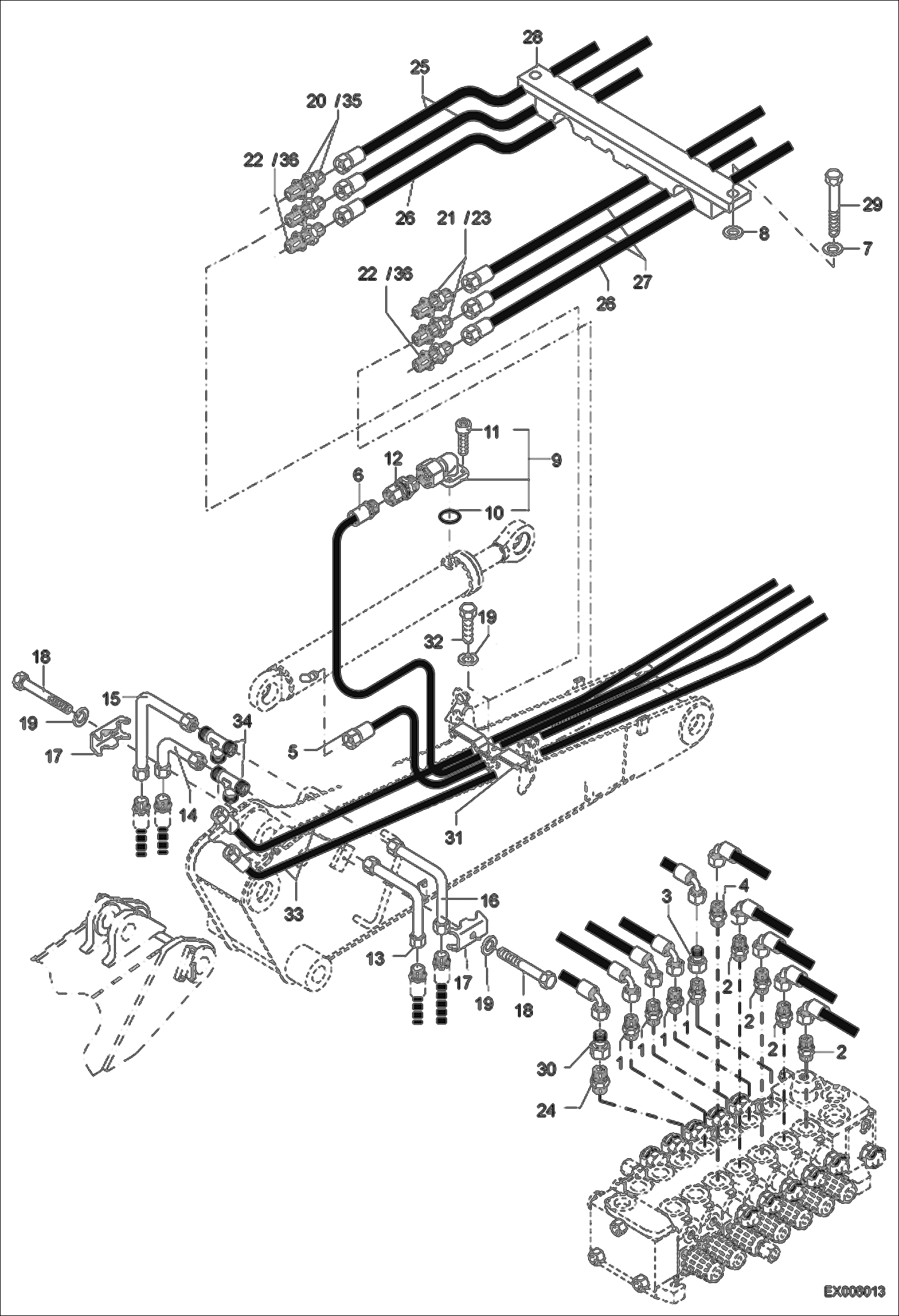

Запчасти Bobcat 442 CIRCULAR BOOM, PART 1 HYDRAULIC SYSTEM

1

0190008015

SCREWED SOCKET

2

1915060476

FITTING

3

1934060219

FITTING

4

1915060470

FITTING

5

4466370512

HOSE

6

4462365483

HOSE Was 4462364583 - D

7

1290707018

WASHER

8

1343707057

WASHER

9

5000261400

FLANGE

10

1971956010

O-RING

11

1045707618

BOLT

12

1938060167

SCREWED SOCKET Was 1915060277 - A

13

0190126026

TUBELINE

14

0190126028

TUBELINE

15

0190126030

TUBELINE

16

0190126032

TUBELINE

17

6176106060

PIPE CLIP

18

1007707524

BOLT

19

1343707059

WASHER

20

1913060166

FITTING

21

1913060165

FITTING

22

1913060155

FITTING

23

1636815578

SEAL RING

24

1915060266

FITTING

25

4466295512

HOSE

26

4266281376

HOSE

27

4462285441

HOSE

28

0190126011

CLIP

29

1008707019

BOLT

30

1934060170

FITTING

31

6190105032

BRACKET Was 6190105030 - A

32

1008707817

BOLT

33

4462420441

HOSE

34

1914060125

FITTING

35

1636815281

SEAL RING

36

1636815379

SEAL RING
