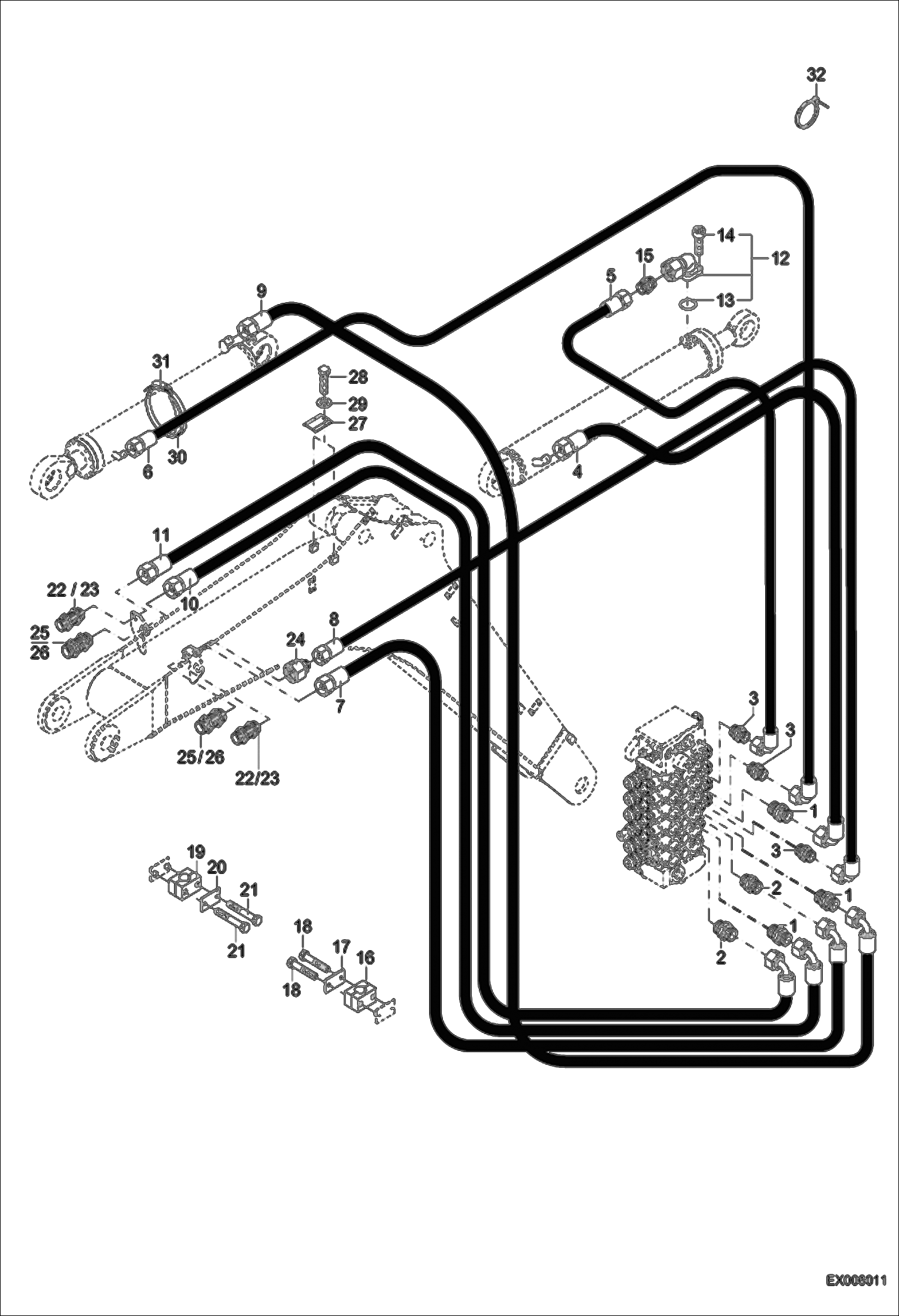

Запчасти Bobcat 442 BOOM - MONO HYDRAULIC SYSTEM

1

1915060278

FITTING

2

1915060470

FITTING

3

1915060476

FITTING

4

4466389512

HOSE

5

4462370441

HOSE

6

4462520441

HOSE

7

4266488376

HOSE

8

4462495441

HOSE

9

4466451512

HOSE

10

4466506512

HOSE

11

4266496376

HOSE

12

5000261400

FLANGE

13

1971956010

O-RING

14

1045707618

BOLT

15

1915060277

FITTING

16

5660199787

HOSE CLIP

17

5660200130

COVER

18

1007707014

BOLT

19

5660199802

HOSE CLIP

20

5660200140

COVER PLATE

21

1007707214

BOLT

22

1913060155

FITTING

23

1636815379

SEAL RING

24

1934060219

FITTING

25

1913060166

FITTING

26

1636815281

SEAL RING

27

6190105031

BRACKET

28

1008707018

BOLT

29

1343707057

WASHER

30

0110012050

RUBBER LAYER

31

5660095200

HOSE CLIP

32

5653093560

BINDER
