Запчасти Bobcat 442 PILOT CONTROL - BLADE, ARTICULATION HYDRAULIC SYSTEM

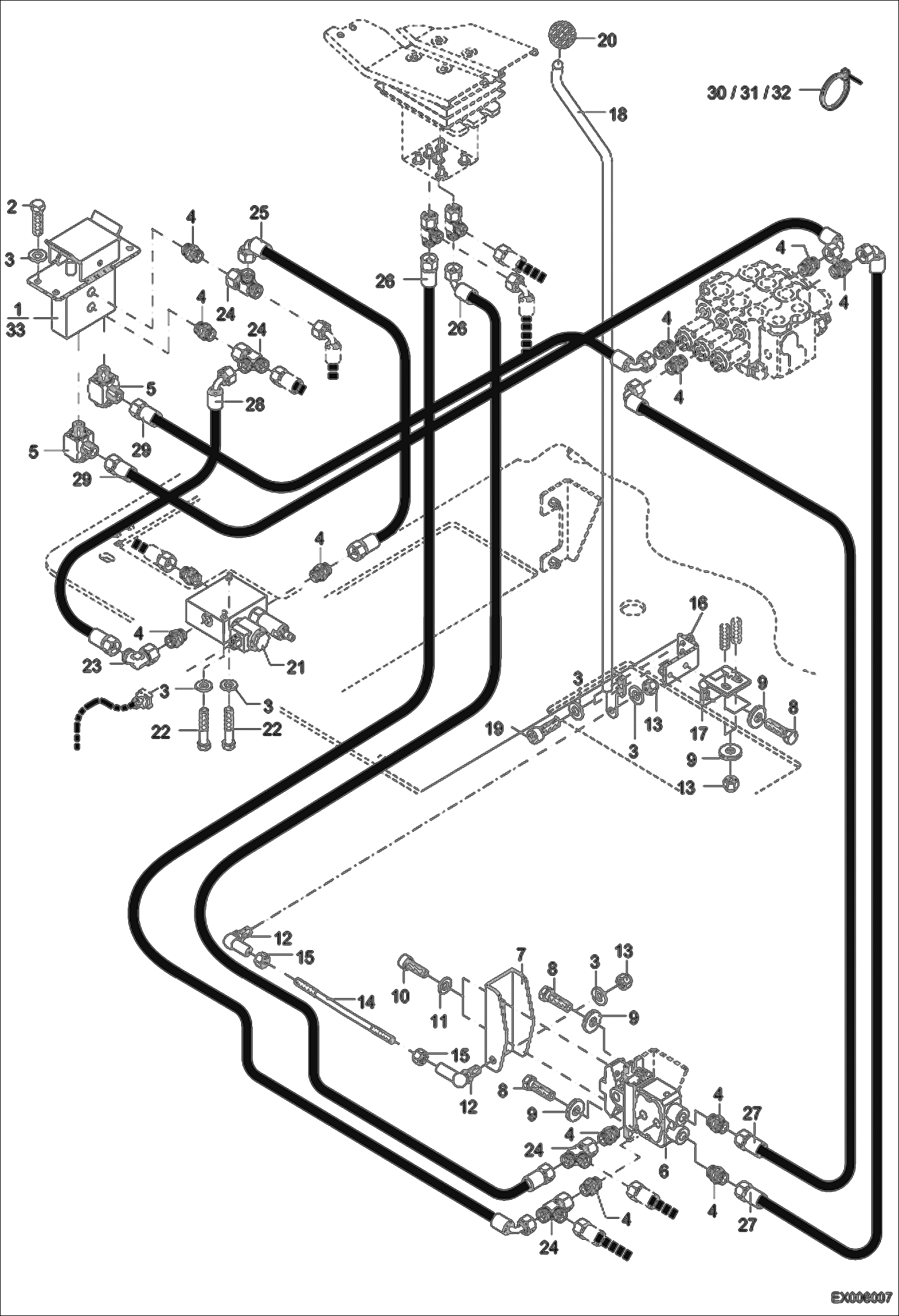

Схема запчастей Bobcat 442 - PILOT CONTROL - BLADE, ARTICULATION HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

5606658830

PEDAL W/Ref. 34

2

1008707018

BOLT

3

1290707018

WASHER

4

1915060255

FITTING

5

1921060555

FITTING

6

5167659756

PILOT CONTR. VALVE

7

6189609024

MOUNT

8

1008707318

BOLT

9

1343707057

WASHER

10

1045707612

BOLT

11

1290707014

WASHER

12

1798707104

ANGLE JOINT

13

1212251011

NUT

14

0189209518

THREADED ROD

15

1210707011

NUT

16

6189609035

BRACKET

17

5426585596

HINGE

18

6189609036

LEVER

19

1045707018

BOLT

20

1541930726

BALL KNOB

21

5368632565

VALVE ASSEMBLY

22

1007707619

BOLT

23

1924060151

FITTING

24

1919060351

FITTING

25

4256033371

HOSE, HYD Was 4506033351 - A

26

4506040351

HOSE

27

4506380371

HOSE

28

4506047351

HOSE

29

4506320351

HOSE

30

5350650280

BINDER

31

5653093560

BINDER

32

5350650294

BINDER

33

5606664302

SPOOL, ACTUATOR Was 5606658830 - D

Выбрано товаров: 33
