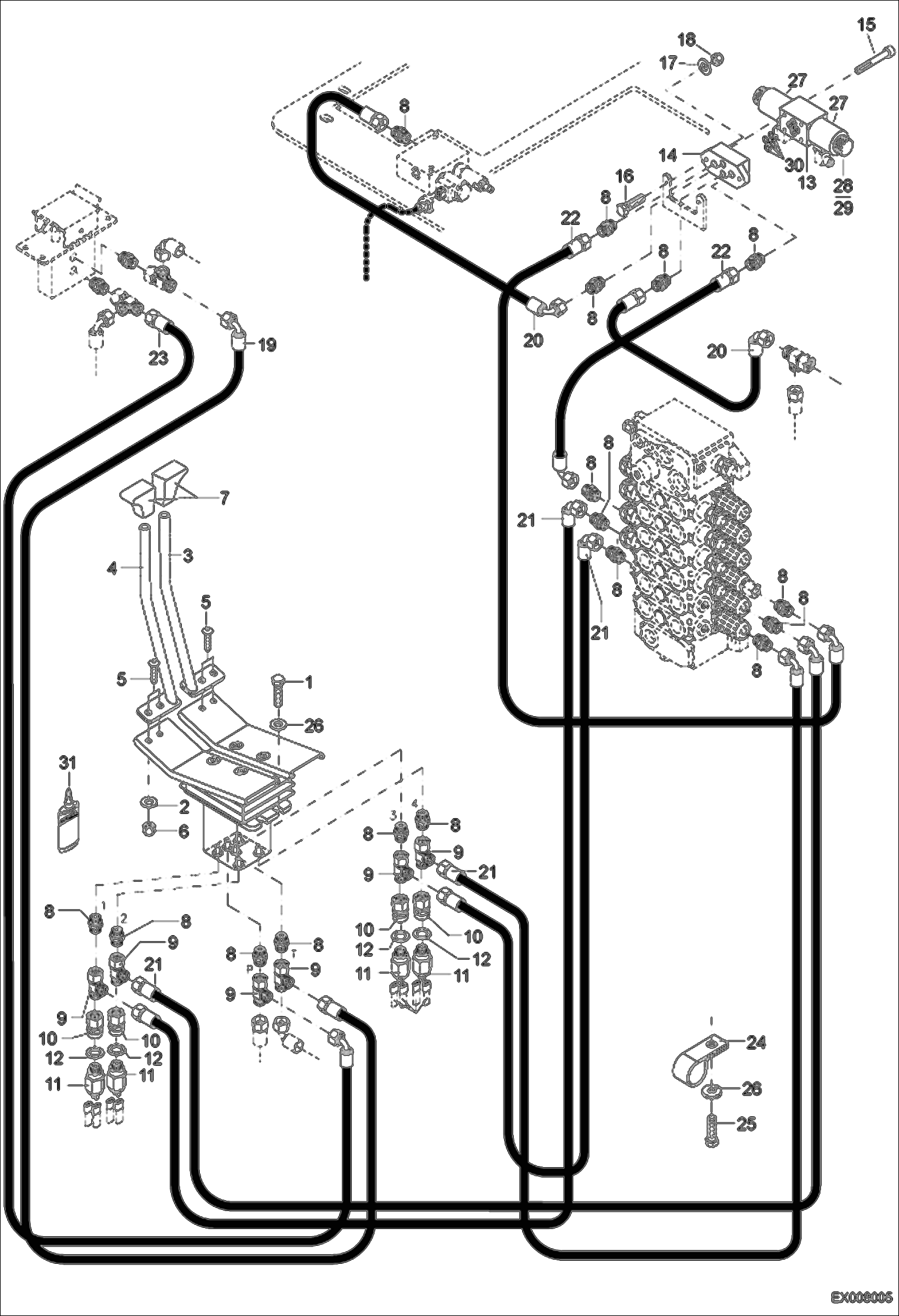

Запчасти Bobcat 442 PILOT CONTROL - TRAVEL, ADDITIONAL OUTLET HYDRAULIC SYSTEM

1

1008707318

BOLT

2

1290707018

WASHER

3

0216009071

LEVER, TRAVEL RH

4

0216009070

LEVER, TRAVEL LH

5

1069020018

BOLT

6

1212251011

NUT

7

1576000512

HANDLE

8

1915060255

FITTING

9

1919060351

FITTING

10

1943000101

CONNECTION

11

5050143209

SWITCH Was 5050143175 - A

12

1636815155

SEAL RING

13

5003700001

DIRECT CONTR. VALVE W/Ref. 27-30

14

5003700003

CONNECTING PLATE

15

1045907011

BOLT

16

1008707513

BOLT

17

1290707014

WASHER

18

1212251009

NUT

19

4506040351

HOSE

20

4506140371

HOSE

21

4506270371

HOSE

22

4506180351

HOSE

23

4256033371

HOSE, HYD Was 4506033351 - A

24

5000210462

HOSE CLIP

25

1008707817

BOLT

26

1343707057

WASHER

27

5003700025

COIL

28

5003700026

NUT W/SEAL W/Ref. 29

29

1970956810

O-RING

30

5003700027

SEAL KIT

31

MCS001040A

GLUE
