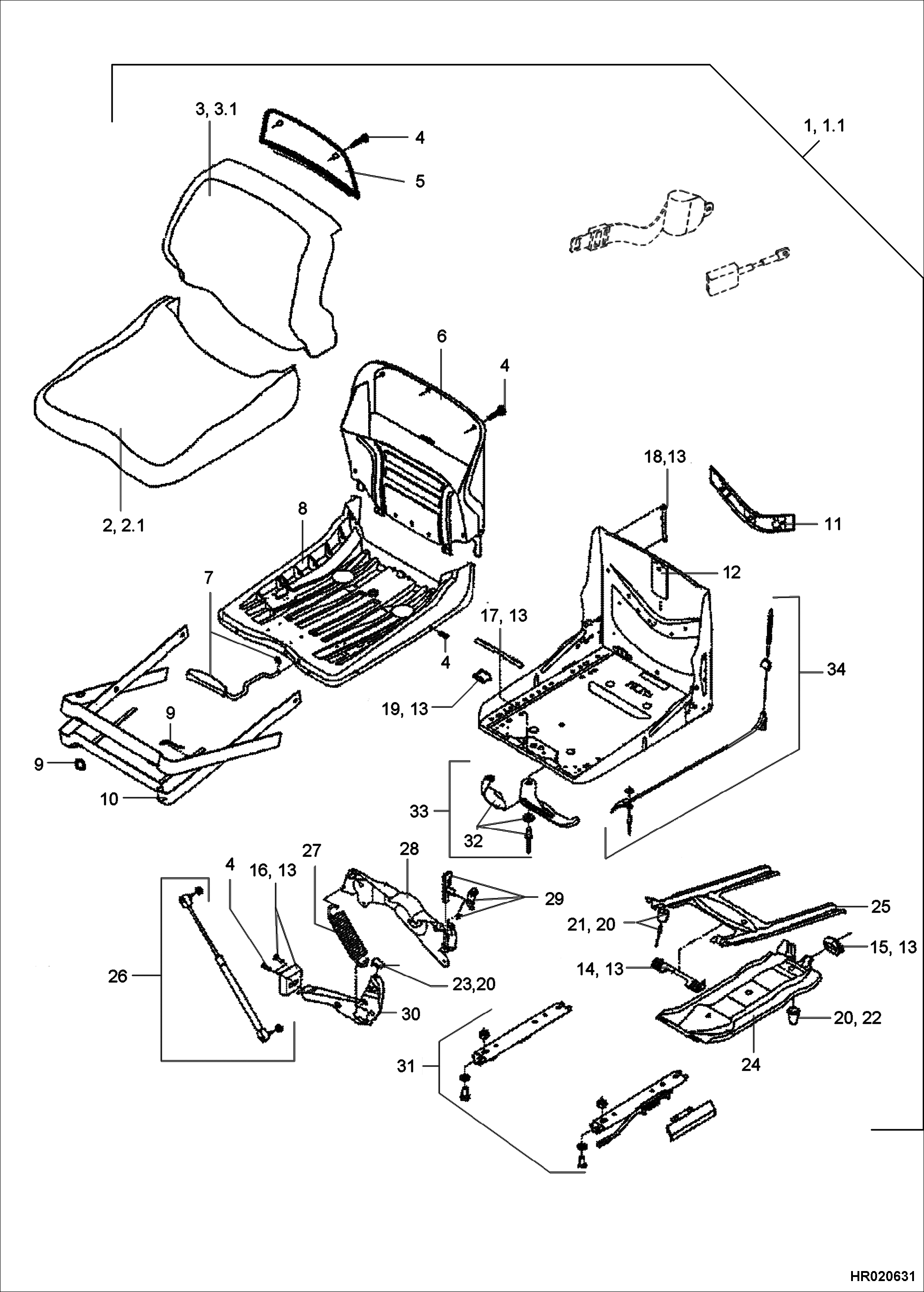

Запчасти Bobcat 442 OPERATORS SEAT MAIN FRAME

1

5305661700

OPERATORS SEAT W/Ref. 2, 3, 4-34

1

5305661690

DRIVERS SEAT CPL W/Ref. 2, 3, 4-34

2

5305670022

PAD W/Ref. 4

2

5305670020

CUSHION SEAT W/Ref. 4

3

5305670023

PAD W/Ref. 5

3

5305670021

CUSHION BACK W/Ref. 5

4

5305661608

SET, MOUNTING PART

5

5305661618

COVER W/Ref. 4

6

5305661611

PLATE W/Ref. 4

7

5305039166

CONTROL LEVER

8

5305661612

SEAT BRACKET W/Ref. 4, 7, 10

9

5305039168

REPAIR KIT

10

5305039169

COVER W/Ref. 9

11

5305661613

COVER

12

5305661614

SEAT CONSOLE W/Ref. 4, 11, 16-19, 33, 34

13

5305661594

SEAL KIT W/Ref. 14-19

14

ANGLE PLATE W/Ref. 13

15

PLATE W/Ref. 13

16

COVER W/Ref. 13

17

PIPE W/Ref. 13

18

CLIP W/Ref. 13

18

CLIP W/Ref. 13

19

PLUG W/Ref. 13

20

5305039173

PLUG KIT W/Ref. 21-23

21

BUFFER

22

BUFFER

23

PLATE

24

5305039174

SPRING SUSPENTION W/Ref. 15, 17, 22

25

5305039175

SPRING SUSPENTION W/Ref. 14, 21

26

5305661595

GAS FILLED DAMPER

27

5305039176

TENSION SPRING

28

5305039177

LEVER

29

5305661615

PART

30

5305039180

LEVER W/Ref. 16, 23

31

5305661691

SLIDING RAIL SET

32

5305661616

CONTROL LEVER

33

5305661617

CABLE PULL W/Ref. 32

34

5305661619

WEIGHT INDICATOR
