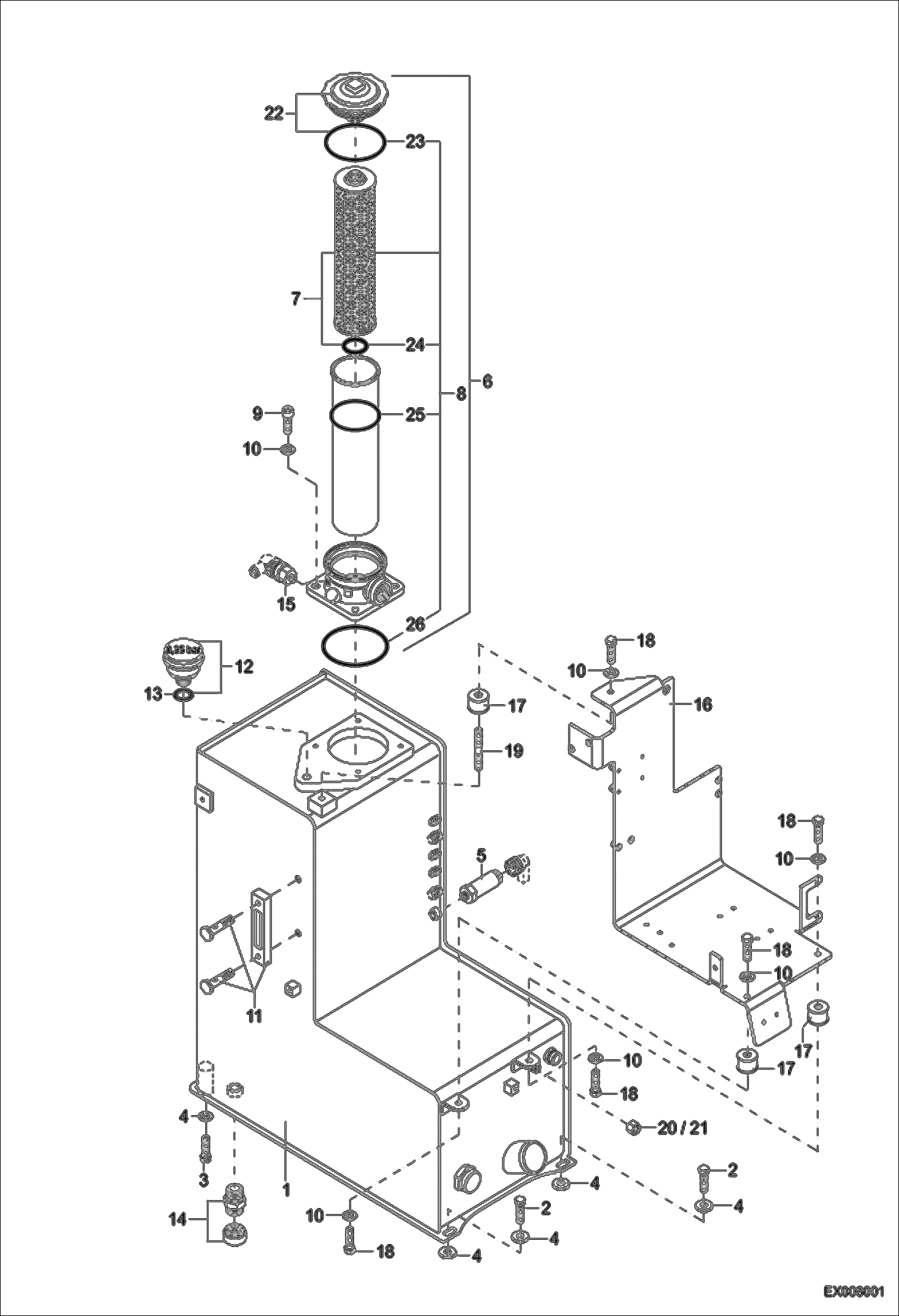

Запчасти Bobcat 442 HYDRAULIC OIL TANK HYDRAULIC SYSTEM

1

6283013002

HYDRAULIC OIL TANK

2

1008707230

BOLT

3

1008707630

BOLT

4

1343707061

WASHER

5

5091661776

OIL LEVEL SENSOR

6

5368632567

RETURN FILTER ASSY W/Ref. 7-8

7

5368632568

FILTER, OIL HYD TANK

8

5368655681

SEAL KIT W/Ref. 23-26

9

1045707923

BOLT

10

1290707020

WASHER

11

5368632243

OIL GAUGE

12

5501655650

BREATHER CAP 0,35bar

13

5501655651

O-RING

14

5366654593

DRAIN PLUG

15

5380660832

SWITCH, PRESS Was 5380660831 - A

16

6207508012

MOUNT, VALVE

17

BEARING NLA - Was 5101290966 - A

18

1008707423

BOLT

19

1133907324

STUD

20

1912060355

PLUG

21

1911060155

UNION NUT

22

5368655686

COVER W/Ref. 23

23

5712656976

O-RING

24

1970956943

O-RING

25

1971956240

O-RING

26

1971956337

O-RING
