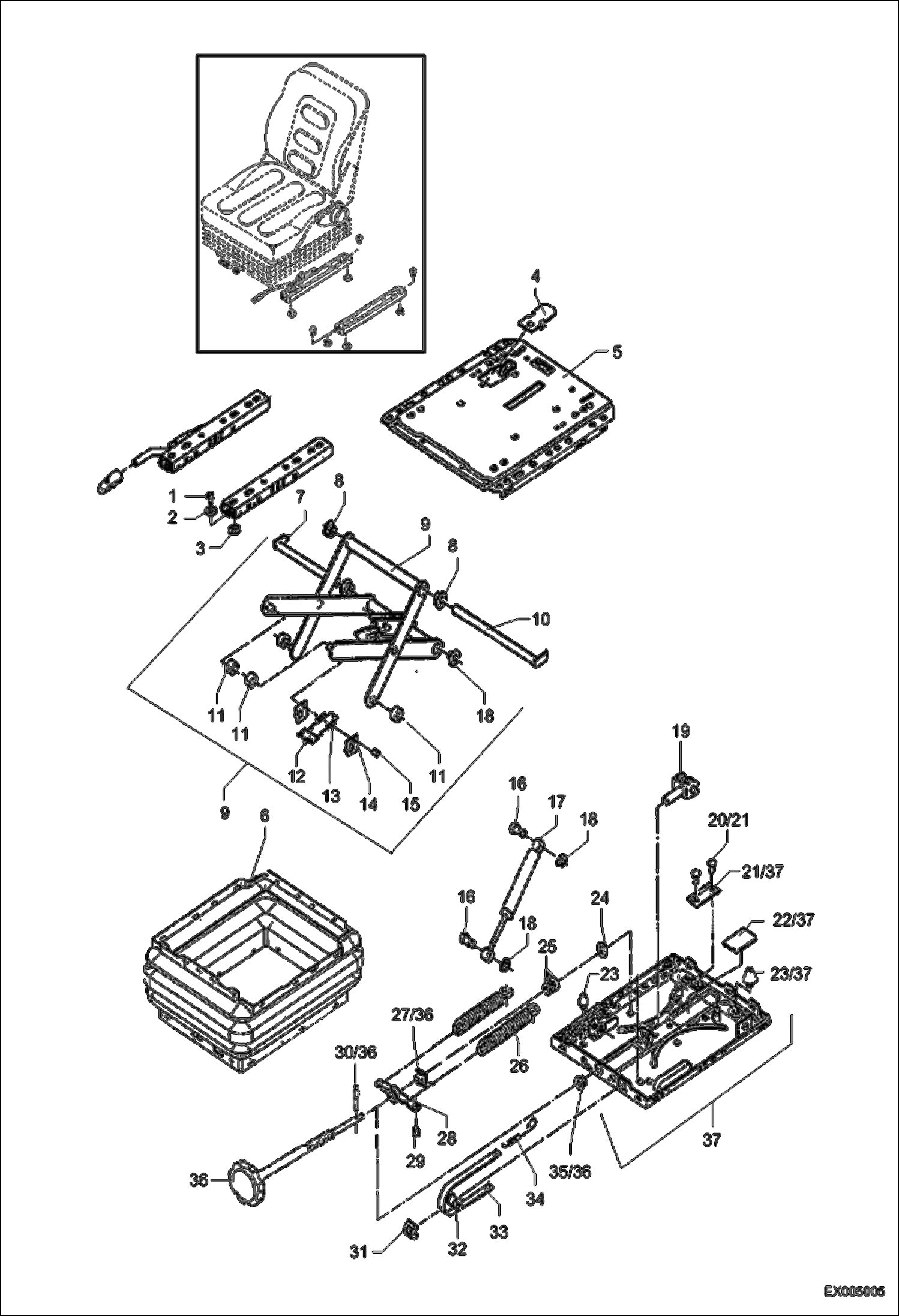

Запчасти Bobcat 442 SEAT - SUSPENSION MSG85 CONTROLS

1

1045707018

BOLT

2

5305670200

WASHER

3

5305670106

NUT

4

5305670115

COVER

5

5305670196

SEAT PAN W/Ref. 4

6

5305670197

BELLOW

7

5305639625

PIN

8

5305655444

BUSHING

9

5305670198

ROCKER ARM ASSY W/Ref. 7-8 & 10-15

10

5305670010

PIN

11

5305655433

BUSHING

12

5305670015

PLATE

13

5305655439

SPRING

14

5305670017

LOCKING PLATE

15

5305670016

PIN

16

5305639675

PIN

17

5305670004

GAS-FILLED DAMPER W/Ref. 16 & 18

18

5305639674

CIRCLIP

19

5305670088

FORK CPL

20

5305670120

RIVET

21

5305670121

PLATE W/Ref. 20

22

5305670185

RUBBER PLATE

23

5305670123

BUFFER SET

24

5305670087

WASHER

25

5305670086

BALL BEARING

26

5305655443

SPRING

27

5305670085

NUT

28

5305670124

SPRING HOLDER

29

5305670128

PLUG

30

5305670090

PIN

31

5305670125

GUIDE

32

5305659708

ROLLER

33

5305670126

WEIGHT INDICATOR

34

5305655448

SPRING

35

5305670089

RING

36

5305670372

SPINDLE CPL. W/Ref. 25-26, 30 & 35

37

5305670187

OPERATOR SEAT - BOT W/Ref. 21-23
