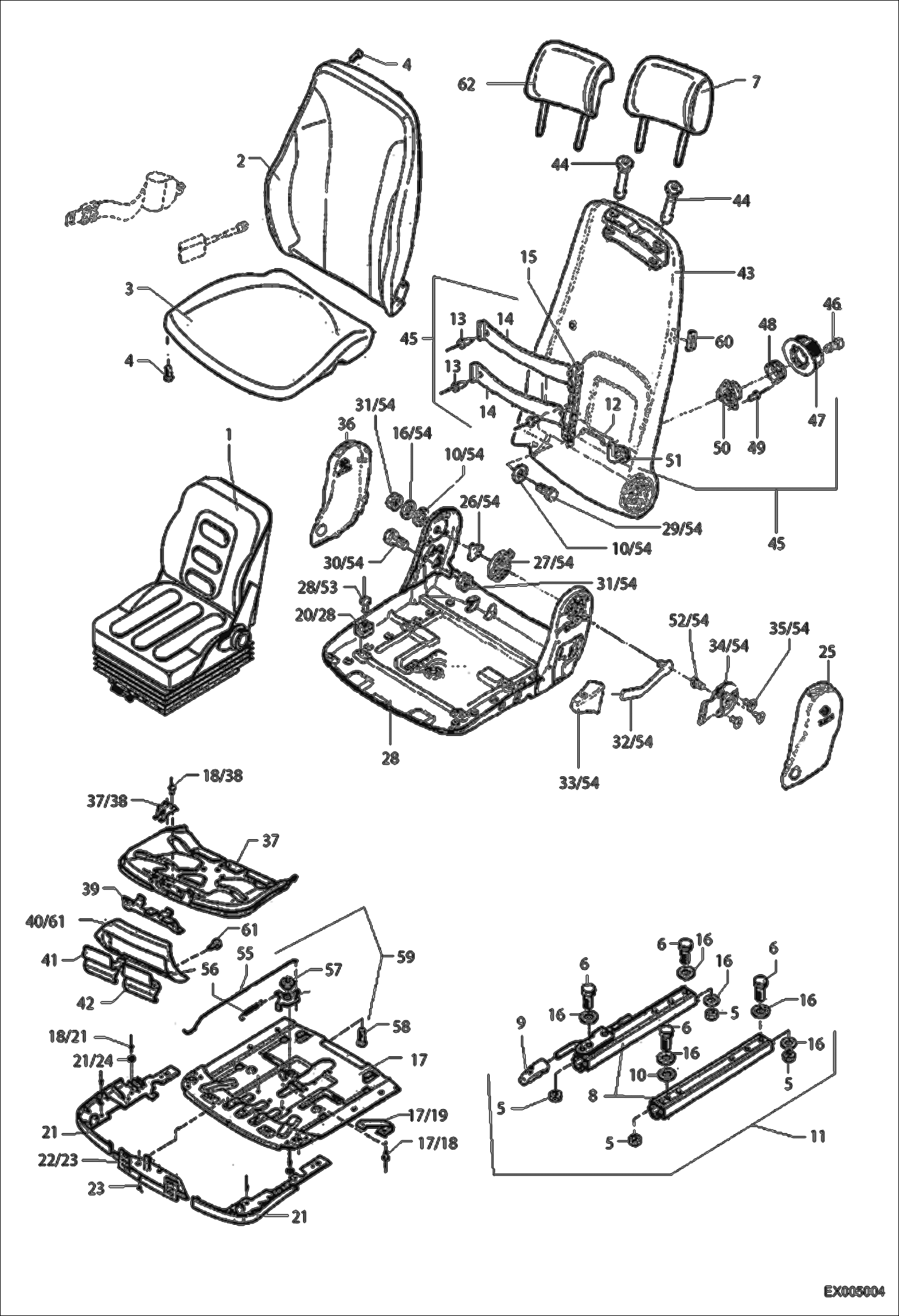

Запчасти Bobcat 442 OPERATOR SEAT - MSG85 CONTROLS

1

5305661655

OPERATORS SEAT MSG85/7 See Illustration SEAT - SUSPENSION MSG85/ EX005005 W/Ref. 2-61

2

5305670188

CUSHION BACK REST W/Ref. 4

3

5305670189

CUSHION SEAT W/Ref. 4

4

5305670315

BOLT

5

1210707011

NUT

6

1008707817

BOLT

7

5305670101

HEADREST option

8

5305670186

ADJUSTING RAIL W/Ref. 9

9

5305670190

HANDLE

10

5305670104

WASHER

11

5305670191

MOUNTING PARTS Ref. 5, 6, 10 & 16

12

5305670206

ROD

13

5305670134

RIVET

14

5305670207

PLATE

15

5305670208

BRACKET

16

5305670200

WASHER

17

5305670137

PLATE W/Ref. 18-19 & 22

18

5305670138

RIVET

19

5305670139

SUSPENSION PLATE

20

5305670140

SLIDING BLOCK W/Ref. 53

21

5305670141

COVER W/Ref. 18 & 24

22

5305670032

HANDLE W/Ref. 23

23

5305670142

RIVET

24

1307707010

WASHER

25

5305670280

COVER

26

5305670143

BEARING

27

5305670034

SPRING

28

5305670144

SEAT PLATE ASSY W/Ref. 20 & 53

29

1008707019

BOLT

30

1008707318

BOLT

31

1212251011

NUT

32

5305670035

LEVER

33

5305670036

HANDLE

34

5305670437

ADAPTER PLATE

35

5305670038

BOLT

36

5305670282

COVER RIGHT

37

5305670193

ROCKER W/Ref. 3 & 38

38

5305670146

SUSPENSION PLATE W/Ref. 18

39

5305670040

LEVER

40

5305670147

COVER W/Ref. 61

41

5305670041

HANDLE W/Ref. 55

42

5305670042

HANDLE

43

5305670194

BACK REST W/Ref. 13 & 49

44

5305670149

SLEEVE

45

5305670211

BACK SUPPORT ASSY W/Ref. 12-15 & 47-51

46

1045707512

BOLT

47

5305670212

HANDLE CPL

48

5305670213

PINION

49

5305670214

RIVET

50

5305670215

BRAKE

51

5305670216

BRACKET

52

5305670152

BOLT

53

5305670153

RIVET

54

5305670154

MOUNTING PARTS BACKR W/Ref. 10, 16, 26-27, 29-35 & 52

55

5305670155

ROD

56

5305670043

SPRING

57

5305670156

RING

58

5305670157

BOLT

59

5305670195

LEVER W/Ref. 56-58

60

5305670309

COVER

61

5305670026

BOLT

62

5305670367

HEADREST option
