Запчасти Bobcat 442 OPERATOR CAB - CEMENTED PANES - DOOR MAIN FRAME

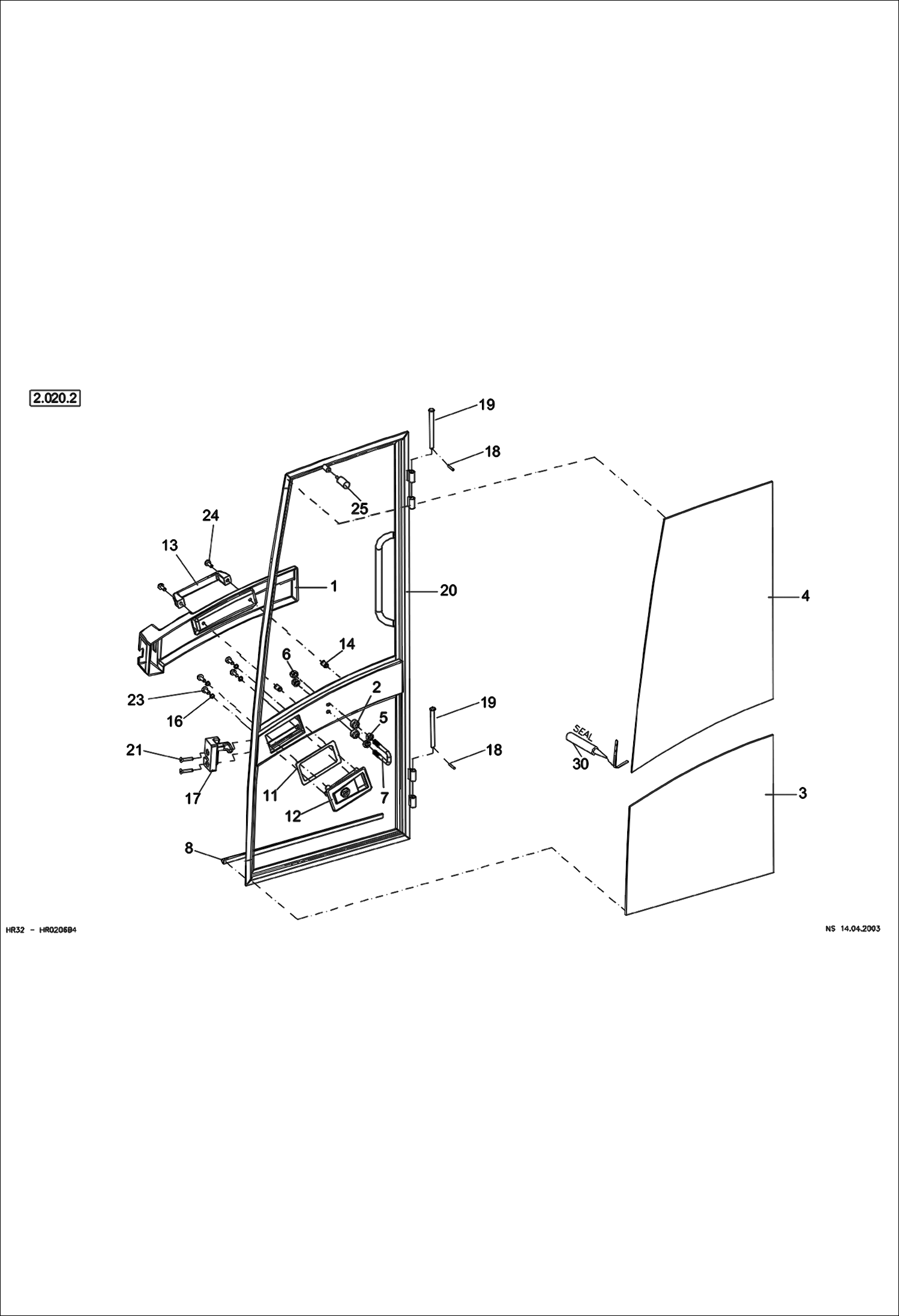

Схема запчастей Bobcat 442 - OPERATOR CAB - CEMENTED PANES - DOOR MAIN FRAME

Артикул

Название

Примечание

Количество

1

5388665166

COVER

2

5388662632

CAP

3

5103661310

DOOR PANE BOTTOM Was 5388665060 - A

4

5103661319

DOOR PANE TOP Was 5388665059 - A

5

1210707011

NUT

6

5388662946

NUT

7

5388662489

CLIP

8

5388662954

SEAL L=600MM

11

5388662961

SEAL

12

5388662962

DOOR HANDLE

12

5050650259

KEY

12

5354604442

PLASTIC HANDLE

13

5388662963

HANDLE

14

5388662964

NUT

16

1290707014

WASHER

17

5388661474

LOCK, LEFT

18

5388661432

SPRING PIN

19

5388661431

HINGE ROD

20

5388662965

DOOR FRAME, BLACK

21

1062707019

BOLT

23

1008707612

BOLT

24

1008707213

BOLT Was 5388662072 - A

25

5388662947

STOP

30

SEAL NLA - for windows - Was MCS008042A - A

Выбрано товаров: 24
