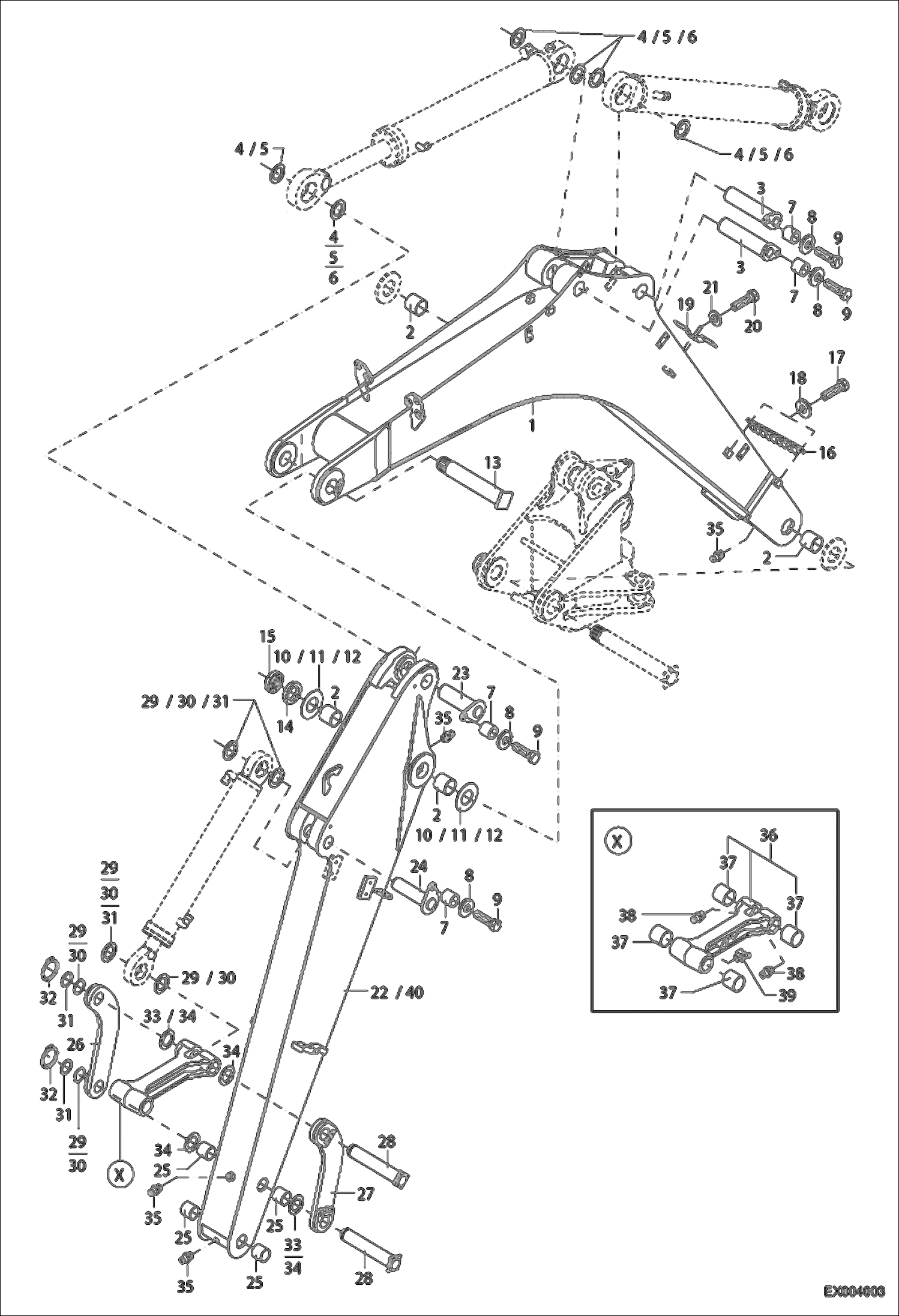

Запчасти Bobcat 442 MONO BOOM WORK EQUIPMENT

1

0283105002

BOOM serial number listed is the vendor serial number Was 0234105002 - A

2

5809625667

BUSHING

3

0155128043

PIN

4

1309412013

SHIM

5

1309412825

SHIM

6

1309412834

SHIM

7

0156029033

SPACER

8

1343707061

WASHER

9

1008707829

BOLT

10

0202524050

WASHER

11

0203024057

WASHER

12

0202524051

WASHER

13

0190105020

PIN

14

0209127045

ZINC COATED RING

15

1212707446

SLOTTED NUT

16

0190105025

HOSE CLIP

17

1008707618

BOLT

18

1343707057

WASHER

19

0190105032

BRACKET serial number listed is the vendor serial number Was 6190105030 - A

20

1008707018

BOLT

21

1290707018

WASHER

22

0234106002

DIPPER ARM 2000 mm

23

0176106055

PIN

24

0156132075

PIN

25

5809625553

BUSHING, PRESS FIT

26

0176106065

TILTING LEVER RH

27

0176106070

TILTING LEVER LH

28

0211007110

PIN

29

1309412412

SHIM

30

1309412425

SHIM

31

1309412434

SHIM

32

1455622750

SNAP RING

33

0194019025

WASHER

34

0194002226

WASHER

35

1607003010

GREASE NIPPLE

36

0209129055

GUIDE LINK ASSY W/Ref. 37

37

5809625675

BUSHING

38

1607010010

GREASE ZERK

39

1608010010

GREASE ZERK

40

0234169002

ARM, DIPPER W/A EXC 2200 mm
