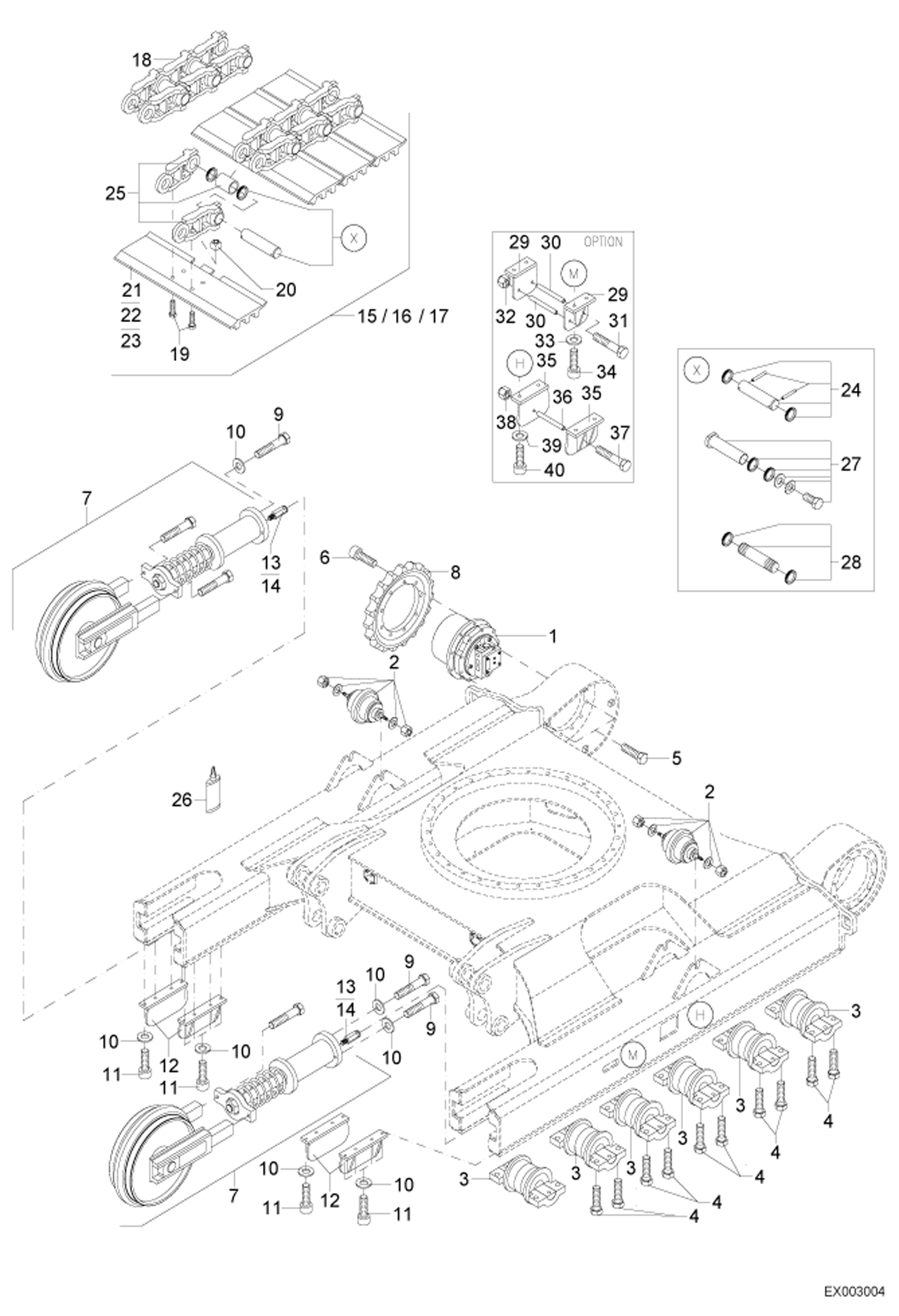

Запчасти Bobcat 442 TRACK VERSION, STEEL TRACK UNDERCARRIAGE

1

5459660217

MOTOR, DRIVE HYD travel - Was 5999991227 - D

2

5527640005

ROLLER

3

5671663001

TRACK ROLLER

4

1007707630

BOLT

5

1008907036

BOLT

6

1045907041

BOLT

7

5671663003

IDLER, TRACK FRONT See Illustration IDLER UNIT, STEEL TRACK/ EM5108

8

5671663005

SPROCKET

9

1007707430

BOLT

10

1290707022

WASHER

11

1045707829

BOLT

12

6190002060

IDLER COVER

13

1955005118

SEAL RING

14

5382211542

NIPPLE

15

5671658424

TRACK, STEEL 450mm - W/Ref. 18-20 & 23

16

5671658475

STEEL TRACK 500mm - option - W/Ref. 18-21

17

5671658485

STEEL TRACK 600mm - option - W/Ref. 18-20 & 22

18

5671660266

STEEL TRACK W/O grouser

19

5671658333

BOLT

20

5671658334

NUT

21

5671660285

GROUSER 500mm - option

22

5671658332

TRACK SHOE (600MM) 600mm - option

23

5671660269

TRACK SHOE (450MM) 450mm

24

5671658508

PIN respect version

25

5671658510

REPAIR LINK ASSY W/Ref. 24 & 27-28

26

MCS001035A

GLUE

27

5671660330

MASTER PIN, ASSY option - respect version

28

5671660334

MASTER PIN CPL. option - respect version

29

6234351020

PROTECTION, CENTER RUNNIG TRACK option - serial number listed is the vendor serial number

30

0234351024

SPACER option

31

1007707832

BOLT option

32

1212251014

NUT option

33

1290707022

WASHER option

34

1045707829

BOLT option

35

6234352020

PROTECTION, REAR RUNNIG TRACK option - serial number listed is the vendor serial number

36

0234351024

SPACER option

37

1007707832

BOLT option

38

1212251014

NUT option

39

1290707022

WASHER option

40

1045707829

BOLT option
