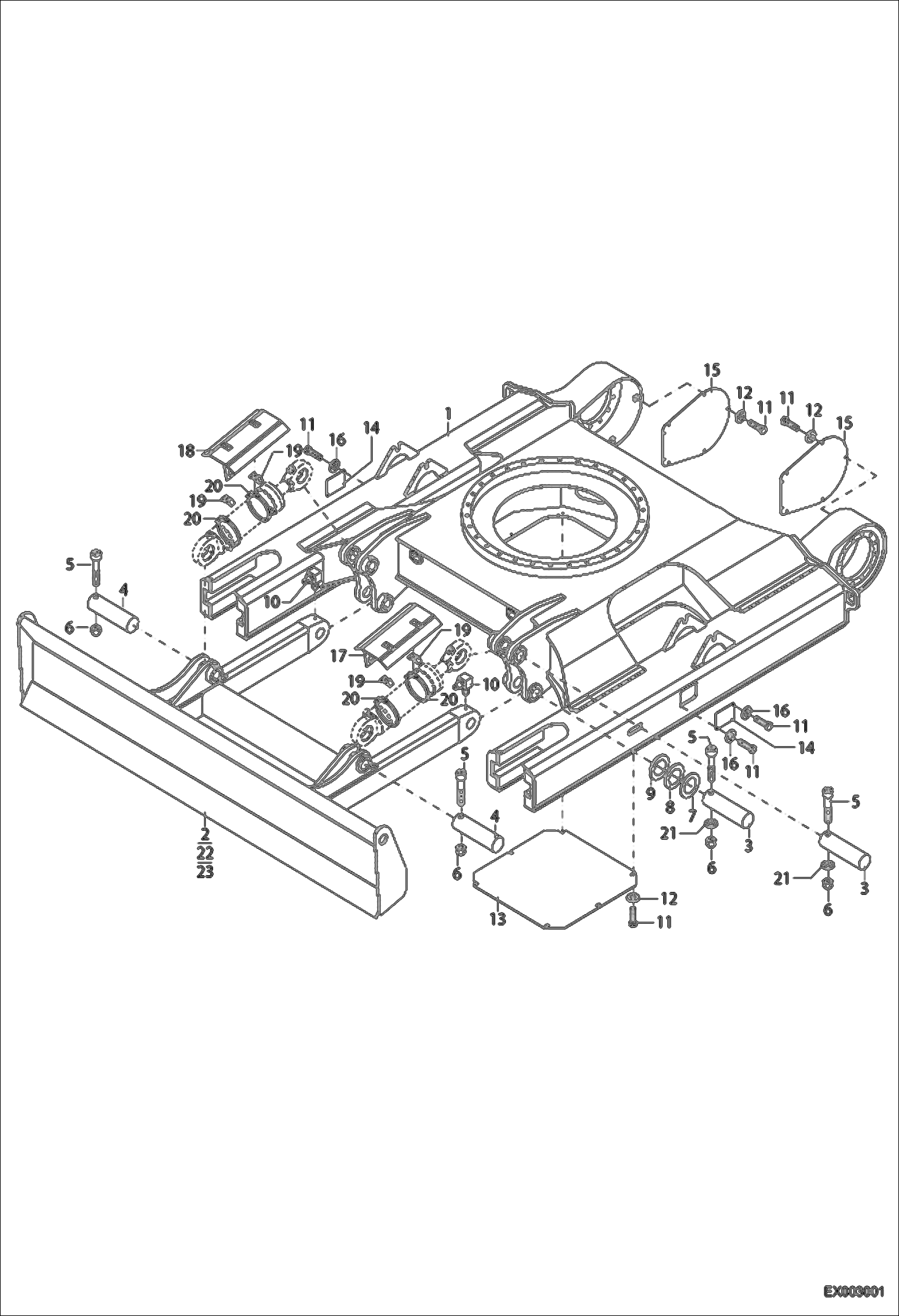

Запчасти Bobcat 442 UNDERCARRIAGE, SUPPORT BLADE, COVER UNDERCARRIAGE

1

6283001105

UNDER CARRIAGE Was 6190001005 - A

2

0190002030

SUPPORT BLADE 2330 mm

3

0205209020

PIN

4

0205209021

PIN

5

1045707631

BOLT

6

1212251014

NUT

7

0194019227

WASHER

8

0194019025

WASHER

9

0194002226

WASHER

10

1608003010

GREASE NIPPLE

11

1008707018

BOLT

12

1343707057

WASHER

13

6190002011

COVER

14

6189602020

COVER RUNNING WHEE

15

6190002010

COVER

16

1290707018

WASHER

17

0190002055

SHIELD

18

0190002051

PROTECTION

19

0110012050

RUBBER LAYER

20

5660095400

HOSE CLIP

21

1290707022

WASHER

22

0190319002

SUPPORT BLADE 2480 mm

23

0190315002

SUPPORT BLADE extended
