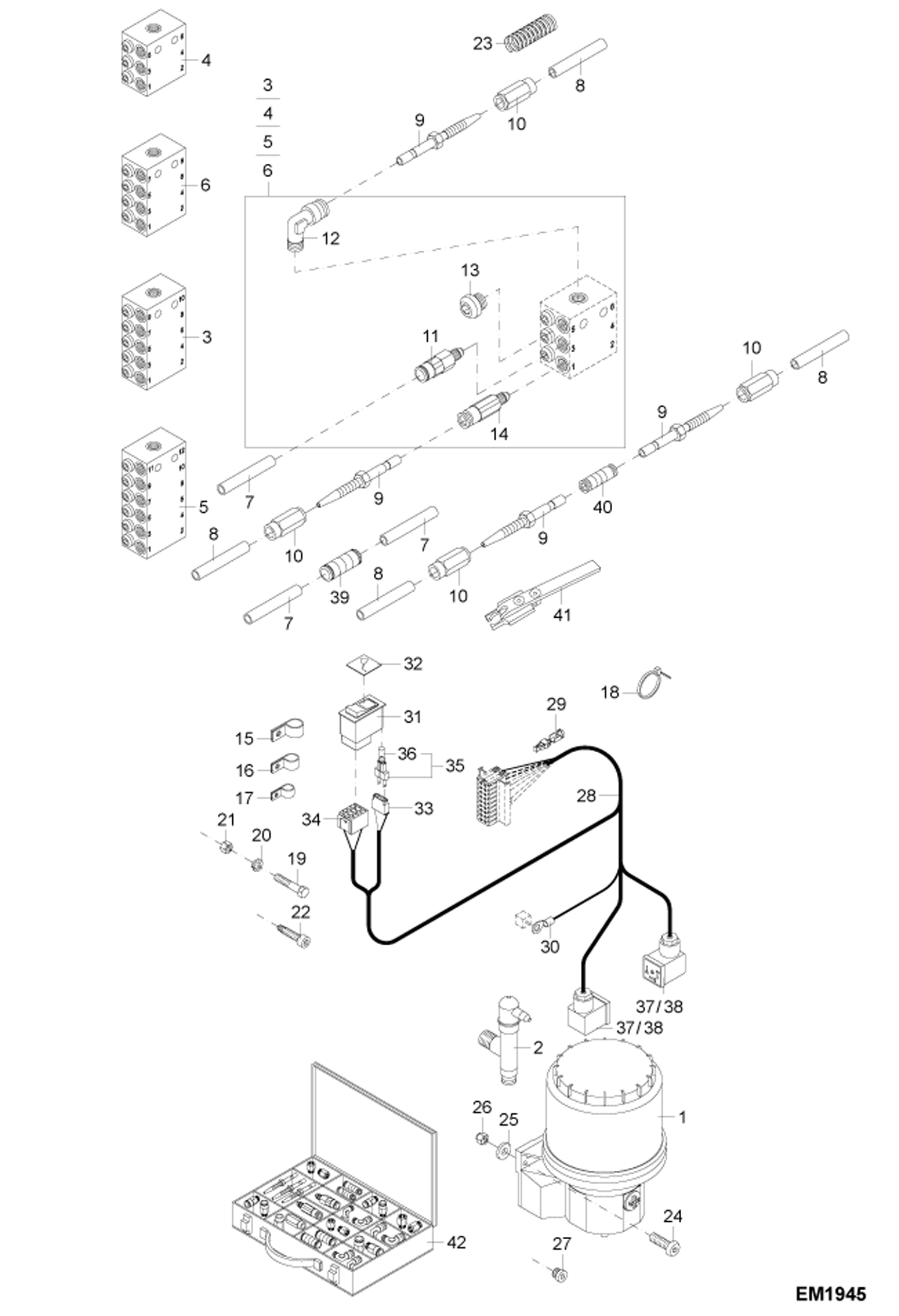

Запчасти Bobcat 442 CENTRAL LUBRICATION SYSTEM 2 MAIN FRAME

1

5468662043

LUBRICANT PUMP

2

5468662072

PRESSURE RELIEF VALVE

3

5468662023

DISTRIBUTOR OF LUBRICANT SSV10 CPL.

4

5468662021

DISTRIBUTOR OF LUBRICANT SSV6 CPL.

5

5468662024

DISTRIBUTOR OF LUBRICANT SSV12 CPL.

6

5468662022

DISTRIBUTOR OF LUBRICANT SSV8 CPL.

7

5468660505

HIGH PRESSURE PLASTIC TUBE

8

5468660488

HIGH PRESSURE HOSE

9

5468660486

HOSE FITTING

10

5468660487

SCREW SLEEVE

11

5468660574

FITTING, STRT PUSH-IN STYLE GEK 6-M 6X1

12

5468660571

FITTING, 90 DEG PUSH-IN STYLE 6-1/8''-S01

13

5468660665

BLANKING END M10X1

14

5468660572

VALVE GATE

15

5468662088

PIPE CLIP ?2

16

5468660679

PIPE CLIP ?

17

5468660506

PIPE CLIP ?

18

5468660469

BINDER 186X4,8

19

1007707214

BOLT

20

5468662087

SPRING WASHER A6C

21

1210707009

NUT

22

5468660527

BOLT EM5X16''

23

5468660593

PLASTIC SPIRAL

24

1069907019

BOLT

25

1343707057

WASHER

26

1212251011

NUT

27

1912060451

PLUG

28

0207859021

WIRE HARNESS +POS. 29-38 W/Ref. 29-38

29

5350249552

CONNECTOR

30

5350246610

CABLE CONNECTOR

31

5050651364

ROCKER SWITCH W/Ref. 35

32

5358650316

SYMBOL OCC. LIGHT

33

5050650231

HOUSING

34

5050650225

HOUSING

35

2050650226

SOCKET W/Ref. 36

36

1813000021

ROUND BULB

37

5552659550

BOX

38

5552659513

SEAL

39

5468660630

TUBE CONNECTOR OPTION option

40

5468660631

TUBE CONNECTOR OPTION option

41

5468660632

COMPLETE SET OF TOOLS OPTION option

42

5468660634

ASSORTMENT SUITCASE OPTION option
