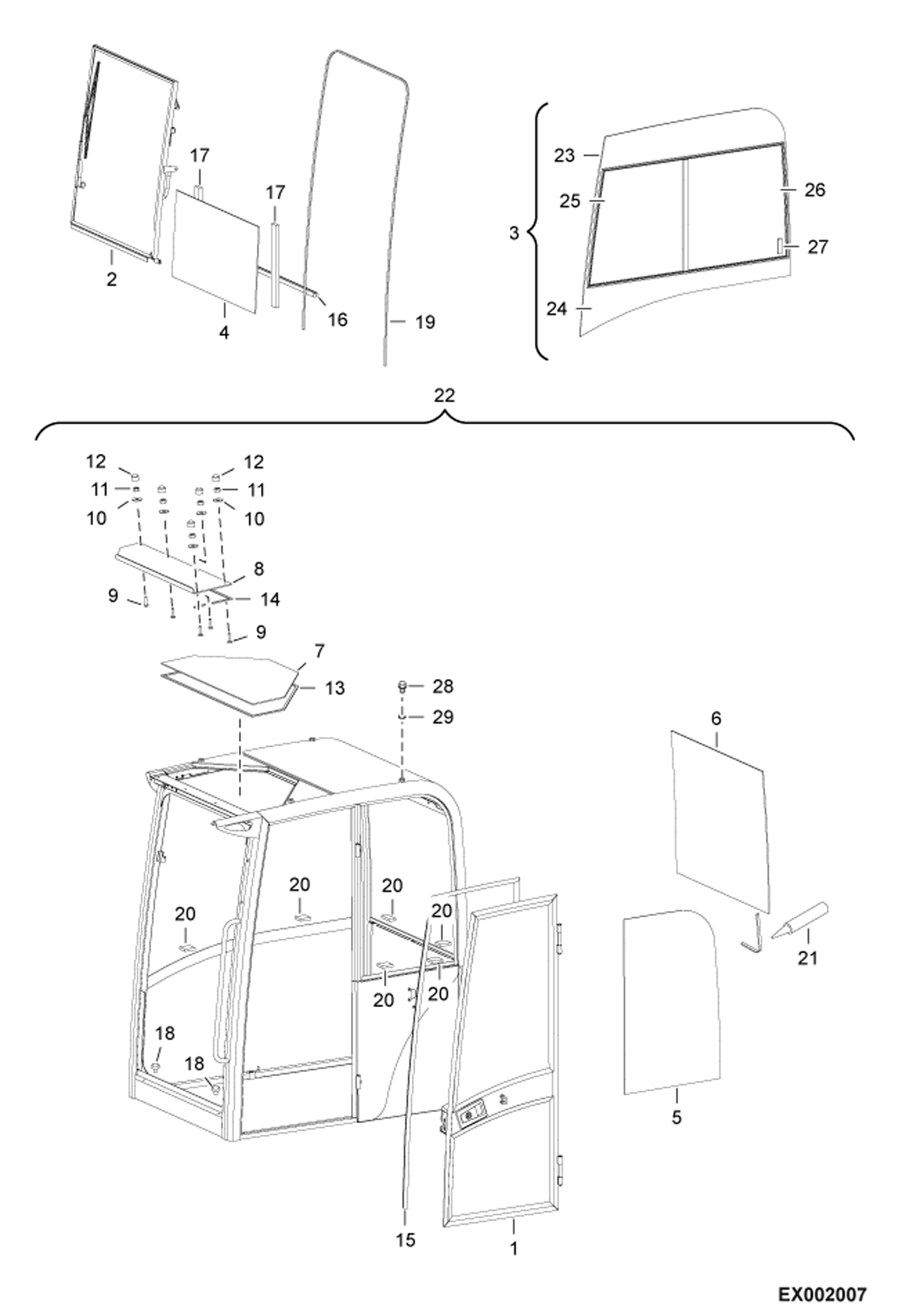

Запчасти Bobcat 442 CAB WINDOWS MAIN FRAME

1

5388665149

DOOR CMPL See Illustration CAB DOOR/ EX002011

2

5388665197

ROLLER See Illustration CAB ROLLER PANE/ EX002010

3

5388665396

SLIDING PANE W/Ref. 24-28

4

5103660551

GLASS

5

5103660594

GLASS

6

5103661338

WINDOW, CAB REAR Was 5388665054 - A

7

5388662921

PANE

8

5388664045

PANE

9

5388662776

BOLT

10

5388662623

WASHER

11

5388665072

NUT

12

5388662926

CAP

13

5388662927

SEAL

14

5388662928

SEAL

15

5388662929

SEAL

16

5388662930

SEAL

17

5388662931

SEAL

18

5388661482

RUBBER BLOCK

19

5388665037

SEAL

20

5388665035

SUPPORT

21

MCS008042A

KIT, WINDOW GLUE

22

5388664165

CAB, ASSY WHITE white - Was 5388664155 - A

23

5103661313

GLASS fixed at the top

24

5103661314

GLASS fixed at the bottom

25

5103661312

GLASS fixed centre in front

26

5103661311

GLASS sliding glass

27

5388665263

DETENT HANDLE

28

5558247036

SCREW PLUG

29

1970956618

O-RING
