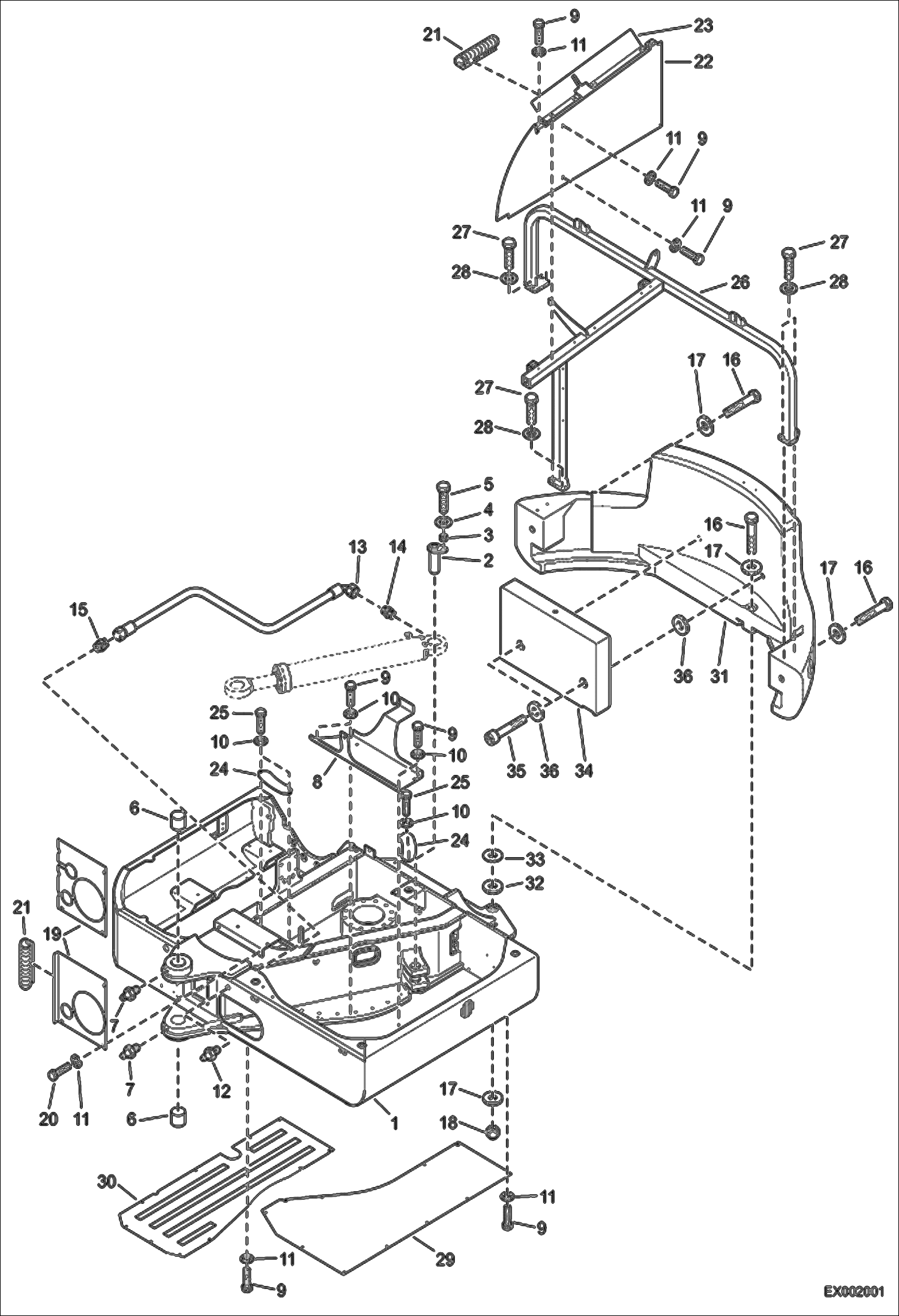

Запчасти Bobcat 442 UPPERCARRIAGE MAIN FRAME

1

6283005001

UPPER CARRIAGE

2

0154624120

PIN

3

0156029033

SPACER

4

1343707061

WASHER

5

1008707829

BOLT

6

5809625676

BUSHING

7

1607003006

GREASE NIPPLE

8

6190006120

BATTERY BRACKET

9

1008707018

BOLT

10

1290707018

WASHER

11

1343707057

WASHER

12

1607003010

GREASE NIPPLE

13

0190006009

HOSE

14

1915060582

ADAPTER

15

1915060551

FITTING

16

1007707355

BOLT

17

1343707069

WASHER

18

1212251018

NUT

19

6234006030

COVER

19

6234006130

SHEET-METAL

20

1008707618

BOLT

21

7025098

SEAL, BULK/MTR - A

22

6190006034

PLATE

23

6190006036

PLATE

24

6190006025

PLATE

25

1008707817

BOLT

26

0234528050

FRAME

27

1008707030

BOLT

28

1343707059

WASHER

29

6190028071

COVER

30

6280028073

COVER

31

0190147010

COUNTERWEIGHT

32

0209006046

WASHER

33

6209006047

WASHER

34

0234128021

COUNTERWEIGHT option

35

1045707442

BOLT option

36

1343707065

WASHER option
