Запчасти Bobcat 442 OPERATOR CAB - CEMENTED PANES - EQUIPMENT 2 MAIN FRAME

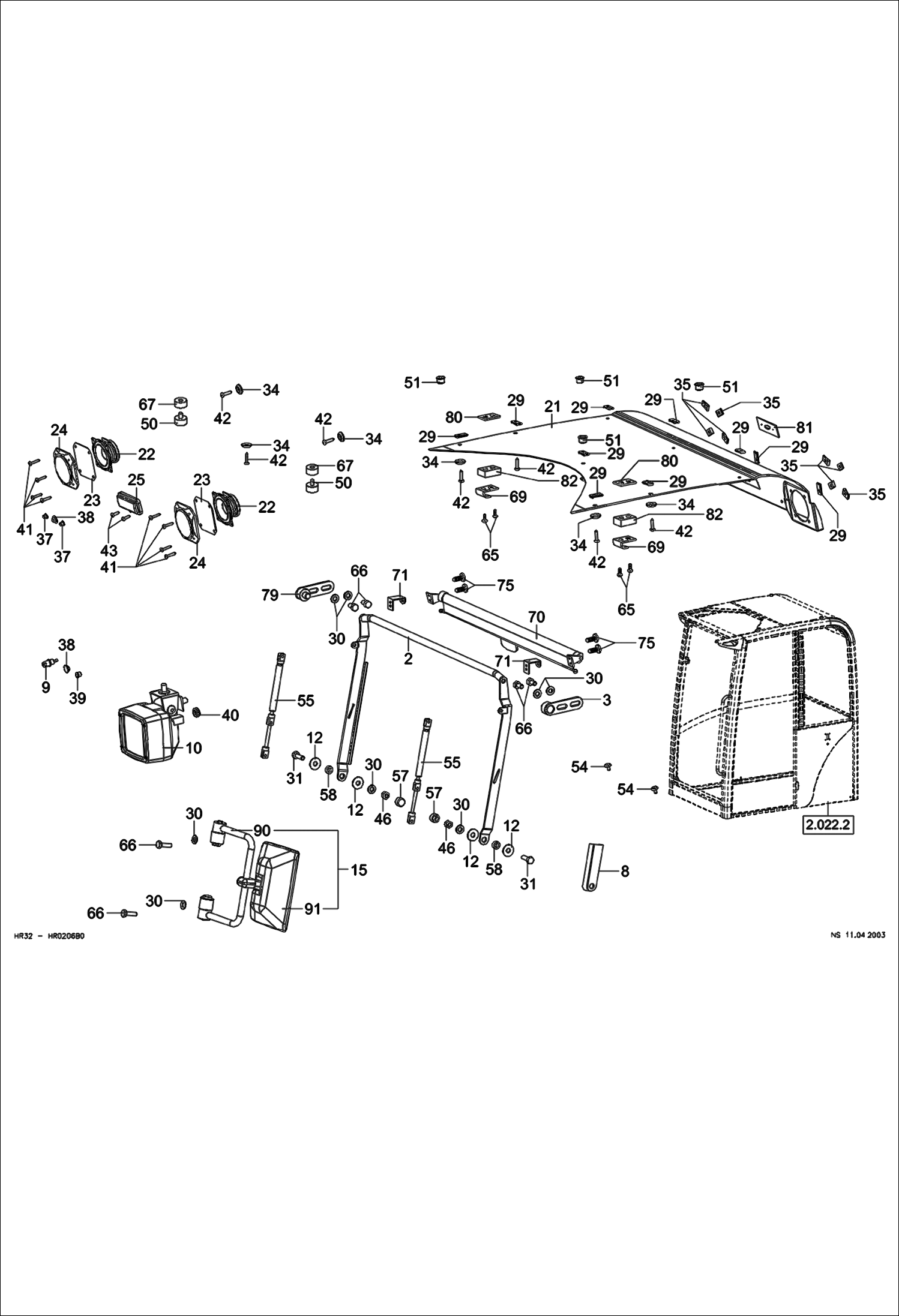

Схема запчастей Bobcat 442 - OPERATOR CAB - CEMENTED PANES - EQUIPMENT 2 MAIN FRAME

Артикул

Название

Примечание

Количество

2

5388665063

FRAME

3

5388665061

HOLDER

8

5388665160

PROTECTION COVER

9

5388662108

NOZZLE

10

5350661223

WORKING LIGHT Was 5388660811 - A

10

1813000035

BULB 12volt-55w

12

1307707018

WASHER

15

5388662087

MIRROR W/Ref. 65,66

21

5388665161

COVERING

22

5388662550

LOUDSPEAKER

23

5388662814

DUST PROTECTION

24

5388662575

LOUDSPEAKER COVER

25

5388662690

INTERIOR LIGHT

29

5388662515

CLIP

30

1290707018

WASHER

31

5388661452

BOLT

34

5388662561

WASHER

35

5388662687

CLIP

37

5388662794

CAP

38

5388662057

PLUG

39

5388662649

CAP

40

5388661429

WASHER RUBBER

41

5388662945

BOLT

42

5388662046

BOLT

43

5388662796

BOLT

46

5388662946

NUT

50

5388662947

STOP

51

5388662323

COVER

54

5388661482

RUBBER BLOCK

55

5388662572

GAS PRESSURE SPR.

57

5388661422

GUARD CAP

58

5388662892

BUSHING

65

5388665162

BOLT

66

1008707018

BOLT Was 5388665173 - A

67

5388662777

SPACER RING

69

5388665045

HOLDER

70

5388665044

SUN VISER

71

5388665043

HOLDER

75

5388662880

BOLT

79

5388665046

HOLDER

80

5388665163

PLATE

81

5388665164

PLATE

82

5388665165

BLOCK

90

5388661453

ROD MIRROR

91

5388661484

MIRROR

Выбрано товаров: 45
