Запчасти Bobcat 442 HYDRAULIC INSTALLATION Hydraulic Quick Mount Hitch HS08 - Mono - Boom ACCESSORIES & OPTIONS

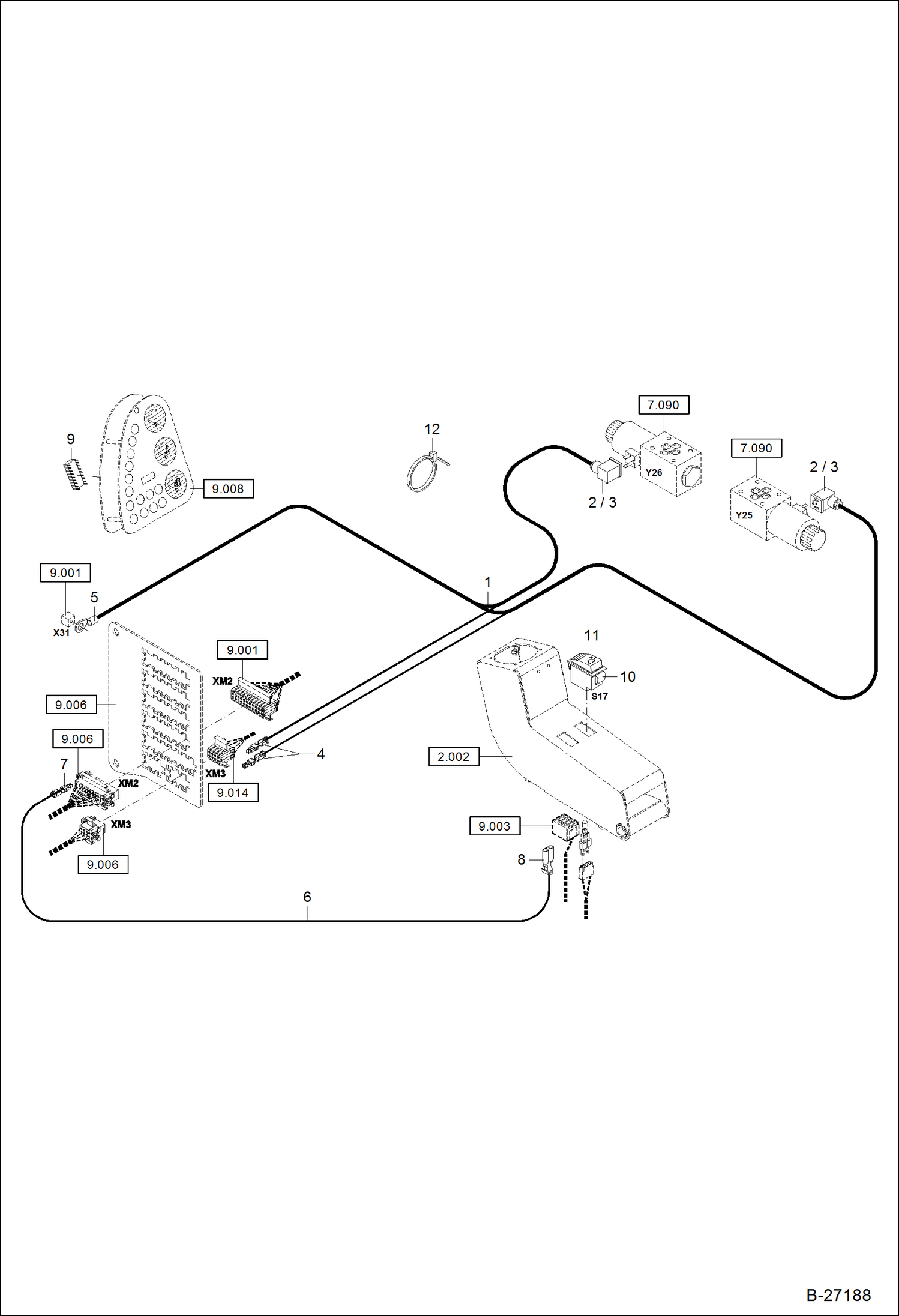

Схема запчастей Bobcat 442 - HYDRAULIC INSTALLATION Hydraulic Quick Mount Hitch HS08 - Mono - Boom ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

0234221120

HARNESS, MOUNT QUICK W/Ref. 2-5

2

5552659550

BOX

3

5552659513

SEAL

4

5350249552

CONNECTOR

5

5350246610

CABLE CONNECTOR

6

0234221121

HARNESS, MOUNT QUICK W/Ref. 7 & 8

7

5350249552

CONNECTOR

8

5350246805

TERMINAL FEMALE

9

E-PROM NSS

10

5050651370

ROCKER SWITCH

11

5358650288

SYMBOL

12

5653093560

BINDER

Выбрано товаров: 12
