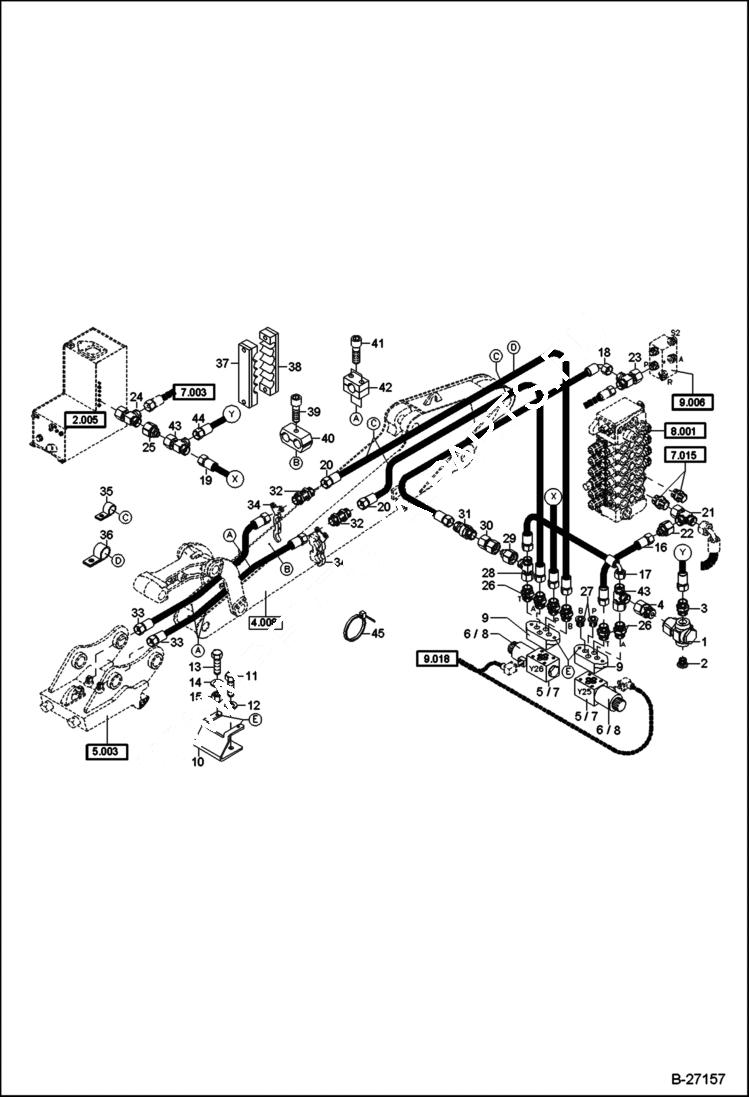

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Hydraulic Quick Mount Hitch HS08 - Mono - Boom ACCESSORIES & OPTIONS

1

5050165400

VALVE, LIMITATION PRESSURE

2

1912060105

PLUG

3

1915060558

FITTING

4

1938060452

FITTING

5

5003700013

DIRECT CONTR VALVE

6

5003700025

COIL

7

5003700026

NUT W/SEAL

8

5003700027

SEAL KIT

9

5003700003

CONNECTING PLATE

10

0209248026

VALVE BRACKET

11

1008707018

BOLT

12

1343707057

WASHER

13

1008707513

BOLT

14

1290707014

WASHER

15

1212251009

NUT

16

4158145240

HOSE

17

4158046351

HOSE

18

4506140371

HOSE

19

4158070240

HOSE

20

4158810301

HOSE

21

1919060355

FITTING

22

1934060162

FITTING

23

1919060351

FITTING

24

1919060353

FITTING

25

1934060155

FITTING

26

1915060257

FITTING

27

1912060452

PLUG

28

1919060352

FITTING

29

1934060152

FITTING

30

1915060157

FITTING

31

1915991752

ONE-WAY VALVE

32

1913060152

FITTING

33

4906135308

HOSE

34

0238337005

HOSE CLAMP Was 6238337005

35

5000095200

HOSE CLIP

36

5000096800

HOSE CLAMP

37

0190126013

CLIP

38

0190126014

CLIP

39

1045707618

BOLT

40

5660199766

HOSE CLIP

41

1045707713

PAN HEAD SCREW

42

5660199611

HOSE CLAMP

43

1919060352

FITTING

44

4158070240

HOSE

45

5653093560

BINDER
