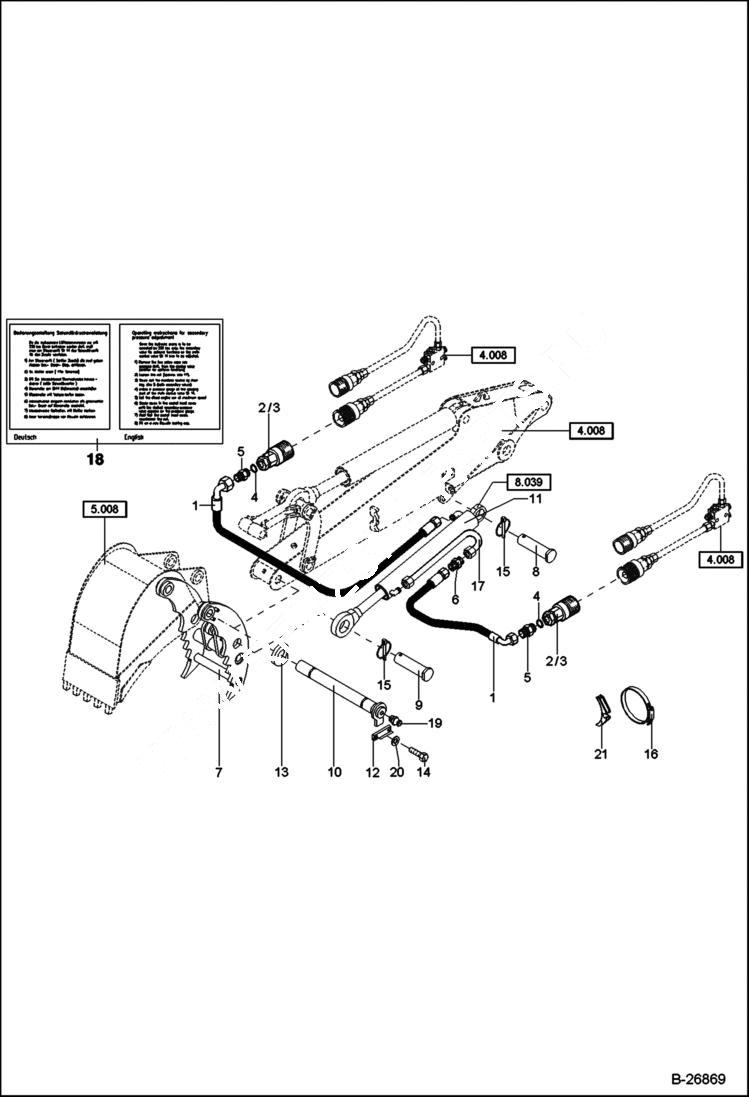

Запчасти Bobcat 442 HYDRAULIC INSTALLATION With Prong ACCESSORIES & OPTIONS

1

4260093374

HOSE

2

5260301140

COUPLING SOCKET

3

5260301147

COVER NUT

4

1970956719

O-RING

5

1915060562

FITTING

6

1915060856

FITTING

7

5018001098

PRONG

8

5018001099

PIN

9

5018001100

PIN

10

5018001101

PIN, PIVOT CLAMP

11

5018001104

CYLINDER, CLAMP W/Ref. 16, 17, 18 & 21

12

5018001102

BRACKET

13

5018001103

WASHER

14

1008707529

BOLT

15

5605186500

RETAINER

16

5660097300

CLIP HOSE

17

5018001091

TUBE

18

OPERATOR MANUAL NLA - Was 6190244060 - A

19

1607010008

GREASE ZERK

20

1343707061

WASHER

21

0110012050

RUBBER LAYER
