Запчасти Bobcat 442 HYDRAULIC INSTALLATION With Grab Suspension Quick Mount Hitch ACCESSORIES & OPTIONS

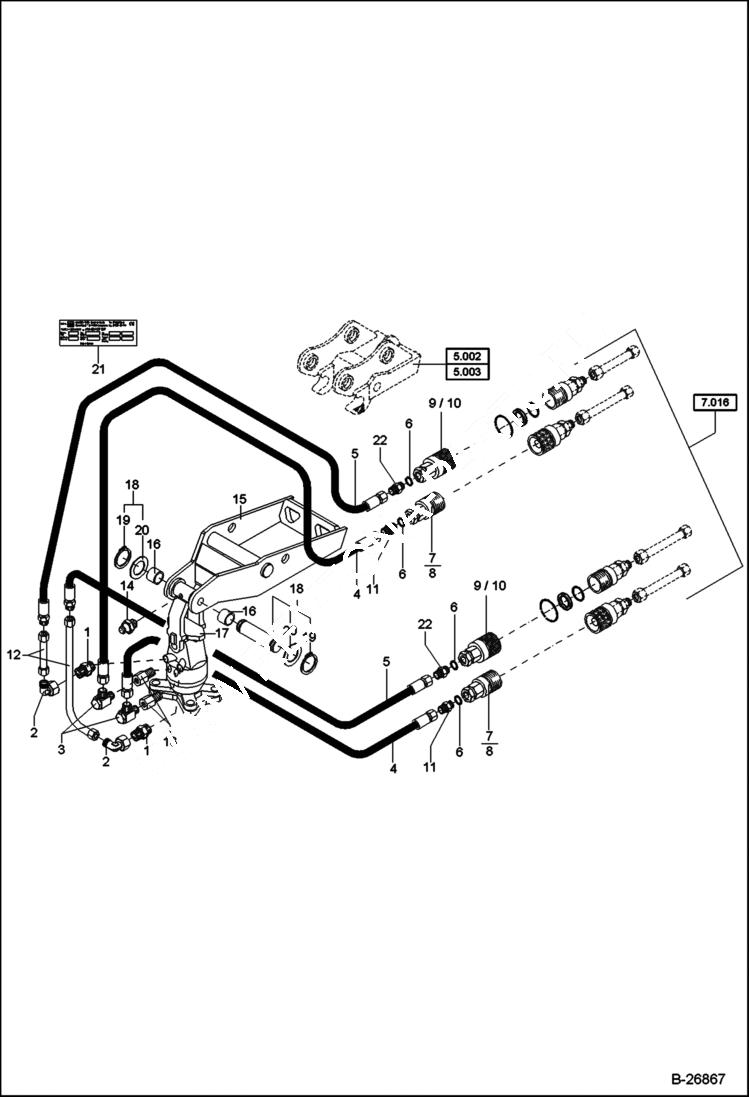

Схема запчастей Bobcat 442 - HYDRAULIC INSTALLATION With Grab Suspension Quick Mount Hitch ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

1915060264

FITTING

2

1924060154

ELBOW FITTING

3

1921060558

ELBOW

4

4260178359

HOSE

5

4262180383

HOSE

6

1970956719

O-RING

7

5260301140

COUPLING SOCKET

8

5260301147

COVER NUT

9

5260301145

COUPLING PLUG

10

5260301149

PLUG

11

1915060562

FITTING

12

5440000409

TUBELINE

13

5440000408

REDUCER

14

5440000006

GREASE ZERK

15

ADAPTER NLA - Was 5440000457 - A

16

5440000460

BUSHING, PIERCING

17

SUSPENSION NLA - Was 5440000458 - A

18

5440000459

PIN W/Ref. 19 & 20

19

CIRCLIP NSS

20

WASHER NSS

21

NAME PLATE NSS

22

1915060564

FITTING

Выбрано товаров: 22
