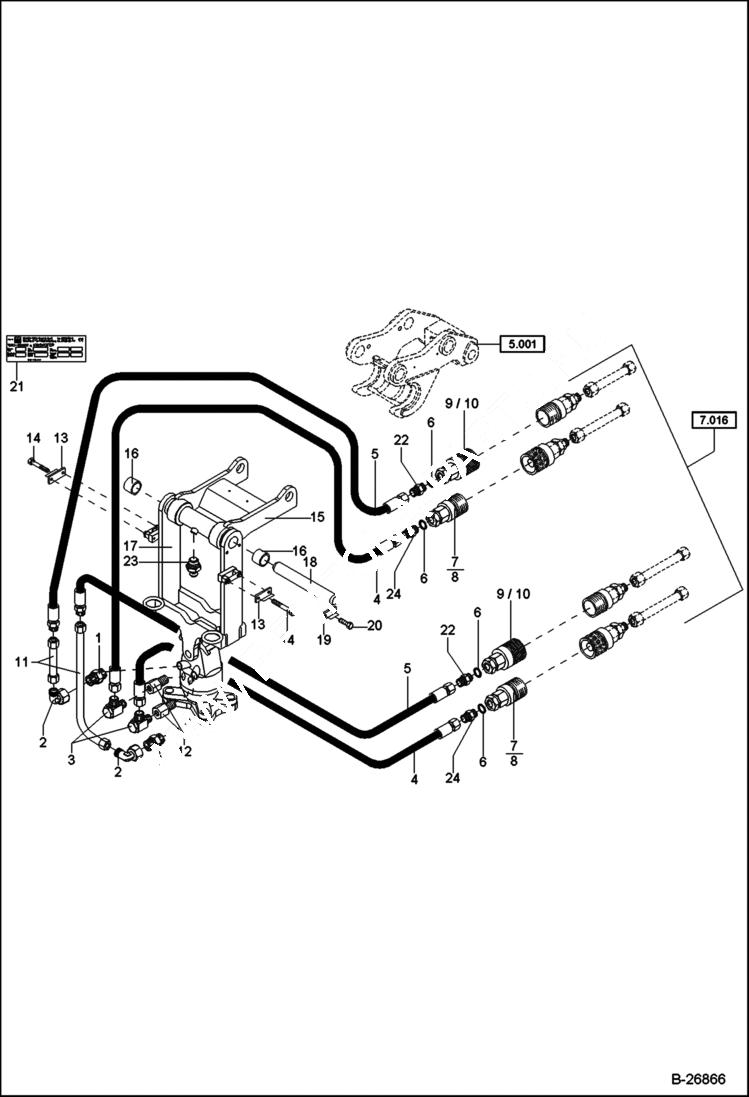

Запчасти Bobcat 442 HYDRAULIC INSTALLATION With Grab Suspension Quick Mount Hitch - Terex ACCESSORIES & OPTIONS

1

1915060264

FITTING

2

1924060154

ELBOW FITTING

3

1921060558

ELBOW

4

4260168359

HOSE

5

4262180383

HOSE

6

1970956719

O-RING

7

5260301140

COUPLING SOCKET

8

5260301147

COVER NUT

9

5260301145

COUPLING PLUG

10

5260301149

PLUG

11

5440000409

TUBELINE

12

5440000408

REDUCER

13

5440000406

BRACKET

14

5440000412

BOLT

15

5440000272

ADAPTER

16

5440000273

BUSHING

17

5440000274

SUSPENSION W/Ref. 18-20

18

5440000275

PIN

19

5440000276

AXLE HOLDER

20

5440000277

BOLT

21

NAME PLATE NSS

22

1915060564

FITTING

23

5440000006

GREASE ZERK

24

1915060562

FITTING
