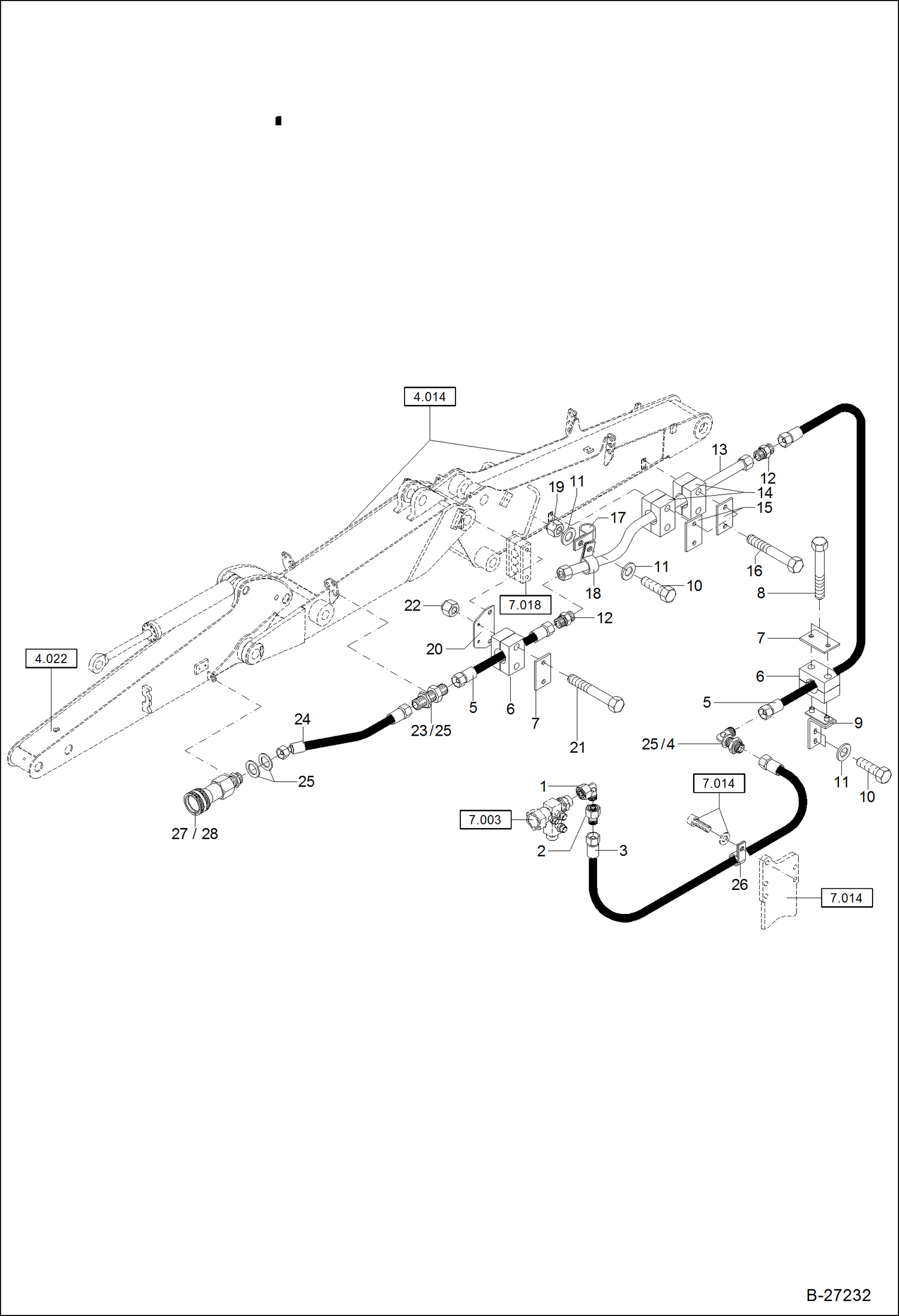

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Pressureless Return Line Circular ACCESSORIES & OPTIONS

1

1924060158

ELBOW FITTING

2

1934060185

FITTING

3

4125202156

HOSE

4

1931060157

FITTING

5

4125150189

HOSE

6

5660199805

HOSE CLIP

7

5660200150

COVER

8

1007707514

BOLT

9

0190207005

BRACKET

10

1008707018

BOLT

11

1343707057

WASHER

12

1915060860

FITTING

13

0190208015

TUBELINE

14

5660199802

HOSE CLIP

15

5660200140

COVER PLATE

16

1007707214

BOLT

17

5000095800

HOSE CLIP

18

5000136700

HOSE CLIP

19

1212251011

NUT

20

6190126017

BRACKET

21

1007707714

BOLT

22

1212251009

NUT

23

1913060157

FITTING

24

4125117151

HOSE

25

1938060388

SCREW NECK

26

5000210420

HOSE CLIP

27

5260308010

COUPLING SOCKET

28

5260308022

DUST CAP
