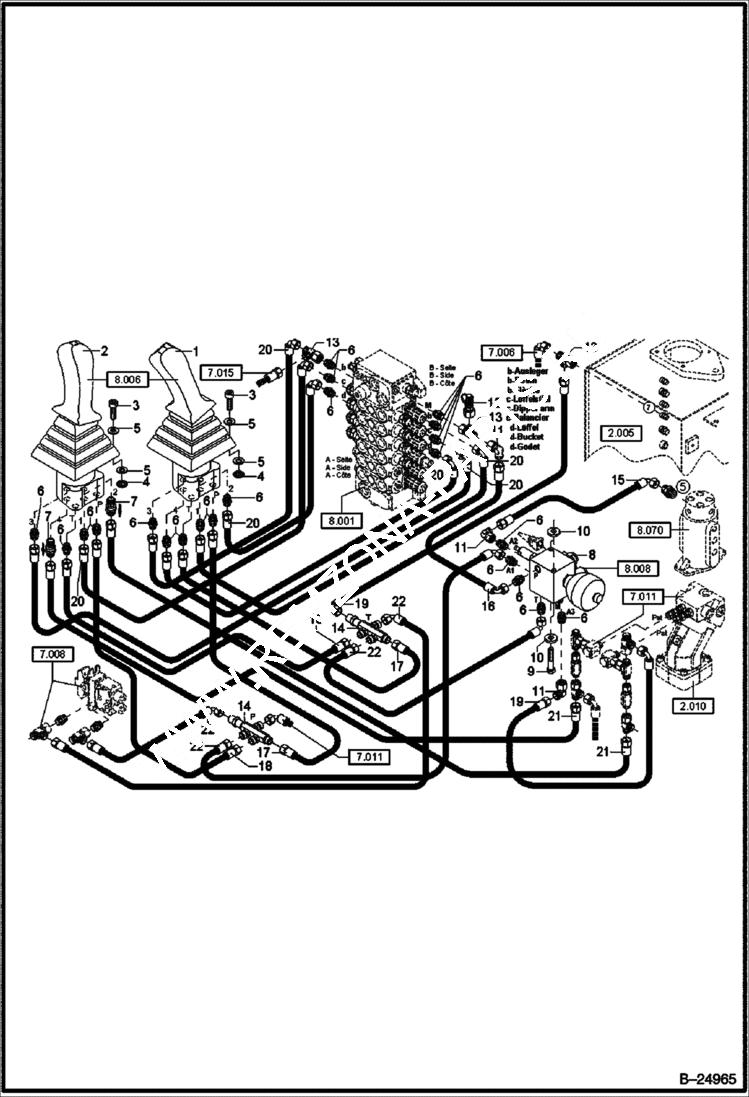

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Pilot Control ACCESSORIES & OPTIONS

1

5606658882

JOYSTICK RH

2

5606658880

JOYSTICK LH

3

1045707213

BOLT

4

1290940014

WASHER

5

1290707014

WASHER

6

1915060255

FITTING

7

5260310222

ONE WAY VALVE

8

5368632563

VALVE ASSEMBLY

9

1008707825

BOLT

10

1343707059

WASHER

11

1924060151

FITTING

12

5066234200

METER CONNECTION

13

1919060351

FITTING

14

5260310255

MANIFOLD

15

4506235351

HOSE

16

4256320371

HOSE

17

4506090240

HOSE

18

4506137240

HOSE

19

4506320351

HOSE

20

4506450351

HOSE

21

4506400356

HOSE

22

4256033371

HOSE, HYD Was 4506033351 - A
