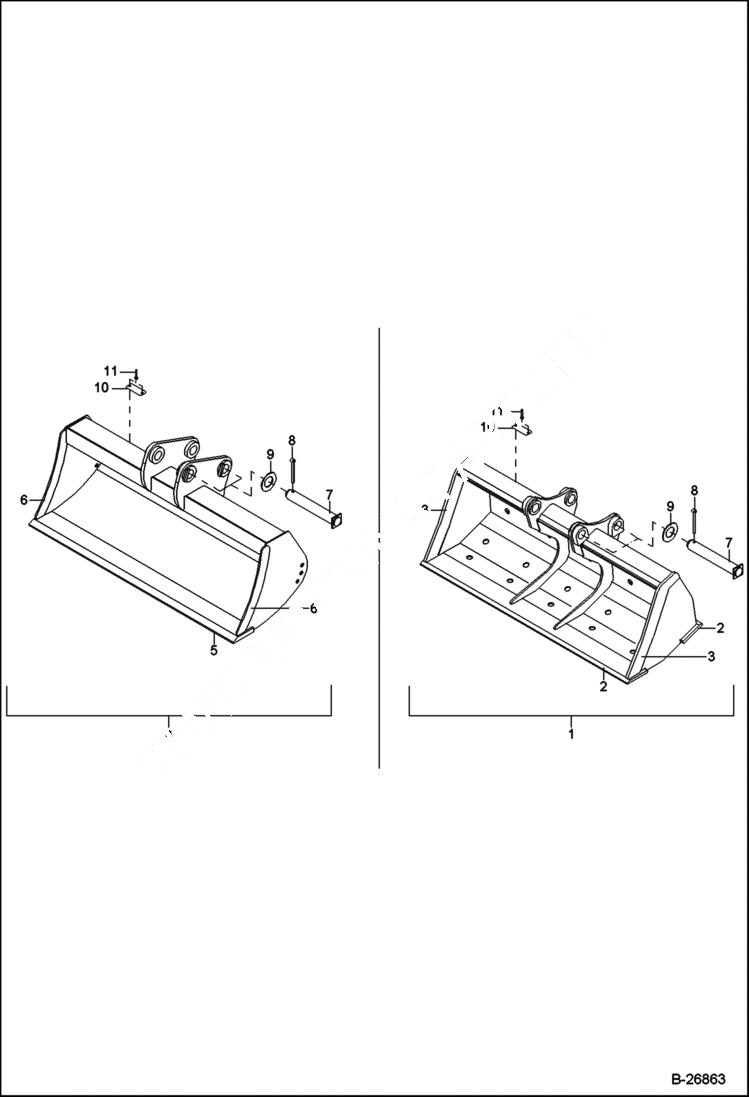

Запчасти Bobcat 442 DITCH CLEANING BUCKET Direct Mounted ACCESSORIES & OPTIONS

1

DITCH CLEANING BUCKET NLA - 1500mm - W/Ref. 2, 3, 10 & 11 - Was 6223226001 - A

2

6210908007

CUTTING EDGE

3

0223226008

CUTTING EDGE

4

6190288000

DITCH CLEANING BUCKET 1500mm - W/Ref. 6, 7, 10 & 11

5

5018001003

CUTTING EDGE

6

5018001057

BLADE

7

0211005045

PIN

8

1395707642

COTTER PIN

9

1309412430

WASHER

10

NAME PLATE NSS

11

RIVET NSS
