Запчасти Bobcat 442 BUCKET Swiveling - Quick Mount Hitch - Terex 1500mm ACCESSORIES & OPTIONS

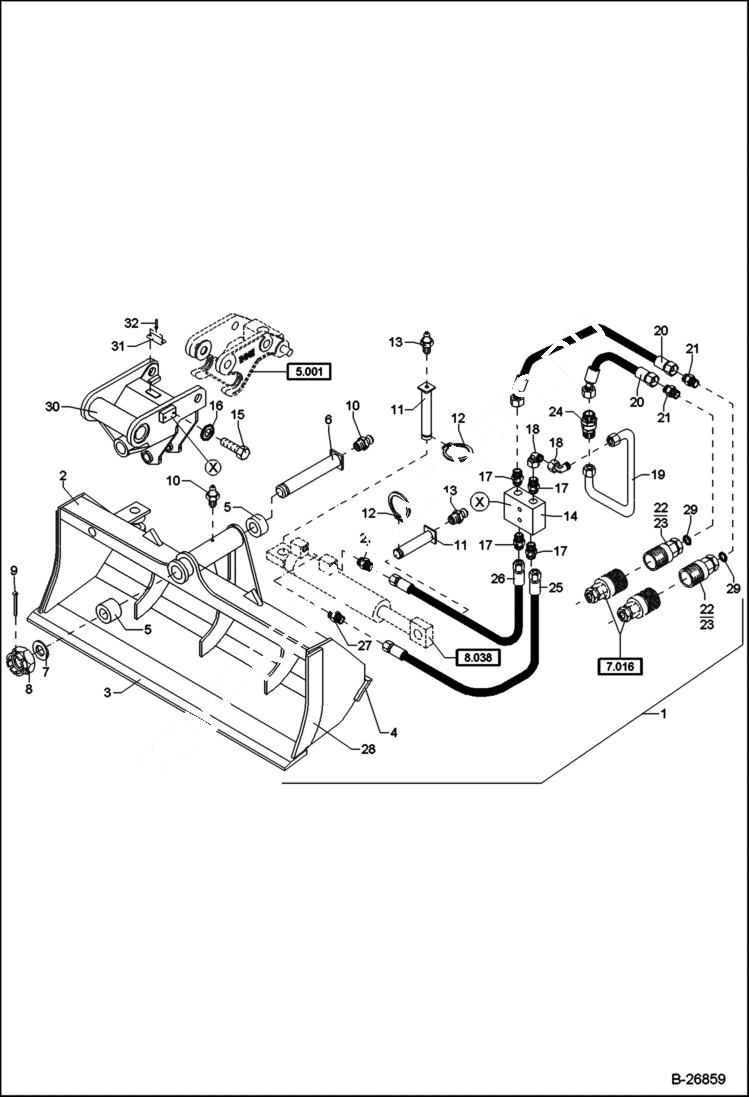

Схема запчастей Bobcat 442 - BUCKET Swiveling - Quick Mount Hitch - Terex 1500mm ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

SWIVELLING BUCKET NLA - Was 6190246000 - A

2

BUCKET NLA - Was 5018001002 - A

3

5018001003

CUTTING EDGE

4

5018001004

CUTTING EDGE

5

5018001005

CLAMPING BUSH

6

5018001006

PIN

7

1290707076

SHIM

8

1218251840

CASTLE NUT

9

1395707838

COTTER PIN

10

1607003010

GREASE NIPPLE

11

5018001007

PIN

12

5018001008

CIRCLIP

13

1607003008

GREASE NIPPLE

14

5018001014

VALVE

15

5018001015

BOLT

16

5018001016

WASHER

17

5018001017

FITTING

18

5018001018

FITTING

19

5018001019

HYDR. PIPE

20

5018001020

HYDR. HOSE

21

5018001021

FITTING

22

5260301140

COUPLING SOCKET

23

5260301147

COVER NUT

24

5018001024

FITTING

25

5018001060

HOSE

26

5018001061

HOSE

27

5018001017

FITTING

28

5018001028

CUTTING EDGE

29

1970956719

O-RING

30

5018001001

SWING ADAPTER

31

NAME PLATE NSS

32

RIVET NSS

Выбрано товаров: 32
