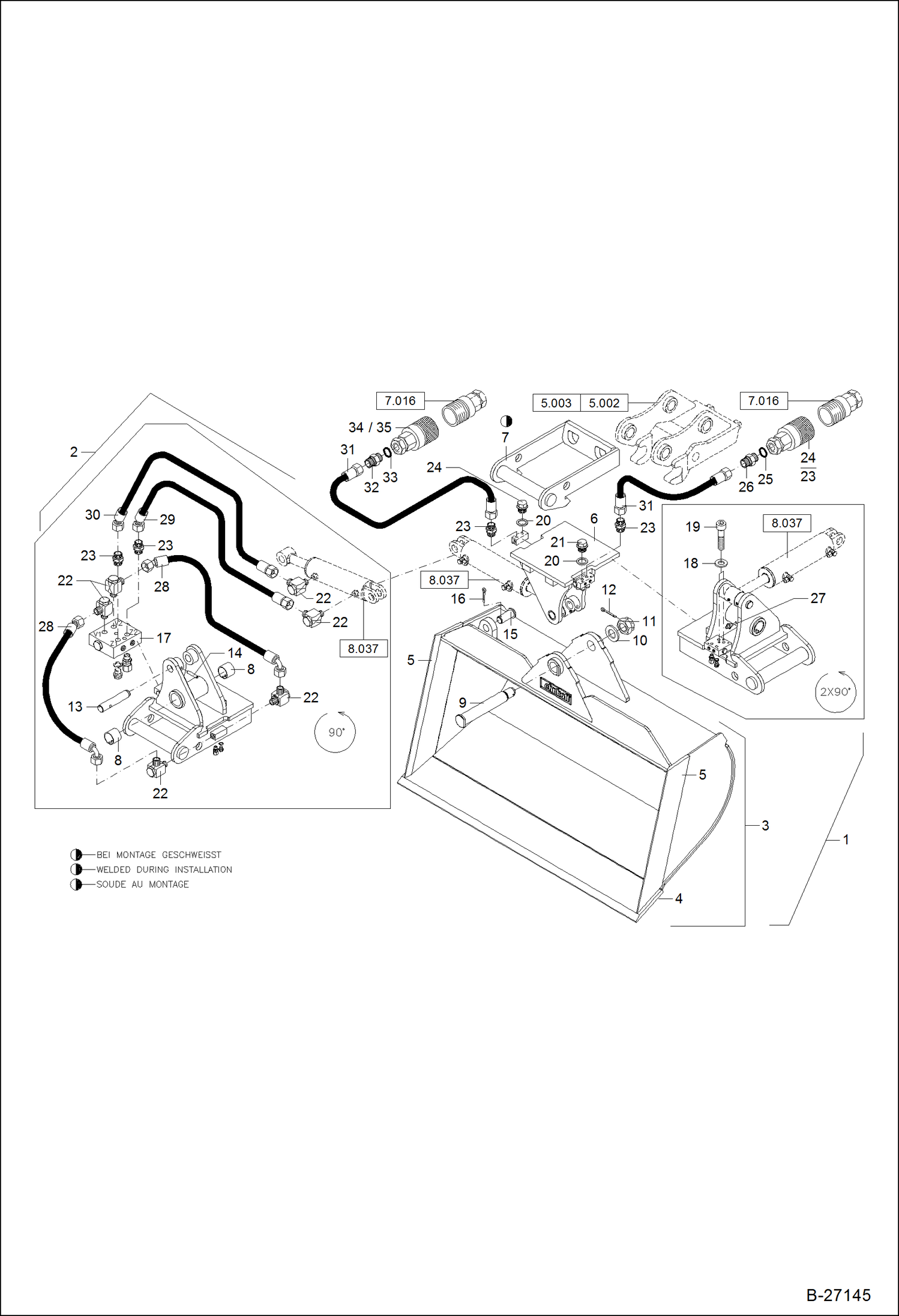

Запчасти Bobcat 442 BUCKET Swivelling - Quick Release 1500mm ACCESSORIES & OPTIONS

1

BUCKET, SWIVEL See Illustration HYDRAULIC CYLINDER/ B27185 - NLA - Swivelling - Includes Ref. 2 & 31 - 35 - A

2

5455660775

BUCKET, SWIVEL See Illustration HYDRAULIC CYLINDER/ B27185 - Swivelling - Includes Ref. 3, 6 - 30

3

5455700094

BUCKET, 1500MM 1500mm - W/Ref. 4 & 5

4

5455660788

EDGE, CUTTING WELD-ON 200MM 200 x 20

5

5455660789

EDGE, CUTTING WELD-ON SIDE 150MM 150 x 16

6

5455660790

MOUNT, BUCKET

7

5455660791

ADAPTER, FRAME Frame

8

5455660792

BUSHING, WEAR

9

5455660793

PIN, BUCKET

10

5455660794

SHIM

11

5455660795

NUT

12

5455660796

PIN, RETAINER

13

5455660797

PIN, BUCKET

14

5455660798

PIN, BUCKET

15

5455660799

PIN, BUCKET

16

5455660800

PIN, RETAINER

17

5455660801

VALVE, CONTROL

18

5455660802

WASHER, SPRING

19

5455660803

BOLT

20

5455660804

RING, SEAL

21

5455660805

PLUG

22

5455700010

ELBOW

23

5455660813

PLUG

24

5455660812

PLUG, COUPLING

25

5455660811

O-RING

26

5455660810

FITTING

27

5455700006

FITTING, GREASE

28

5455660806

HOSE

29

5455660807

HOSE

30

5455660808

HOSE

31

5455660829

HOSE
