Запчасти Bobcat 442 BUCKET With Quick Release ACCESSORIES & OPTIONS

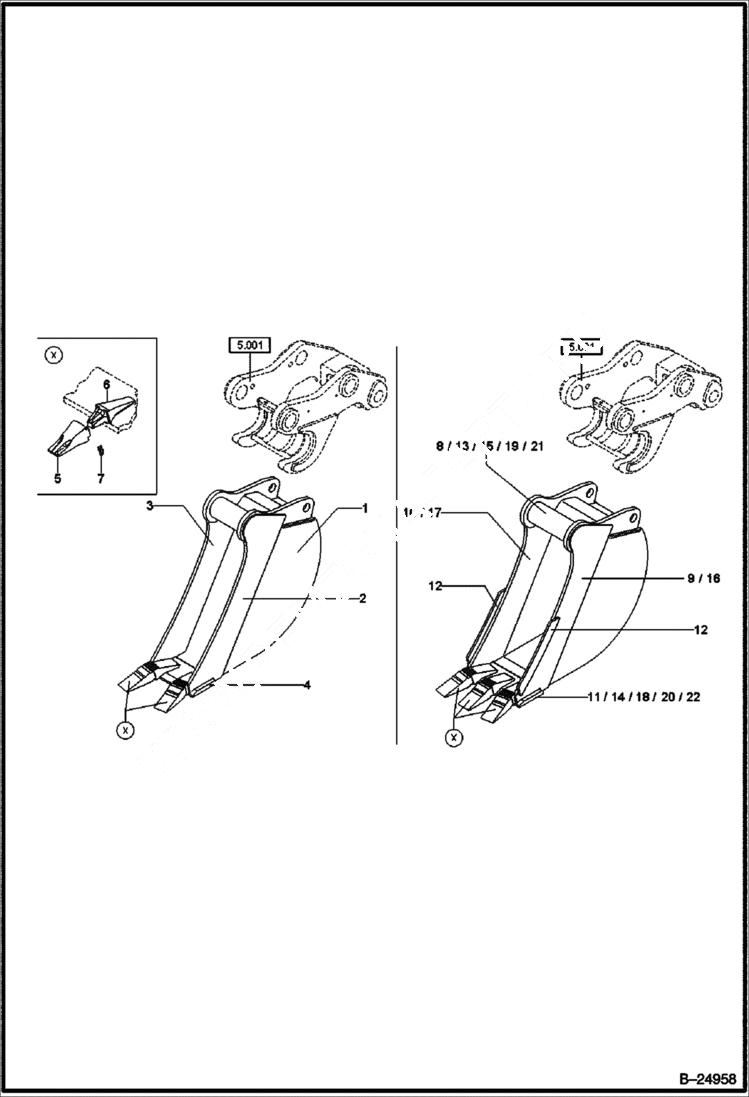

Схема запчастей Bobcat 442 - BUCKET With Quick Release ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

BUCKET - 290MM NSS - Includes Ref. 2-7 - Was 6203229000 - A

2

6203229004

SIDE BLADE RIGHT

3

6203229005

SIDE BLADE LEFT

4

6203229007

BLADE W/Ref. 5-7

5

5455660445

TOOTH, BUCKET

6

5455660446

BRACKET tooth holder

7

5455660447

LOCK

8

BUCKET - 350MM NLA - Includes Refs. 5-7 & 9-12 - Was 6203235000 - A

9

0203241004

SUPPORT BLADE Right side

10

SUPPORT BLADE NLA - Was 0203241005 - A

11

6203235007

BLADE W/Ref. 5-7

12

0203290009

CUTTING EDGE

13

BUCKET - 450MM NLA - Includes Ref. 5-7, 9 10, 12 & 14 - Was 6203241000 - A

14

6203241007

BLADE W/Ref. 5-7

15

BUCKET - 600MM NLA - Include Ref. 5-7, 12 & 16- 18 - Was 6203260000 - A

16

0203290004

SUPPORT BLADE Right side

17

0203290005

SUPPORT BLADE Left side

18

6203260007

BLADE W/Ref. 5-7

19

BUCKET - 800MM NLA - Include Ref. 5-7, 16, 17 & 20 - Was 6203280000 - A

20

6203280007

BLADE W/Ref. 5-7

21

BUCKET - 900MM NLA - Include Ref. 5-7, 9, 10, 12 & 22 - Was 6203290000 - A

22

6203290007

BLADE W/Ref. 5,6 & 7

Выбрано товаров: 22
