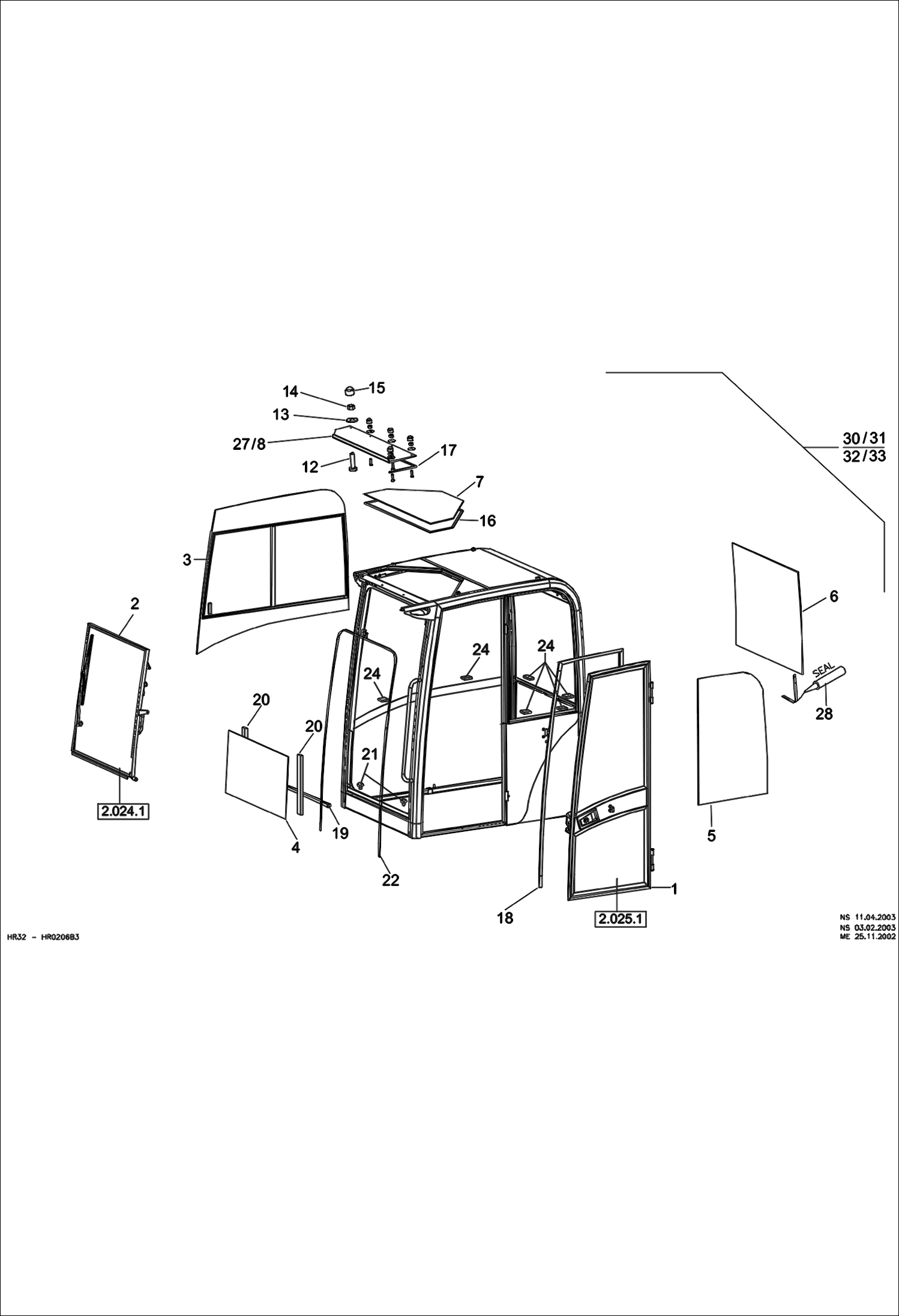

Запчасти Bobcat 442 OPERATOR CAB - CEMENTED PANES - GLASS MAIN FRAME

1

5388665149

DOOR CMPL See Illustration OPERATOR CAB - CEMENTED PANES - DOOR/ HR02069R - A

2

5388665638

ROLLER PANE See Illustration OPERATOR CAB - CEMENTED PANES - ROLLER PANE/ HR02069Q Was 5388665041 - A

3

5388665396

SLIDING PANE Was 5388665056 - A

4

5388665024

GLASS

5

5103660594

GLASS Was 5388665055 - A

6

5103661338

WINDOW, CAB REAR Was 5388665054 - A

7

5103661360

PANE Was 5388662921 - A

8

5388662970

PANE standard

12

5388662776

BOLT

13

5388662623

WASHER

14

5388665072

NUT

15

5388662926

CAP

16

5388662927

SEAL 10 x 5 x 2230

17

5388662928

SEAL 10 x 3 x 1100

18

5388662929

SEAL 3600 mm

19

5388662930

SEAL

20

5388662931

SEAL 20 x 15 x 470

21

5388661482

RUBBER BLOCK

22

5388665037

SEAL

24

5388665035

SUPPORT

27

5388664045

PANE circular

28

SEAL NLA - for windows - Was MCS008042A - A

30

5388661141

OPERATOR'S CAB CPL. WHITE Was 5388664078 - A

32

5388664165

CAB, ASSY WHITE white - Was 5388664155 - A
