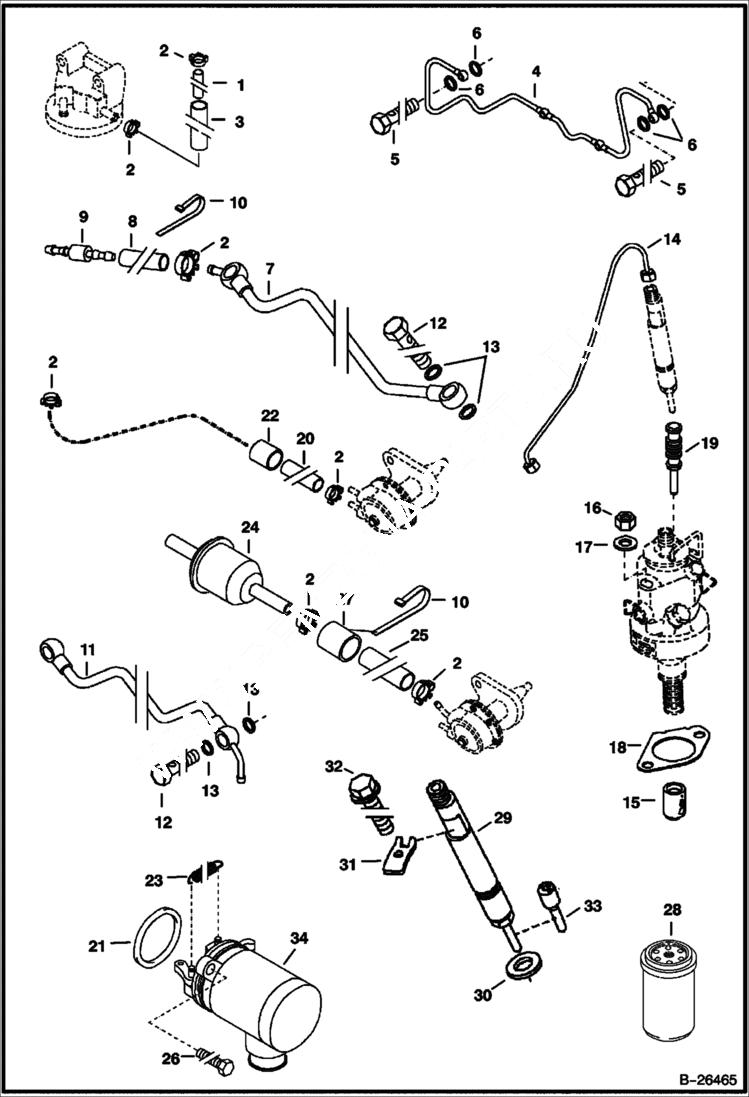

Запчасти Bobcat 442 FUEL INJECTION SYSTEM POWER UNIT

1

6688188

HOSE

2

6688171

CLIP

3

6688207

HOSE

4

6688282

TUBELINE

5

6688210

SCREW

6

2FM10135

SEAL RING

7

6688284

TUBELINE, FUEL

8

6688161

HOSE BULK/METER

9

6688195

CONNECTOR

10

6681421

CLAMP, HOSE

11

6688292

FUEL LINE

12

6666396

SCREW

13

6672933

SEAL RING Was 6688193 - A

14

6688293

HIGH PRESSURE PIPE

15

6688319

ROLLER TAPPET

16

1DM8

NUT

17

6666453

WASHER

18

6666512

SHIM .2mm

18

6666513

SHIM .3mm

18

6688308

GASKET 0,40mm

18

6688309

GASKET 0,50mm

18

6666514

SHIM .4mm

18

6688310

GASKET 0,60mm

18

6666515

SHIM .5mm

18

6688311

GASKET 0,70mm

18

6666516

SHIM .6mm

18

6688312

GASKET 0,80mm

18

6666517

SHIM .7mm

18

6688288

GASKET 0,90mm

18

6666518

SHIM .8mm

18

6688289

GASKET 1,00mm

18

6688258

GASKET 1,05mm

18

6688313

GASKEKT 1,10mm

18

6688259

GASKET 1,15MM 1,15mm

18

6688314

GASKET 1,20mm

18

6688290

GASKET 1,25mm

18

6688318

GAKSET 1,30mm

19

6688299

PLUG

20

6688196

HOSE

21

6666409

O-RING

22

6688208

HOSE

23

6666495

SPRING

24

6688168

FUEL FILTER

25

6688170

HOSE

26

6688147

BOLT

27

6688206

HOSE

28

6665603

FILTER

29

6688302

FUEL INJECTOR

30

6688300

SEAL

31

6688277

BRACKET

32

6681074

BOLT

33

6688291

NOZZLE

34

6688260

FUEL SHUTDOWN
