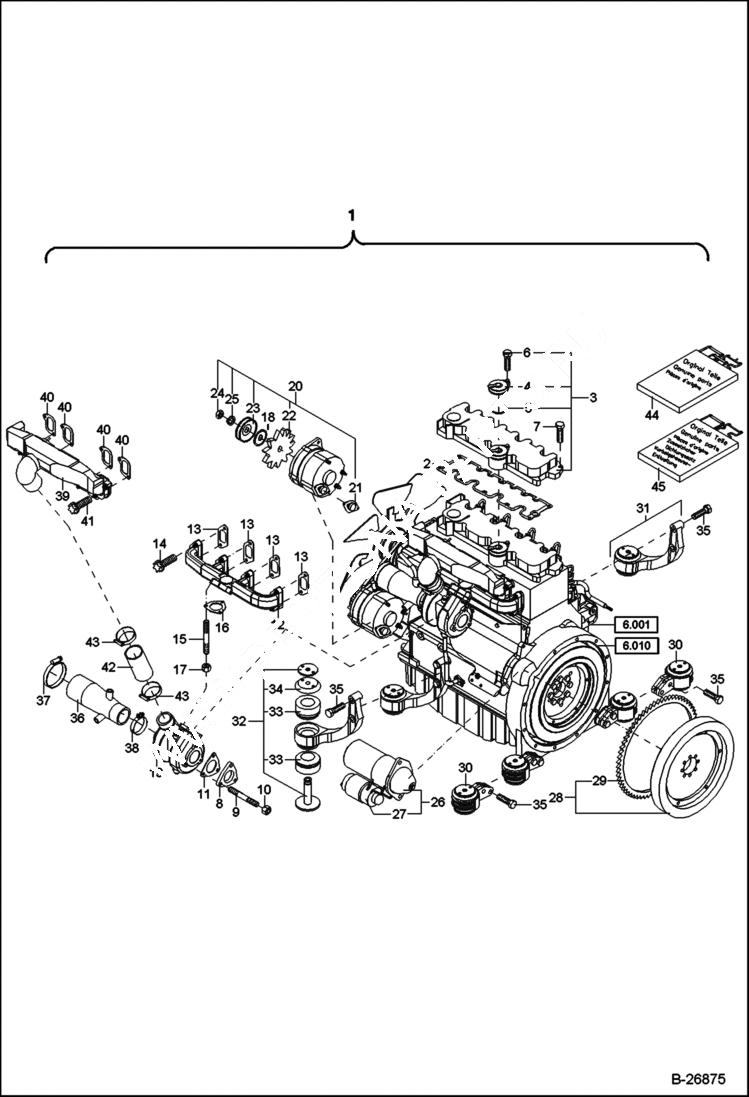

Запчасти Bobcat 442 ENGINE PARTS POWER UNIT

1

ENGINE, TEREX 442 NLA - Was 5411662265 - A

2

5411658001

GASKET Was 5411657056 - A

3

5411663891

COVER, HEAD CYL ENG W/Ref. 4 - 6 - Was 5411663805 - A

4

5411657057

BREATHER VALVE W/Ref. 5

5

5411663892

O-RING Was 5411663806 - A

6

5411663807

BOLT

7

5411657060

BOLT

8

5411663808

FLANGE, INTAKE

9

5411656901

STUD

10

5411657804

NUT

11

5411656449

SEAL

12

5411663809

MANIFOLD, EXHAUST

13

5411656293

SEAL

14

5411663893

BOLT Was 5411663810 - A

15

5411663811

STUD

16

5411656451

SEAL

17

5411656427

NUT

18

5411663641

RING, SUPPORT Supporting

19

5411657984

TURBOCHARGER

20

5411663461

GENERATOR W/Ref. 21 - 25

21

5411663640

RELAY, VOLTAGE

22

5411663638

FAN, ALT

23

5411663639

PULLEY, ENG

24

5411656994

NUT

25

5411656995

SPRING WASHER

26

5411657120

STARTER W/Ref. 27

27

5411657136

RELAY

28

5411657086

FLYWHEEL W/Ref. 29

29

5411657087

GEAR

30

5411663653

MOUNT, ENG W/Ref. 33 & 34 - Was 5411663189 - A

31

5411657095

MOUNTING FOOT W/Ref. 33 & 34 - Was 5411663061 - A

32

5411657094

MOUNTING FOOT Was 5411663060 - A

33

5411663451

MOUNT, RUBBER

34

5411663452

COVER, MOUNT ENG

35

5411656919

BOLT

36

5411657151

REDUCTION PIECE

37

5411656897

HOSE CLIP

38

5411656802

CLIP

39

5411663812

PIPE, SUCTION

40

5411657842

SEAL

41

5411663048

BOLT

42

HOSE

43

5411663813

CLIP, HOSE Hose

44

5411663644

KIT, GASKET

45

5411657138

GASKET SET
