Запчасти Bobcat 442 OPERATORS CAB WITH SEALS - GLASS MAIN FRAME

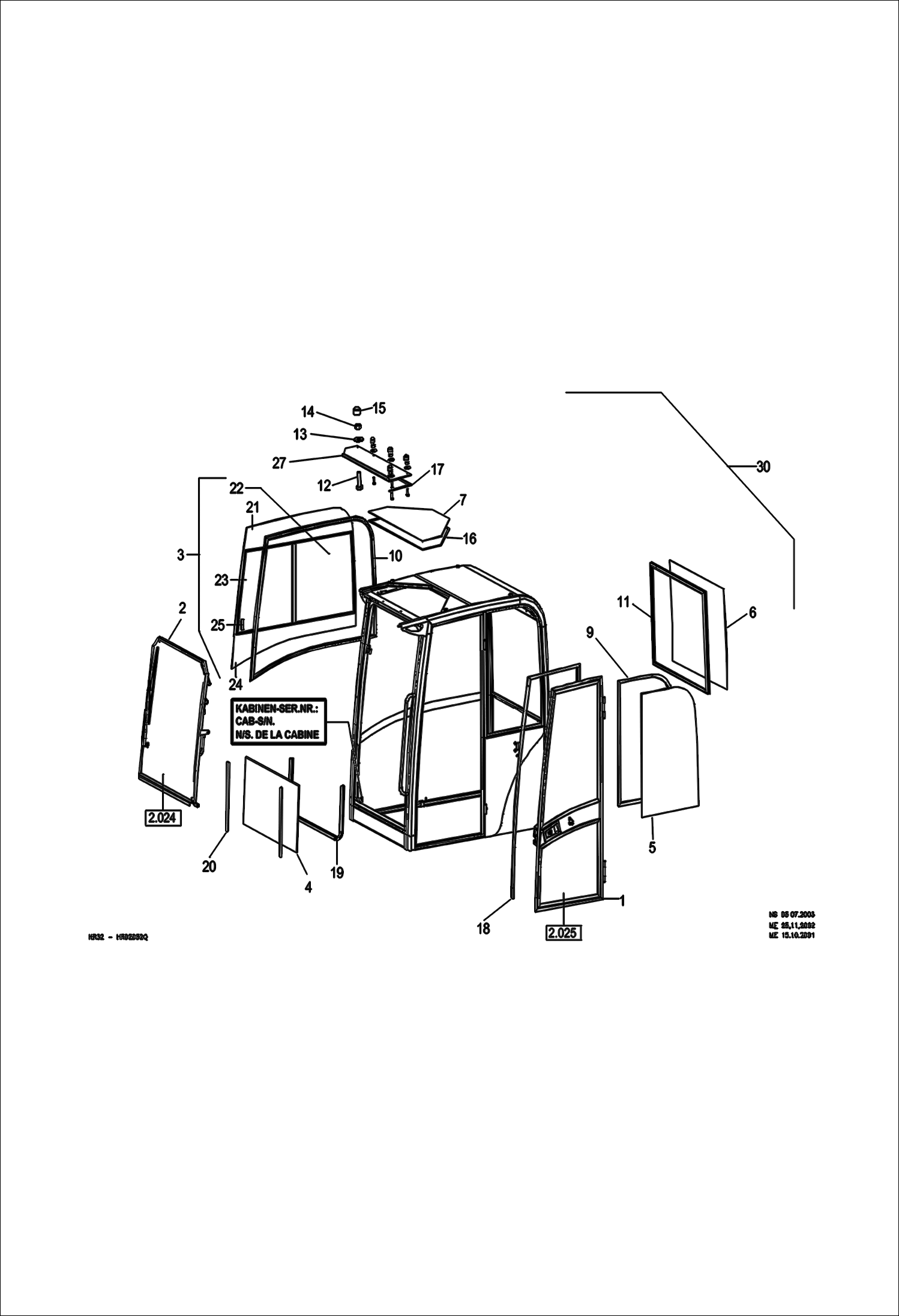

Схема запчастей Bobcat 442 - OPERATORS CAB WITH SEALS - GLASS MAIN FRAME

Артикул

Название

Примечание

Количество

1

5388665149

DOOR CMPL See Illustration OPERATORS CAB WITH SEALS - DOOR/ HR02064Z - Was 5388662916 - A

2

5388662917

ROLLER PANE See Illustration OPERATORS CAB WITH SEALS - ROLLER PANE/ HR02064Y

3

5103660536

SLIDING WINDOW W/Ref. 21-25 - Was 5388662918 - A

4

5103661337

WINDOW, CAB FRONT Was 5388662878 - A

5

5103661346

PANE Was 5388662919 - A

6

5388662920

WINDOW, CAB REAR

7

5103661360

PANE Was 5388662921 - A

9

5388662922

SEAL

10

5388662923

SEAL

11

5388662924

SEAL

12

5388662776

BOLT

13

1307707012

WASHER Was 5388662925 - A

14

5388662786

LOCK NUT

15

5388662926

CAP

16

5388662927

SEAL 10 x 5 x 2230

17

5388662928

SEAL 10 x 3 x 1100

18

5388662929

SEAL 3600 mm

19

5388662930

SEAL

20

5388662931

SEAL 20 x 15 x 470

21

5103660540

WINDOW

22

5103660539

WINDOW

23

5103660538

WINDOW

24

5103660541

WINDOW

25

5103657908

HANDLE

27

5388664045

PANE Circular

30

5388661141

OPERATOR'S CAB CPL. WHITE Standard - Was 5388664024 - A

Выбрано товаров: 26
