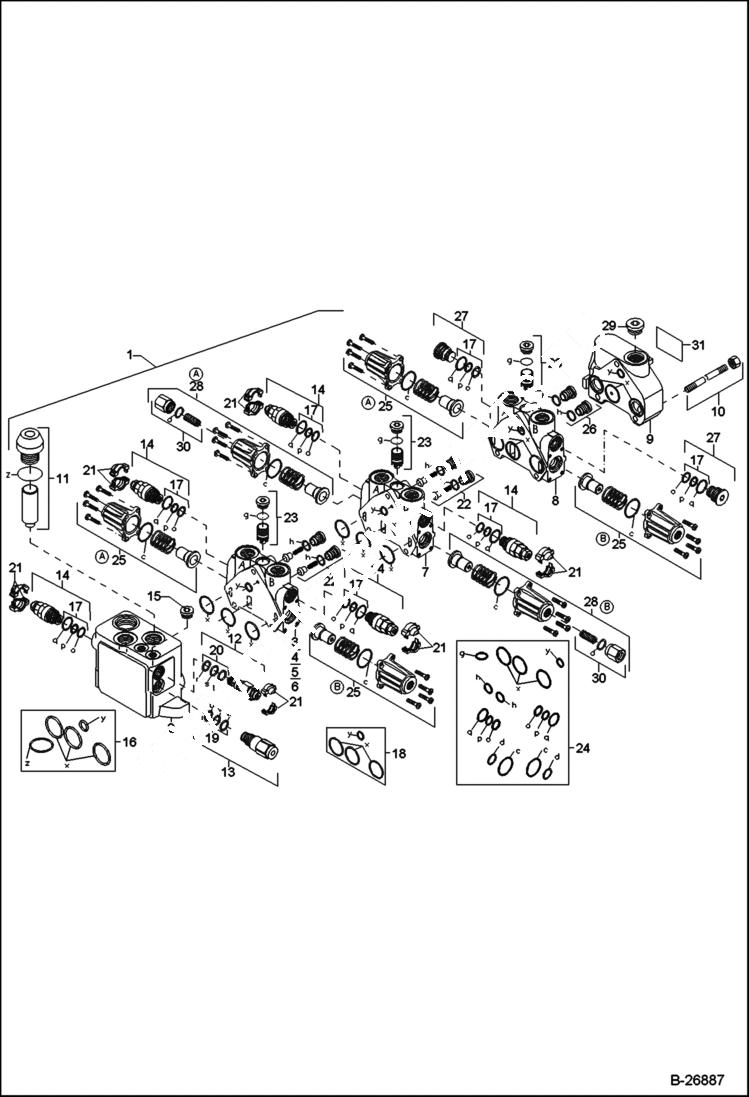

Запчасти Bobcat 442 VALVE BANK HYDRAULIC SYSTEM

1

5606660426

CONTROL VALVE 7 section valve bank - SX14 - circular boom - Includes Ref. 2-10

2

5606664185

INLET ELEMENT W/Refs. 11-21

3

5606664225

VALVE ELEMENT Intermediate Boom - W/Ref. 14, 17, 18 & 21-25

4

5606664226

VALVE ELEMENT Boom - W/Ref. 14, 17, 18 & 21-25

5

5606664227

VALVE ELEMENT Arm - W/Ref. 14, 17, 18 & 21-25

6

5606664228

VALVE ELEMENT Bucket - W/Ref. 14, 17, 18 & 21-25

7

5606664189

DIRECTIONAL VALVE Auxiliary - W/Ref.14, 17, 21-24 & 28

8

5606664229

VALVE ELEMENT Right & Left Travel - W/Ref. 17, 18 & 23-27

9

5606664191

OUTLET ELEMENT W/Ref. 17 & 30

10

5606664230

TIE ROD KIT

11

5606664193

REGULATION KIT

12

5606664212

PRESS RELIEF VALVE

13

5606656829

CURRENT REGULATOR

14

5606664224

PRESSURE RELIEF VALVE

15

5606664383

PLUG

16

5606664196

SEAL KIT inlet section

17

5606664223

SEAL KIT

18

5606664198

SEAL KIT between work section

19

5606664199

SEAL KIT

20

5606664336

SEAL KIT

21

5606664184

LOCKING COVER

22

5606664201

CHECK VALVE

23

5606664202

PRESS COMPENSATOR

24

5606664203

SEAL KIT seals one work section

25

5606664204

HYD OPERATION KIT

25

5606664593

CAP

25

5520609144

O-RING

26

5606664205

CHECK VALVE

27

5606656769

VALVE TAPER

28

5606664206

HYD OPERATION KIT

29

5606664207

PLUG

30

5606664368

STROKE LIMITER KIT

31

NAME PLATE NSS
