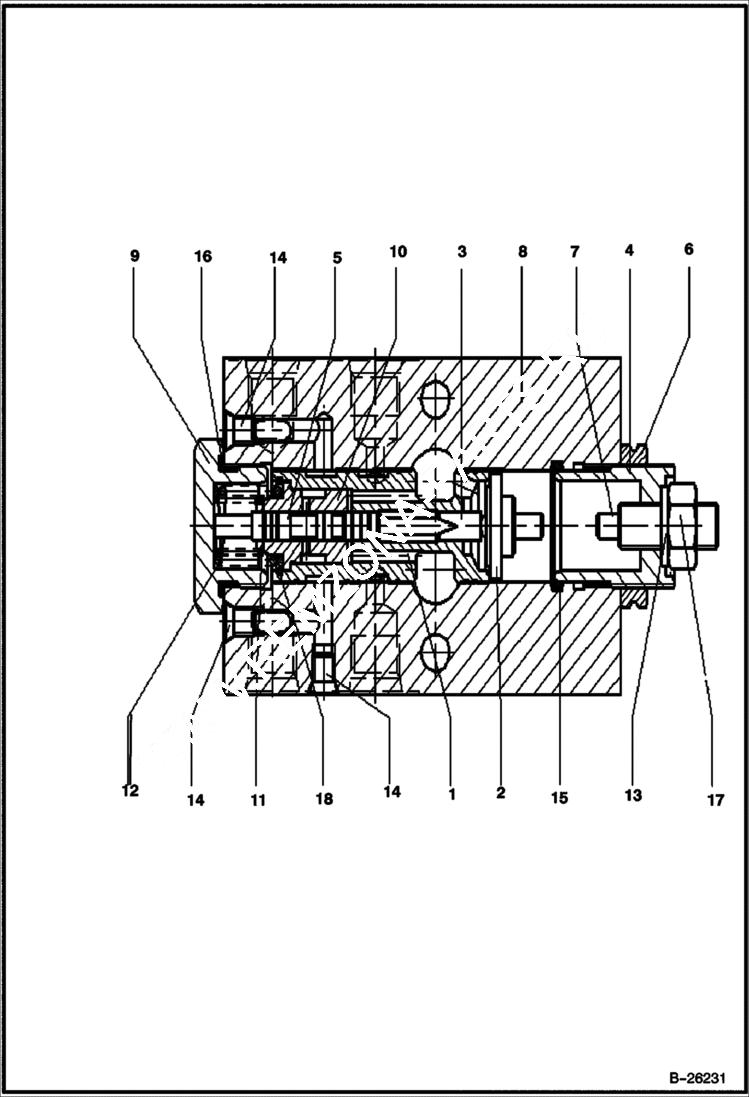

Запчасти Bobcat 442 CONTROL VALVE HYDRAULIC SYSTEM

1

HOUSING NSS

2

SPRING COLLAR NSS

3

CONTROL PISTON NSS

4

ADJUSTMENT BOLT NSS

5

CONTROL PISTON NSS

6

NUT NSS

7

THREADED PIN NSS

8

NSS

9

PLUG NSS

10

PISTON GUIDE NSS

11

SPRING NSS

12

SPRING NSS

13

NSS

14

MACHINE PLUG NSS

15

O-RING NSS

16

O-RING NSS

17

NUT NSS

18

RING NSS
