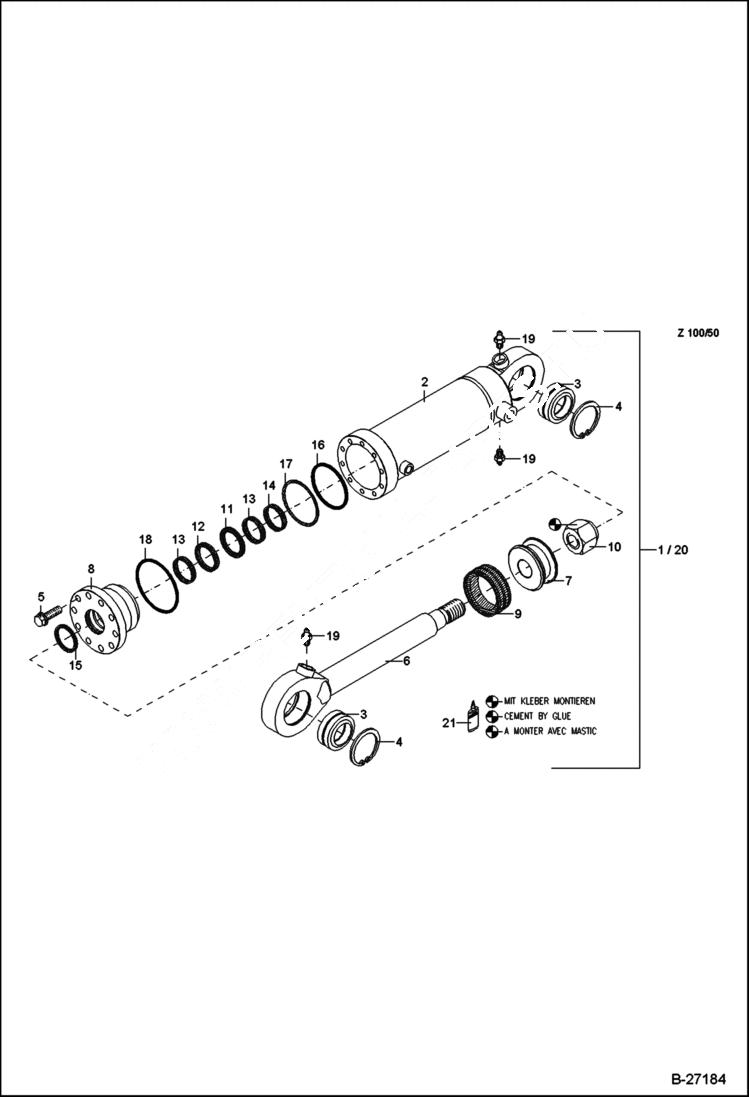

Запчасти Bobcat 442 HYDRAULIC CYLINDER Support Blade HYDRAULIC SYSTEM

1

6500925500

HYDR. CYLINDER Includes Ref. 2-18

2

6500925503

CYLINDER BARREL

3

1950000814

LINKAGE BEARING

4

1456622363

CIRCLIP

5

1017370230

BOLT

6

6500925111

PISTON ROD

7

0500926015

PISTON

8

0500949017

BUSHING

9

1634935018

PISTON SEAL

10

1212251832

NUT

11

1965055050

SEAL

12

1960955050

GROOVE

13

5060501050

ROAD SEAL

14

5060502050

ROD SEAL

15

1974950050

SCRAPER RING

16

1971958513

O-RING

17

1966960100

BACK UP RING

18

1971958513

O-RING

19

1607003006

GREASE NIPPLE

20

1976999279

SEAL KIT Includes Ref. 9-18

21

GLUE NLA - Was MCS001036A - A
