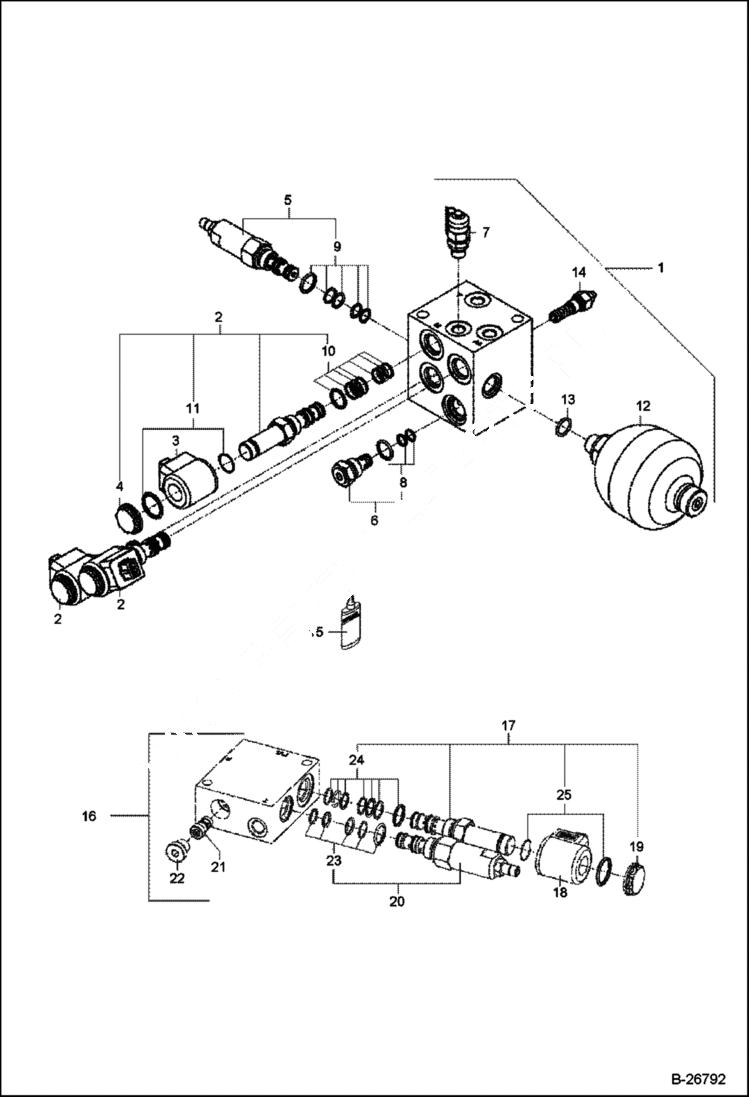

Запчасти Bobcat 442 PILOT-OPERATED VALVE So-Block HYDRAULIC SYSTEM

1

5368632563

VALVE ASSEMBLY W/Ref. 2-13

2

5368655678

SOLENOID ASSY

3

5368655687

COIL

4

5368655692

NUT

5

5368655693

CHECK VALVE

6

5368655694

PRESS RELIEF VALVE

7

5066234000

TEST FITTING

8

5368655695

SEAL KIT

9

5368655696

SEAL KIT

10

5368655697

SEAL KIT

11

5368655698

SEAL KIT

12

5368655699

ACCUMULATOR

13

5368655700

O-RING

14

MOUNTING KIT NSS

15

GLUE NLA - Was MCS001036A - A

16

5368632565

VALVE ASSEMBLY W/Ref. 15-23

17

5368655688

SOLENOID ASMBLY

18

5368655687

COIL

19

5368655692

NUT

20

5368655701

FLOW REGULATOR

21

5368655702

SPOOL

22

5368655703

PLUG

23

5368655696

SEAL KIT

24

5368655697

SEAL KIT

25

5368655698

SEAL KIT
