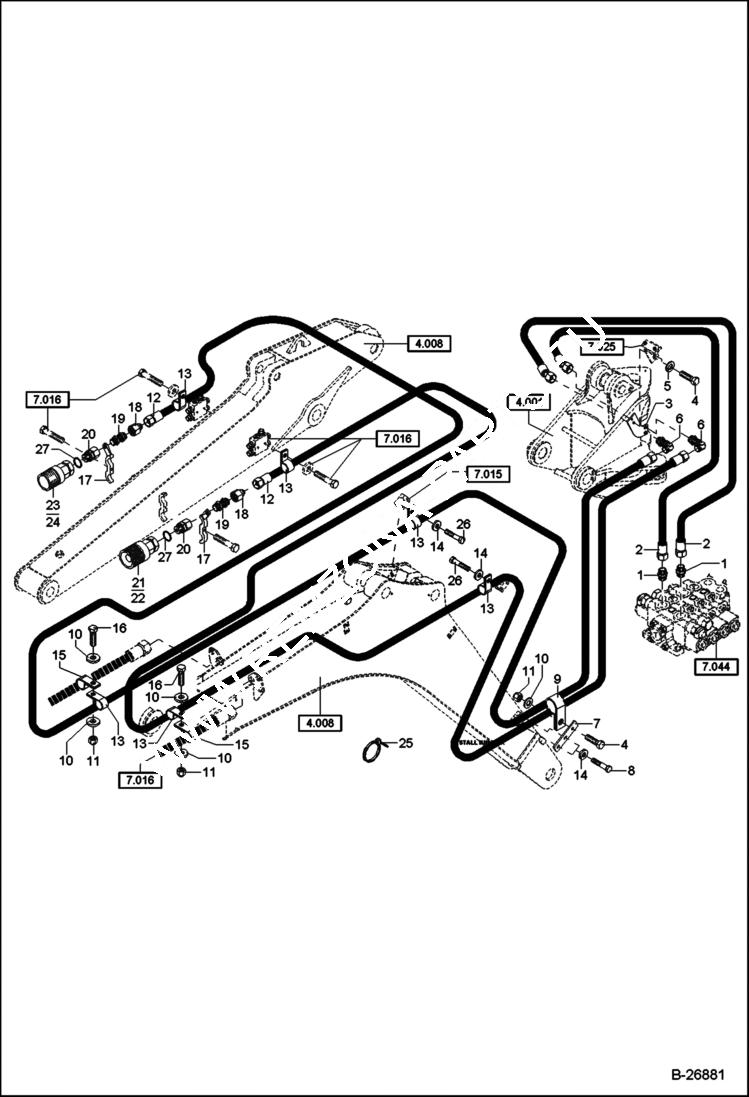

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Additional Circuit Mono HYDRAULIC SYSTEM

1

1915060359

FITTING

2

4158215366

HOSE

3

0190303006

BRACKET

4

1008707018

BOLT

5

1290707018

WASHER

6

1931060152

FITTING

7

0190303007

BRACKET

8

1007707414

BOLT

9

5000210463

HOSE CLIP

10

1343707057

WASHER

11

1212251011

NUT

12

4158565301

HOSE

13

5000095200

HOSE CLIP

14

1343707055

WASHER

15

5000210400

HOSE CLIP

16

1008707318

BOLT

17

6190303010

PIPE CLIP

18

1934060155

FITTING

19

1913060153

FITTING

20

1938060459

FITTING

21

5260301135

COUPLING PLUG

22

5260301139

PLUG

23

5260301130

COUPLING SOCKET W/Ref. 25, 26 & 27

24

5260301137

COVER NUT

25

5350650280

BINDER

26

1008707314

BOLT

27

1970956719

O-RING
