HYDRAULIC INSTALLATION Slew Limitation

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Slew Limitation HYDRAULIC SYSTEM

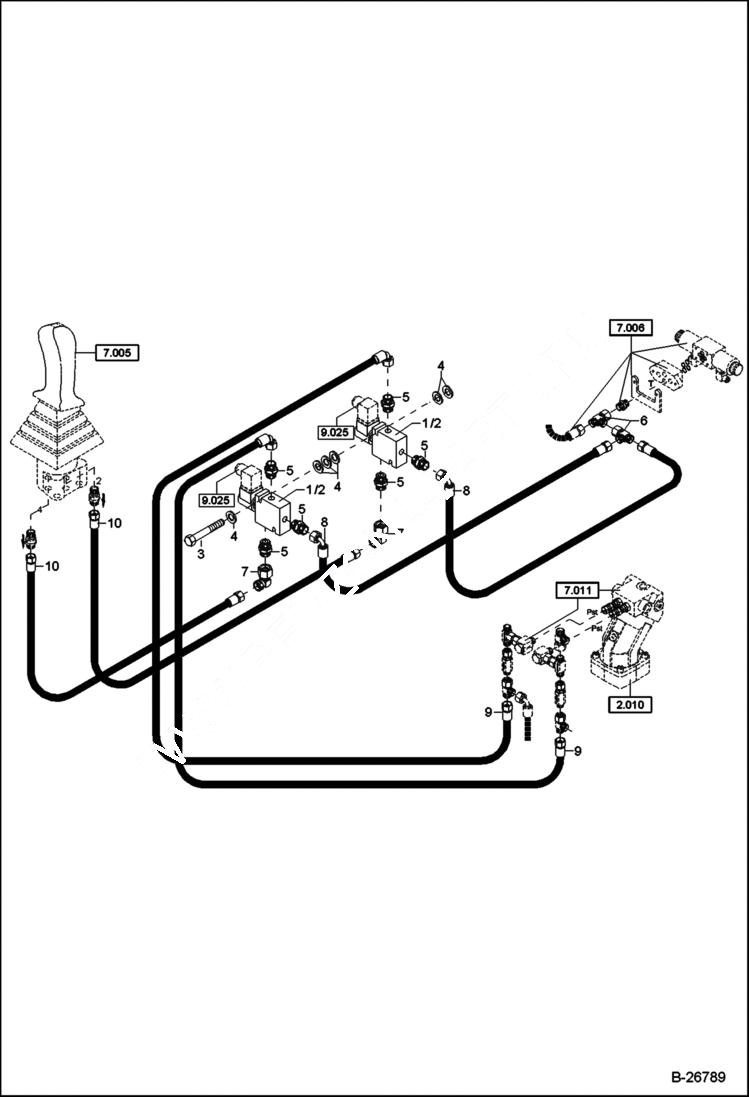

Схема запчастей Bobcat 442 - HYDRAULIC INSTALLATION Slew Limitation HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5320001001

CONTROL VALVE

2

5320001002

SOLENOID CARTRIDGE

3

1008707115

BOLT

4

1343707055

WASHER

5

1915060255

FITTING

6

1919060351

FITTING

7

1924060151

FITTING

8

4256033371

HOSE, HYD Was 4506033351 - A

9

4506140371

HOSE

10

4506400356

HOSE
