HYDRAULIC INSTALLATION Dozer Blade Float Position

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Dozer Blade Float Position HYDRAULIC SYSTEM

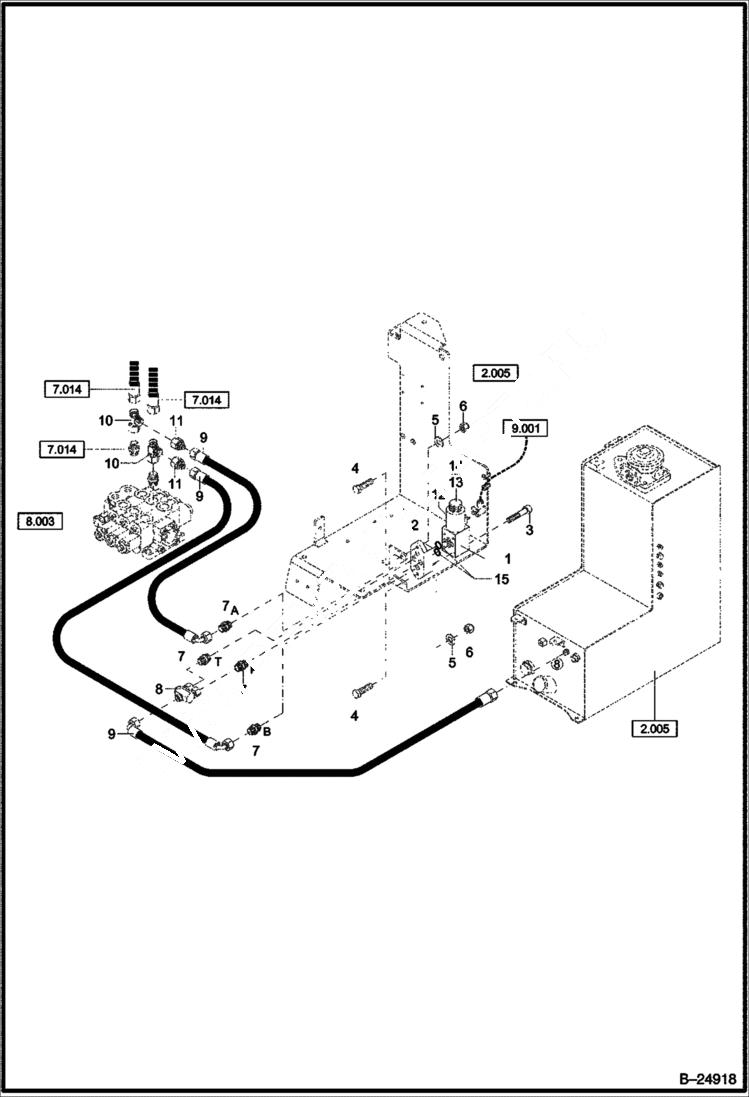

Схема запчастей Bobcat 442 - HYDRAULIC INSTALLATION Dozer Blade Float Position HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5003700002

DIRECT CONTR. VALVE NG06 W/Ref. 12-15

2

5003700003

CONNECTING PLATE

3

1045907011

BOLT

4

1008707513

BOLT

5

1290707014

WASHER

6

1212251009

NUT

7

1915060257

FITTING

8

1919060352

FITTING

9

4158046351

HOSE

10

1919060353

FITTING

11

1934060155

FITTING

12

5003700025

COIL

13

5003700026

NUT W/SEAL

14

1970956810

O-RING

15

5003700027

SEAL KIT
