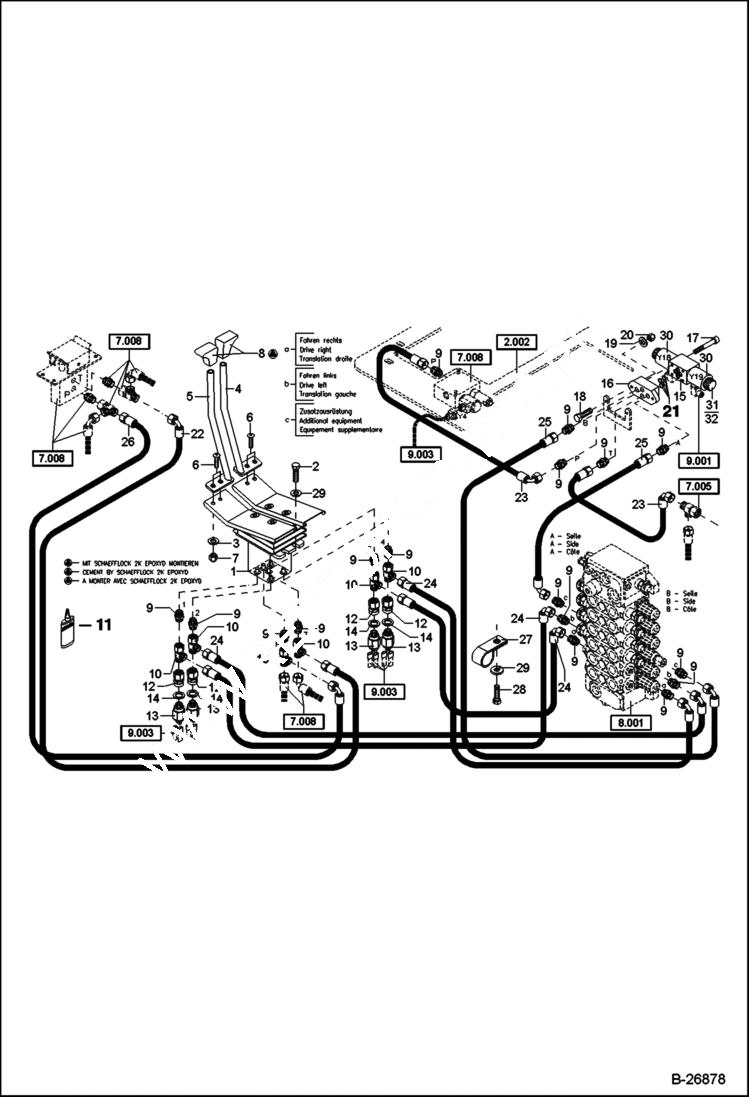

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Pilot Control Travel, Additonal Outlet HYDRAULIC SYSTEM

1

5606658896

PEDAL

2

1008707018

BOLT

3

1290707018

WASHER

4

0216009071

LEVER, TRAVEL RH right

5

0216009070

LEVER, TRAVEL LH left

6

1069020018

BOLT

7

1212251011

NUT

8

1576000512

HANDLE

9

1915060255

FITTING

10

1919060351

FITTING

11

MCS001040A

GLUE

12

1943000101

CONNECTION

13

5050143175

PRESSURE SWITCH

14

1636815155

SEAL RING

15

5003700001

DIRECT CONTR. VALVE W/Ref. 30 - 33

16

5003700003

CONNECTING PLATE

17

1045907011

BOLT

18

1008707513

BOLT

19

1290707014

WASHER

20

1212251009

NUT

21

5003700027

SEAL KIT

22

4506040351

HOSE

23

4506140371

HOSE

24

4506270371

HOSE

25

4506180351

HOSE

26

4256033371

HOSE, HYD Was 4506033351 - A

27

5000210462

HOSE CLIP

28

1008707817

BOLT

29

1343707057

WASHER

30

5003700025

COIL

31

5003700026

NUT W/SEAL W/Ref. 32

32

1970956810

O-RING
