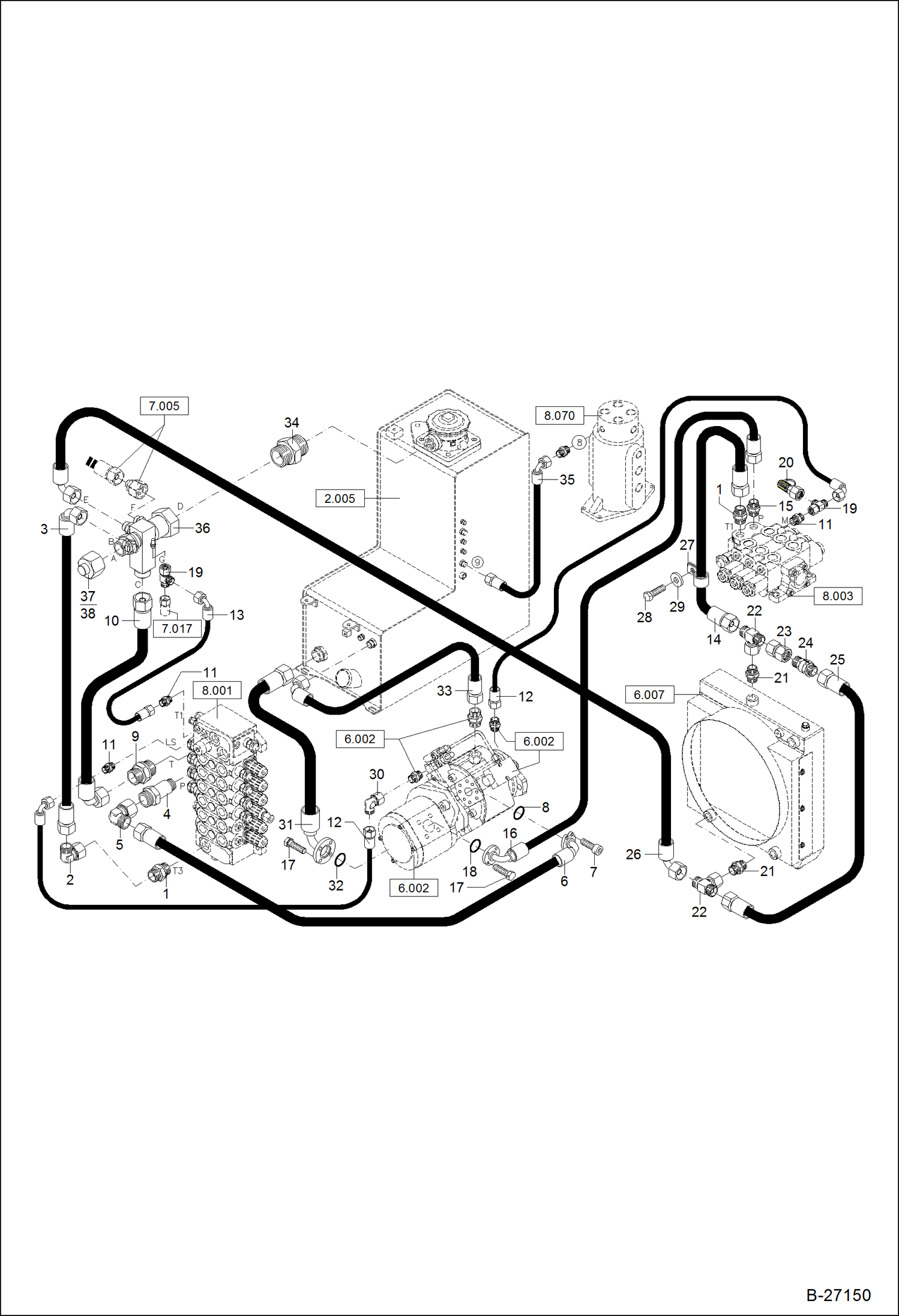

Запчасти Bobcat 442 HYDRAULIC INSTALLATION Circulation HYDRAULIC SYSTEM

1

1915060266

FITTING

2

1924060156

ELBOW FITTING

3

4120129156

HOSE

4

0254009005

FITTING

5

1924060256

ELBOW FITTING

6

4470149888

HOSE W/Ref. 8

7

1045707098

BOLT

8

1971956315

O-RING

9

1915060469

FITTING

10

4132066226

HOSE PIPE

11

1915060255

FITTING

12

4256131371

HOSE

13

4506085351

HOSE

14

4120265409

HOSE

15

1915060478

FITTING

16

4466096114

HOSE W/Ref. 18

17

1008707618

BOLT

18

1971956318

O-RING

19

1919060351

FITTING

20

5066234200

METER CONNECTION

21

1915060567

FITTING

22

1919060156

FITTING

23

1915060162

FITTING

24

1915991757

CHECK VALVE

25

4120110189

HOSE

26

4120204156

HOSE

27

5000210463

HOSE CLIP

28

1008707018

BOLT

29

1343707057

WASHER

30

1924060151

FITTING

31

4132090115

HOSE W/Ref. 32

32

1971956322

O-RING

33

4116063156

HOSE

34

1915060369

FITTING

35

4110080374

HOSE

36

5260310204

RETURN LINE COLLEC includes check valve (not sold separately)

36

5260310203

REPAIR KIT

37

1912060361

PLUG

38

1911060161

UNION NUT
