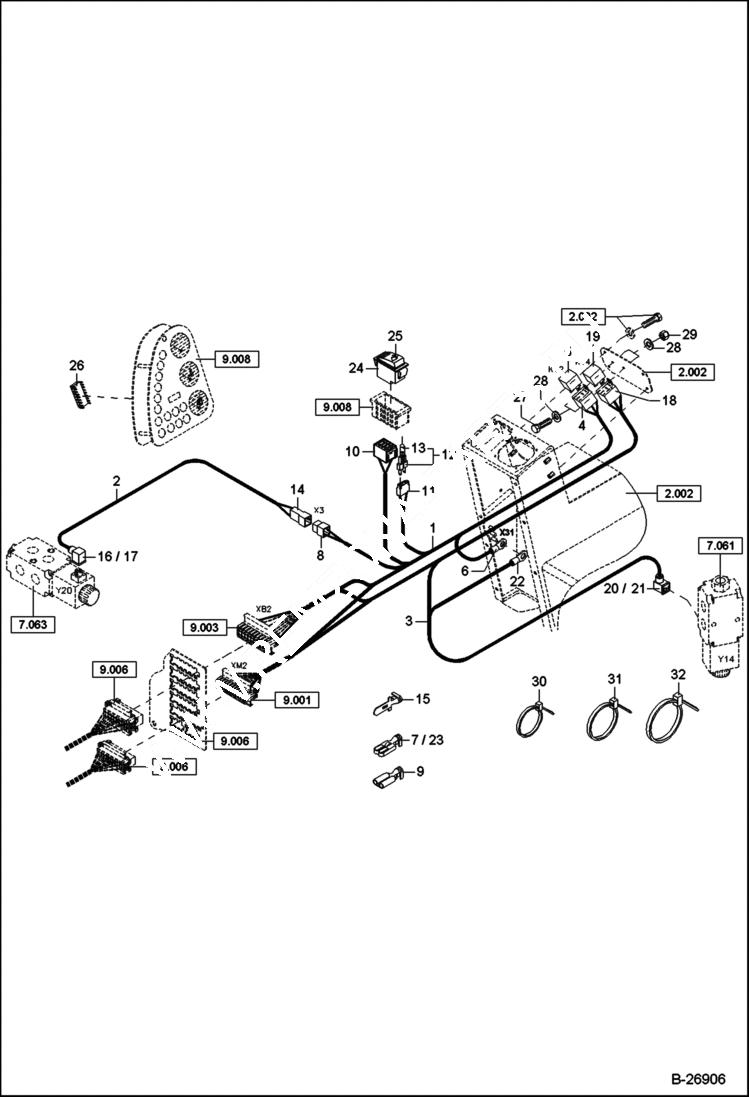

Запчасти Bobcat 442 ELECTRIC INSTALLATION 3rd & 4th Additional Circuit Mono Boom ELECTRICAL SYSTEM

1

0234306021

HARNESS, RELAY SWITCH W/Ref. 4-13

2

0234306022

HARNESS, RELAY SWITCH W/Ref. 14-17

3

0234306023

HARNESS, RELAY SWITCH W/Ref. 18-23

4

5050093090

RELAY BRACKET

5

5050247335

RELAY

6

5350246610

CABLE CONNECTOR

7

5350249552

CONNECTOR

8

5350249513

PLUG

9

5350246805

TERMINAL FEMALE

10

5050650231

HOUSING

11

5050650225

HOUSING

12

5050650226

LAMP W/Ref. 13

13

1813000021

ROUND BULB

14

5350249534

FLAT PLUG

15

5350247311

TERMINAL MALE

16

5552659550

BOX W/Ref. 17

17

5552659513

SEAL

18

5050093090

RELAY BRACKET

19

5050247335

RELAY

20

5552659550

BOX W/Ref. 21

21

5552659513

SEAL

22

5350246610

CABLE CONNECTOR

23

5350249552

CONNECTOR

24

5578651578

SWITCH, TOGGLE

25

5358650288

SYMBOL

26

E-PROM NSS

27

1008707909

BOLT

28

1290707012

WASHER

29

1212251007

NUT

30

5350650294

BINDER

31

5653093560

BINDER

32

5350650280

BINDER
