Запчасти Bobcat 442 SEAT CONSOLE MAIN FRAME

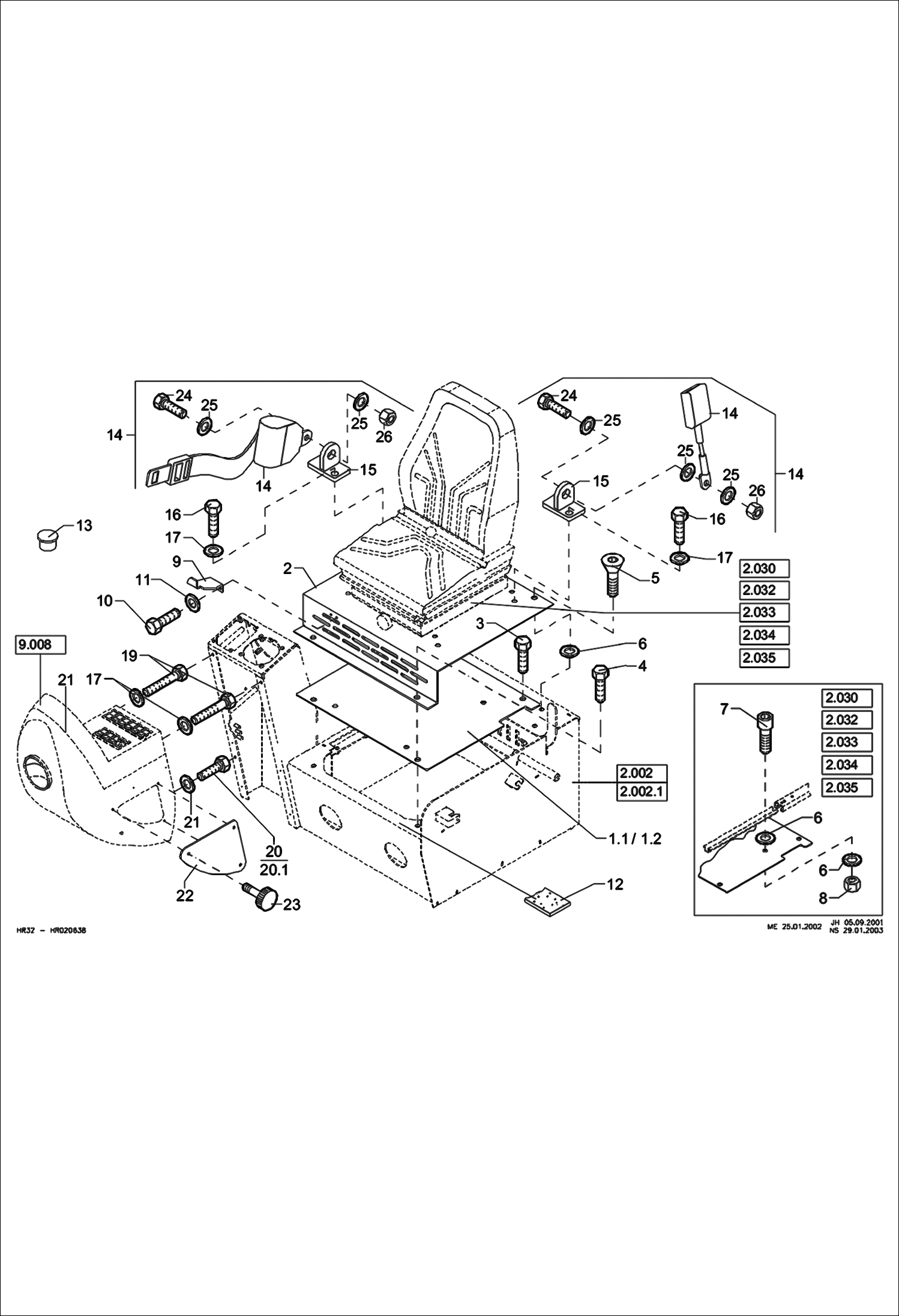

Схема запчастей Bobcat 442 - SEAT CONSOLE MAIN FRAME

Артикул

Название

Примечание

Количество

1

6190116005

SEAT CONSOLE

1

SEAT CONSOLE NLA - Order Ref. 1 (6190116005) - Was 6190117001 - A

2

6188827095

SEAT CONSOLE

3

1008707318

BOLT

4

1008707018

BOLT

5

1062707018

BOLT

6

1307707018

WASHER

7

1045707018

BOLT

8

1212251011

NUT

9

6188915005

BRACKET

10

1008707912

BOLT

11

1343707055

WASHER

12

5354640125

NEOPRENE STRIP Bulk - Sold Per Foot

13

1980930494

PLUG

14

5305639665

SEAT BELT ASSY Includes Refs. 24-26

15

6190267005

MOUNT

16

1008707318

BOLT

17

1290707018

WASHER

19

1045707121

BOLT

20

1045707618

BOLT

20

1045707121

BOLT

21

5821662100

HOUSING

22

5821662136

COVER

23

5821662038

KNURLED BOLT

24

BOLT NSS - Order Ref. 14

25

WASHER NSS - Order Ref. 14

26

NUT NSS - Order Ref. 14

Выбрано товаров: 27
