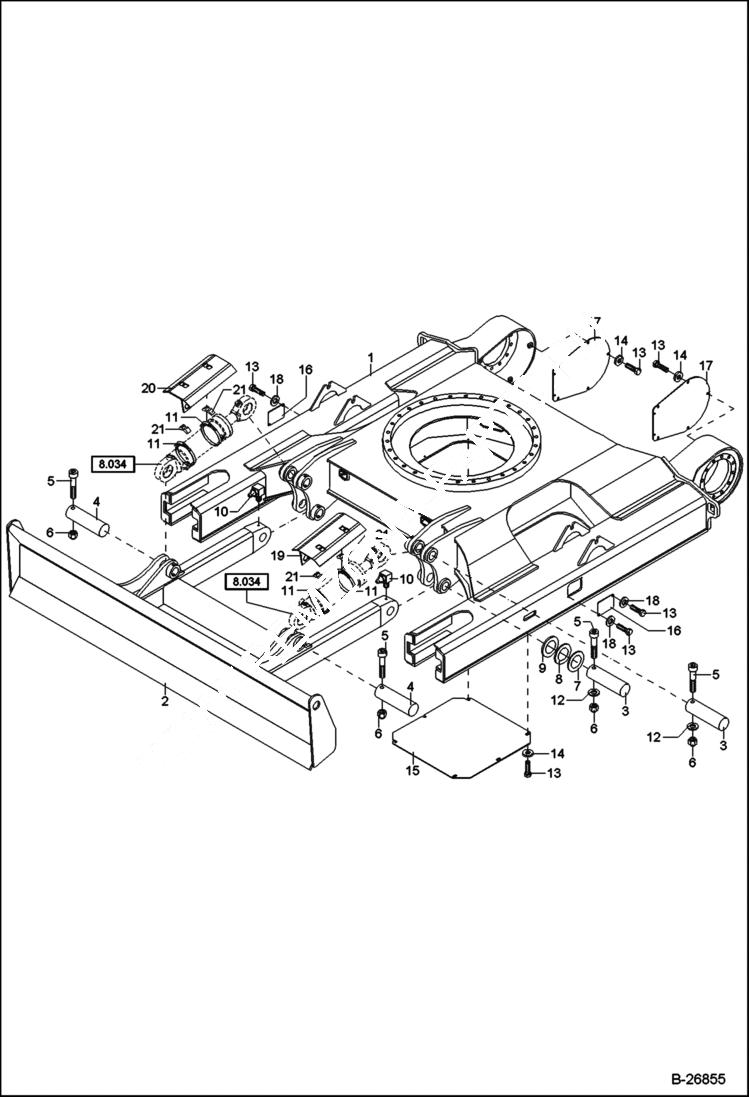

Запчасти Bobcat 442 UNDER CARRIAGE Support Blade, Cover UNDERCARRIAGE

1

6190001005

UNDERCARRIAGE

2

0190002030

SUPPORT BLADE 2330mm

2

0190319002

SUPPORT BLADE 2480mm

2

0190315002

SUPPORT BLADE

3

0205209020

PIN

4

0205209021

PIN

5

1045707631

BOLT

6

1212251014

NUT

7

0194019227

WASHER

8

0194019025

WASHER

9

0194002226

WASHER

10

1608003010

GREASE NIPPLE

11

5660095400

HOSE CLIP

12

1290707022

WASHER

13

1008707018

BOLT

14

1343707057

WASHER

15

6190002011

COVER

16

6189602020

COVER RUNNING WHEE

17

6190002010

COVER

18

1290707018

WASHER

19

0190002055

SHIELD Left

20

0190002051

PROTECTION Right

21

0110012050

RUBBER LAYER
