Запчасти Bobcat 442 ENGINE HOOD (S/N 522311360 & Above) MAIN FRAME

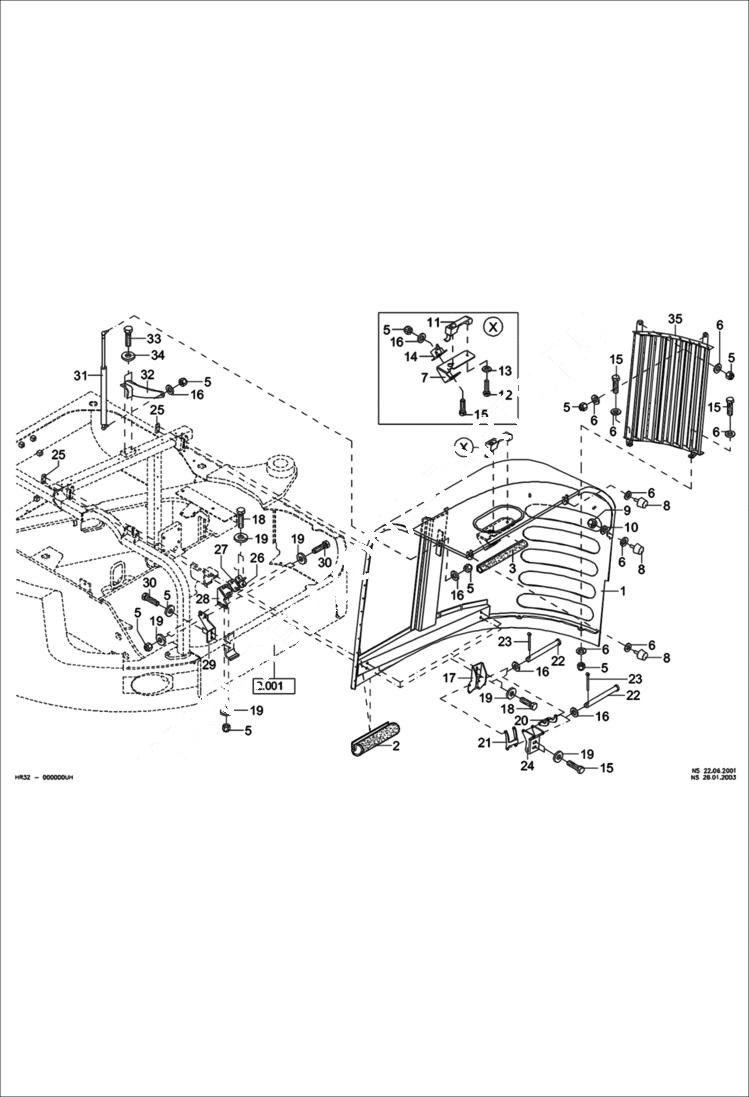

Схема запчастей Bobcat 442 - ENGINE HOOD (S/N 522311360 & Above) MAIN FRAME

Артикул

Название

Примечание

Количество

1

COVER, HOOD REAR NLA - Use 5529020058 - Was 0190028105 - A

2

7025098

SEAL, BULK/MTR - A

3

7024438

SEAL - A

5

1212251011

NUT

6

1307707018

WASHER

7

6190028137

BRACKET

8

5101290955

STOP

9

1212251009

NUT

10

1307707014

WASHER

11

5354604442

PLASTIC HANDLE

12

1008707712

BOLT

13

1290707014

WASHER

14

5354604335

HOOD LATCH

15

1008707018

BOLT

16

1290707018

WASHER

17

6190028023

HINGE

18

1008707318

BOLT

19

1343707057

WASHER

20

6190028024

HINGE right

21

6190028025

HINGE left

22

1360707139

PIN

23

1395707017

COTTER PIN

24

6190028022

HINGE

25

0190028163

MOUNT

26

5354604338

COTTER

27

6176028067

FLAP

28

6190028011

ANGLE PLATE

29

6202528115

BRACKET

30

1008707618

BOLT

31

5696636604

GAS PRESSURE SPRING Was 5696636295 - A

32

BRACKET NLA - Was 6190028065 - A

33

1008707923

BOLT

34

1343707059

WASHER

35

6190028083

GRID

Выбрано товаров: 34
