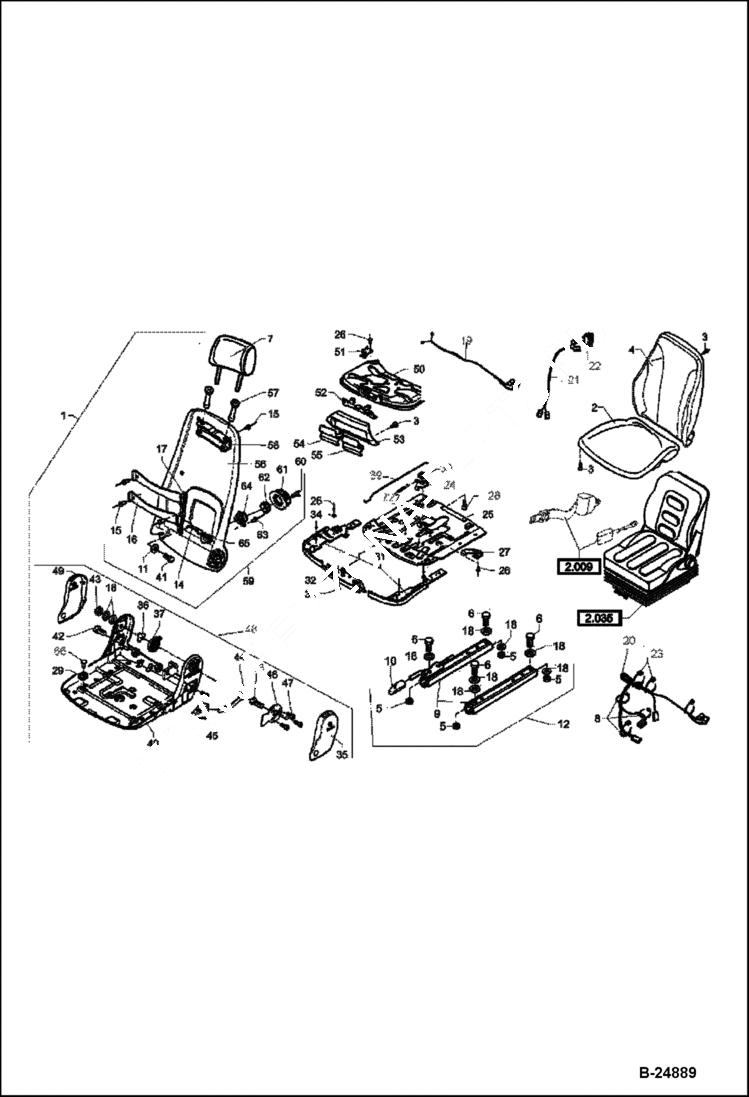

Запчасти Bobcat 442 OPERATORS SEAT W/Heating MSG 95 MAIN FRAME

2

5305670202

PAD, SEAT W/Ref. 3

3

5305670026

BOLT

4

5305670201

PAD, BACKREST W/Ref. 3

5

1210707011

NUT

6

1008707817

BOLT

7

5305670101

HEADREST

8

5305670203

TIE STRAP

9

5305670204

ADJUSTABLE RAIL W/Ref. 10

10

5305670190

HANDLE

11

5305670104

WASHER

12

5305670191

MOUNTING PARTS Ref. 5, 6, 11 & 18

13

5305670152

BOLT

14

5305670206

ROD

15

5305670134

RIVET

16

5305670207

PLATE

17

5305670208

BRACKET

18

5305670200

WASHER

19

0190117010

WIRE HARNESS

20

5305670223

WIRE HARNESS

21

5305670222

WIRE HARNESS

22

5305670096

SWITCH FLIP

23

5305670220

TIE STRAP

24

5305670195

LEVER W/Ref. 28, 30 & 38

25

5305670137

PLATE W/Ref. 26, 27 & 32

26

5305670138

RIVET

27

5305670139

SUSPENSION PLATE

28

5305670157

BOLT

29

5305670140

SLIDING BLOCK

30

5305670156

RING

31

5305670141

COVER W/Ref. 26 & 34

32

5305670032

HANDLE W/Ref. 33

33

5305670142

RIVET

34

5305670209

WASHER

35

5305670280

COVER

36

5305670143

BEARING

37

5305670034

SPRING W/Ref. 26, 27 & 32

38

5305670043

SPRING

39

5305670155

ROD

40

5305670144

SEAT PLATE ASSY W/Ref. 29 & 66

41

1008707019

BOLT

42

1008707318

BOLT

43

1212251011

NUT

44

5305670035

LEVER

45

5305670036

HANDLE

46

5305670037

ADAPTER PLATE

47

5305670038

BOLT

48

5305670154

MOUNTING PARTS BACKR Includes Ref. 11, 13, 36, 37 & 41-47

49

5305670282

COVER RIGHT

50

5305670145

ROCKER CPL W/Ref. 3 & 51

51

5305670146

SUSPENSION PLATE W/Ref. 26

52

5305670040

LEVER W/Ref. 14-17 & 61-65

53

5305670147

COVER W/Ref. 3

54

5305670041

HANDLE W/Ref. 51

55

5305670042

HANDLE

56

5305670194

BACK REST W/Ref. 15, 63

57

5305670149

SLEEVE

58

5305670150

BRACKET

59

5305670211

BACK SUPPORT ASSY W/Ref. 14, 15 & 61-65

60

1045707512

BOLT

61

5305670212

HANDLE CPL W/Ref. 60

62

5305670213

PINION

63

5305670214

RIVET

64

5305670215

BRAKE

65

5305670216

BRACKET

66

5305670153

RIVET
