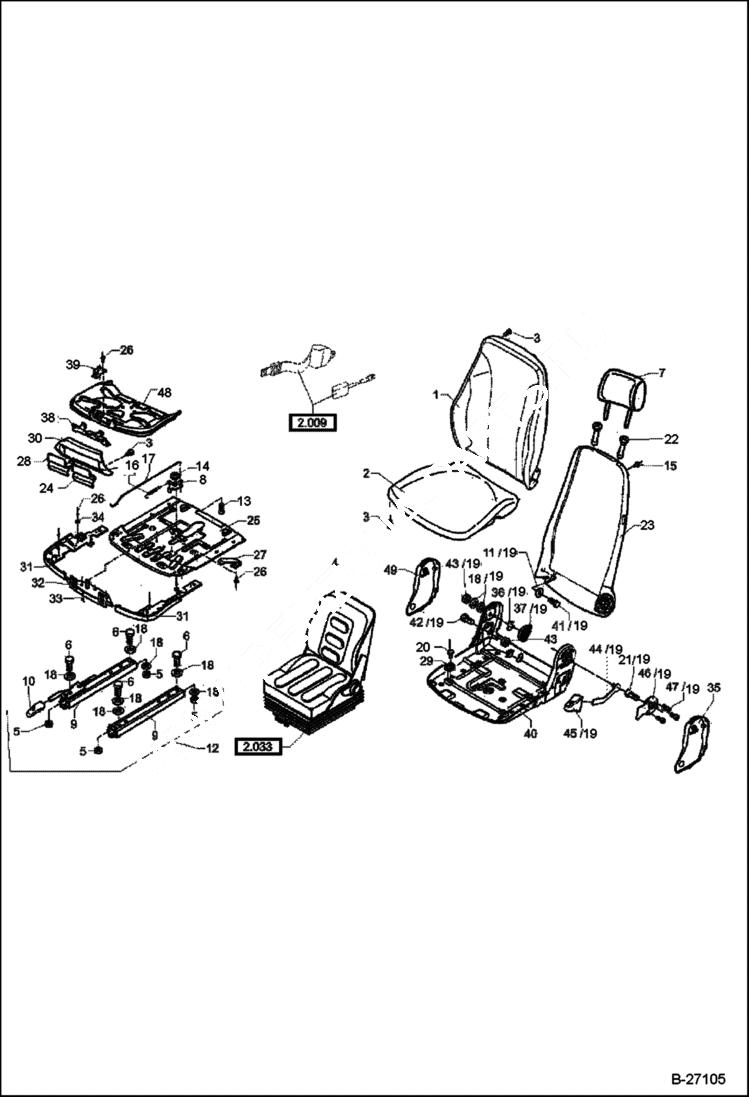

Запчасти Bobcat 442 OPERATORS SEAT MAIN FRAME

1

5305670188

CUSHION BACK REST Includes Ref. 3

2

5305670189

CUSHION SEAT Includes Ref. 3

3

5305670026

BOLT

4

5305661655

OPERATORS SEAT MSG85/7 Also Includes all Ref. on Ill. B24888

5

1210707011

NUT

6

1008707817

BOLT

7

5305670101

HEADREST

8

5305670195

LEVER W/Ref. 13, 14 & 16

9

5305670186

ADJUSTING RAIL Includes Ref. 10

10

5305670190

HANDLE

11

5305670104

WASHER

12

5305670191

MOUNTING PARTS Ref. 5, 6, 11 & 18

13

5305670157

BOLT

14

5305670156

RING

15

5305670134

RIVET

16

5305670043

SPRING

17

5305670155

ROD

18

5305670200

WASHER

19

5305670154

MOUNTING PARTS BACKR Includes Ref. 11, 18, 21, 36, 37, & 41 - 47

20

5305670153

RIVET

21

5305670152

BOLT

22

5305670149

SLEEVE

23

5305670194

BACK REST Includes Ref. 15

24

5305670042

HANDLE

25

5305670137

PLATE Includes Ref. 26, 27, 32

26

5305670138

RIVET

27

5305670139

SUSPENSION PLATE

28

5305670041

HANDLE Includes Ref. 17

29

5305670140

SLIDING BLOCK

30

5305670147

COVER Includes Ref. 3

31

5305670141

COVER Includes Ref. 26 & 34

32

5305670032

HANDLE Includes Ref. 33

33

5305670142

RIVET

34

1307707010

WASHER

35

5305670280

COVER Was 5305670033 - A

36

5305670143

BEARING

37

5305670034

SPRING

38

5305670040

LEVER

39

5305670146

SUSPENSION PLATE Includes Ref. 26

40

5305670144

SEAT PLATE ASSY Includes Ref. 20 & 29

41

1008707019

BOLT

42

1008707318

BOLT

43

1212251011

NUT

44

5305670035

LEVER

45

5305670036

HANDLE

46

5305670037

ADAPTER PLATE

47

5305670038

BOLT

48

5305670193

ROCKER Includes Ref. 3 & 39

49

5305670282

COVER RIGHT Was 5305670039 - A
