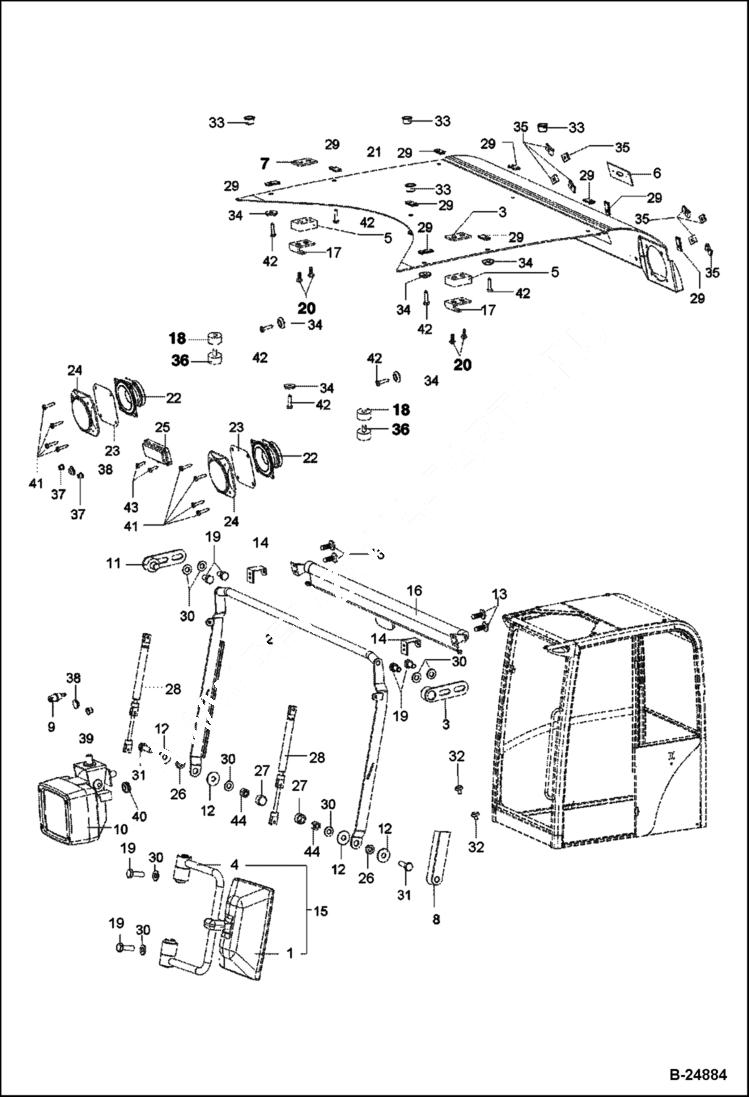

Запчасти Bobcat 442 OPERATORS CAB Cab - 202.042.466 & Above MAIN FRAME

1

5388661484

MIRROR

2

5388665063

FRAME

3

5388665061

HOLDER

4

5388661453

ROD MIRROR

5

5388665165

BLOCK

6

5388665164

PLATE

7

5388665163

PLATE

8

5388665160

PROTECTION COVER

9

5388662108

NOZZLE

10

5350661223

WORKING LIGHT Was 5388660811 - A

10

1813000035

BULB 12volt-55w

11

5388665046

HOLDER

12

1307707018

WASHER

13

5388662880

BOLT

14

5388665043

HOLDER

15

5388662087

MIRROR Includes Ref. 1 & 4

16

5388665044

SUN VISER

17

5388665045

HOLDER

18

5388662777

SPACER RING

19

1008707018

BOLT

20

5388665162

BOLT

21

5388665161

COVERING

22

5388662550

LOUDSPEAKER

23

5388662814

DUST PROTECTION

24

5388662575

LOUDSPEAKER COVER

25

5388662690

INTERIOR LIGHT

26

5388662892

BUSHING

27

5388661422

GUARD CAP

28

5388662572

GAS PRESSURE SPR.

29

5388662515

CLIP

30

1290707018

WASHER

31

5388661452

BOLT

32

5388661482

RUBBER BLOCK

33

5388662323

COVER

34

5388662561

WASHER

35

5388662687

CLIP

36

5388662947

STOP

37

5388662794

CAP

38

5388662057

PLUG

39

5388662649

CAP

40

5388661429

WASHER RUBBER

41

5388662945

BOLT

42

5388662046

BOLT

43

5388662796

BOLT

44

5388662946

NUT
